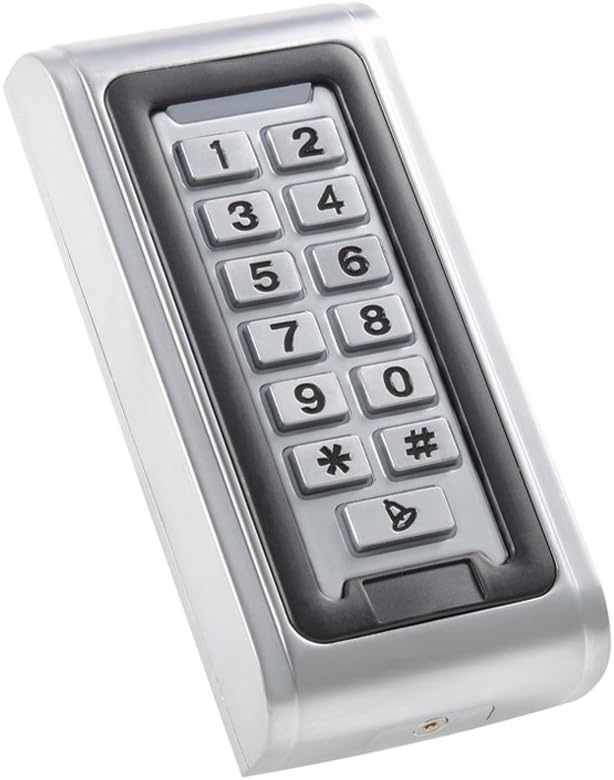

Wiegand 26 bit Outdoor Install Waterproof IP68 Metal Case RFID & Password Keypad Single Door Stand-Alone Access Control
Product details
| Management number | 219295732 | Release Date | 2026/05/03 | List Price | $18.40 | Model Number | 219295732 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package: 1 x Metal Keypad RFID Access Controller 1 x Installation Kit 1 x User Manual Features: Waterproof Degree: IP68 Metal structure design, anti-vandal Digital backlit keyboard Full programming from the keypad User capacity: 2000 card user card, 2000 user password Three way to open the door, card, password, card + password Support Wiegand 26 input from connection to external reader or Wiegand 26 output for connection to a controller Adjustable door output time,alarm time,door open time Very low power consumption (30mA) Fast operationg speed,<20ms with 2000 users Lock output current short circuit protection Easy to install and program Built-in light dependent resistor (LDR) for anti tamper Buili-in buzzer Red,yellow and green LEDs display the working status Specification Details: Operating Voltage : DC 12V User Capacity: 2000 Size: 120(W)x58(H)x22(D) mm Card Reading Distance: 5~8cm Current: <30mA (Standby); <60mA (Active) Lock Output Load: <3A Alarm Output Load: <20A Operation Temperature: -45C~60C Operating Humidity: 10%~90% RH Waterproof: Conforms to IP68 Adjustable Door Relay time: 0~99 seconds Wiegand Interface: Wiegand 26 bit Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK etc) Frequency: 125khz Net Weight: Approx. 371g
- Waterproof Structure strong adaptability, conforms to IP68 degree
- Support 2000 users by Card, PIN Code, Card + PIN Code
- With lock relay output, secure / normal Mode, NO / NC output, Wiegand 26 input/output
- Supports 125Khz EM ID card.
- Stand alone device, with keypad, easy programming.Small and exquisite, Fashionable and Beautiful, Backlit keypad
| UPC | 732130470711 |
|---|---|
| Color | Silver |
| Model | Metal60-Key-1011 |
| Voltage | 12 Volts |
| Brand Name | MENGQI-CONTROL |
| Item Weight | 0.32 Kilograms |
| Part Number | Metal60-Key-1011 |
| Display Type | LED or Digital Backlit Keyboard |
| Manufacturer | SecureControl |
| Material Type | Metal |
| Included Components | Keypad |
| Item Dimensions L x W x H | 4.72"L x 4.72"W x 2.28"H |
