VideoSecu TV Plate for Ceiling Mount for Most 32-65 inch LCD LED Plasma TV, Some Models up to 70 75, fit 1.5-Inch NPT Pipe MPCNM64 WTU

The TV plate for ceiling mount is designed to mount TV on 1-1/2" NPT (National Pipe Thread) pipe. The TV Plate fit most 32-65 inch TV, some models up to 70”, 75”. It can tilt down 12 degrees or up 5 degrees. Post installation level adjustment allows +/-5 degree rotation for perfect level in different view angles. Heavy duty steel construction support screen up to 135 lbs. Supports TV with mounting hole patterns up to 26.3" horizontally, and 16" vertically (VESA 670X400mm). How to ensure the mount compliance with your selected display? First, the weight of your display should be less than 135lbs. Next, mounting holes distance on the rear of TV must be less than 26.3" (670mm) horizontally and 16" (400mm) vertically. Last, Your TV should be at least 33 inch. Otherwise, you will see the bracket.

• For most 32 to 65" screen size LCD or LED TV (Please check weight and VESA)
• Designed for 1.5" NPT pipe mount; Tilt 12 degrees forward or 5 degrees backward
• Solid toughened steel construction, Max Load Capacity: 135lbs
• Fit VESA mounting pattern : 600x400 500x300 400 x 400 400x300 400x200 300x300, 300x200 200x200 200x100 100x100 mm

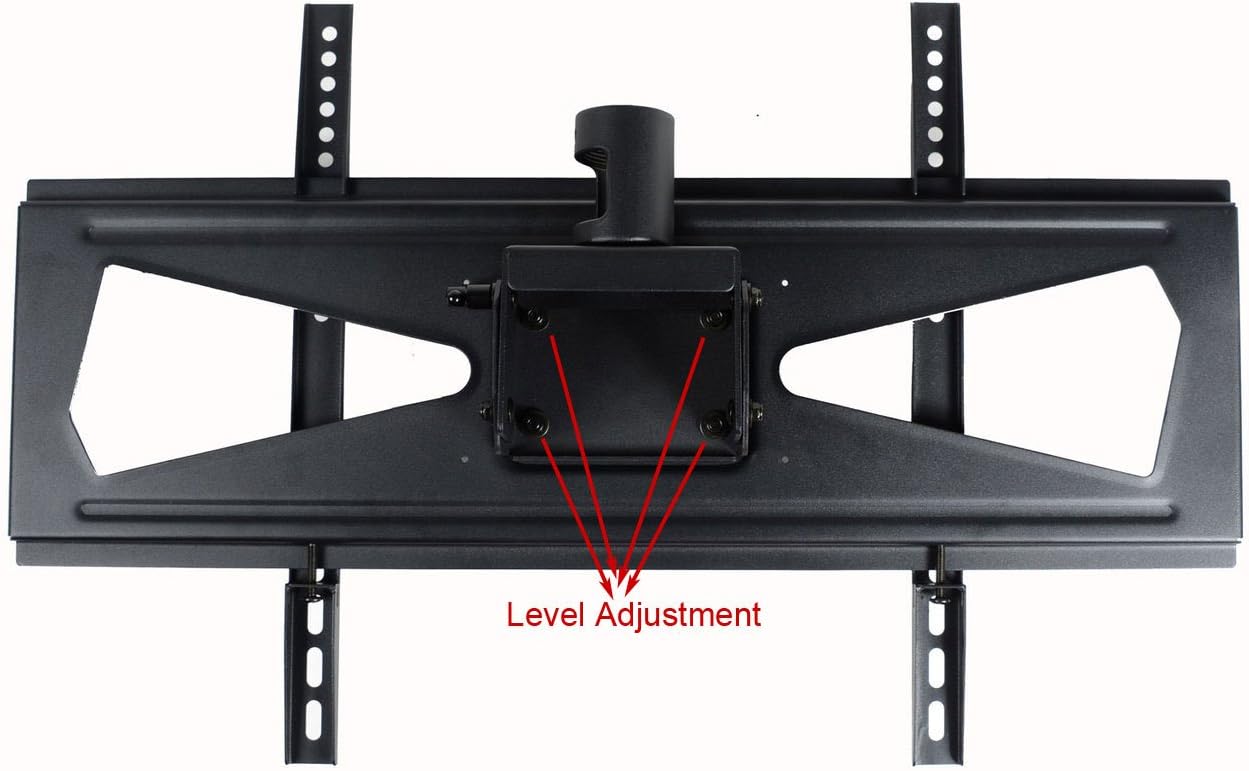

• Post-installation level adjustment allows the TV to perfectly level
