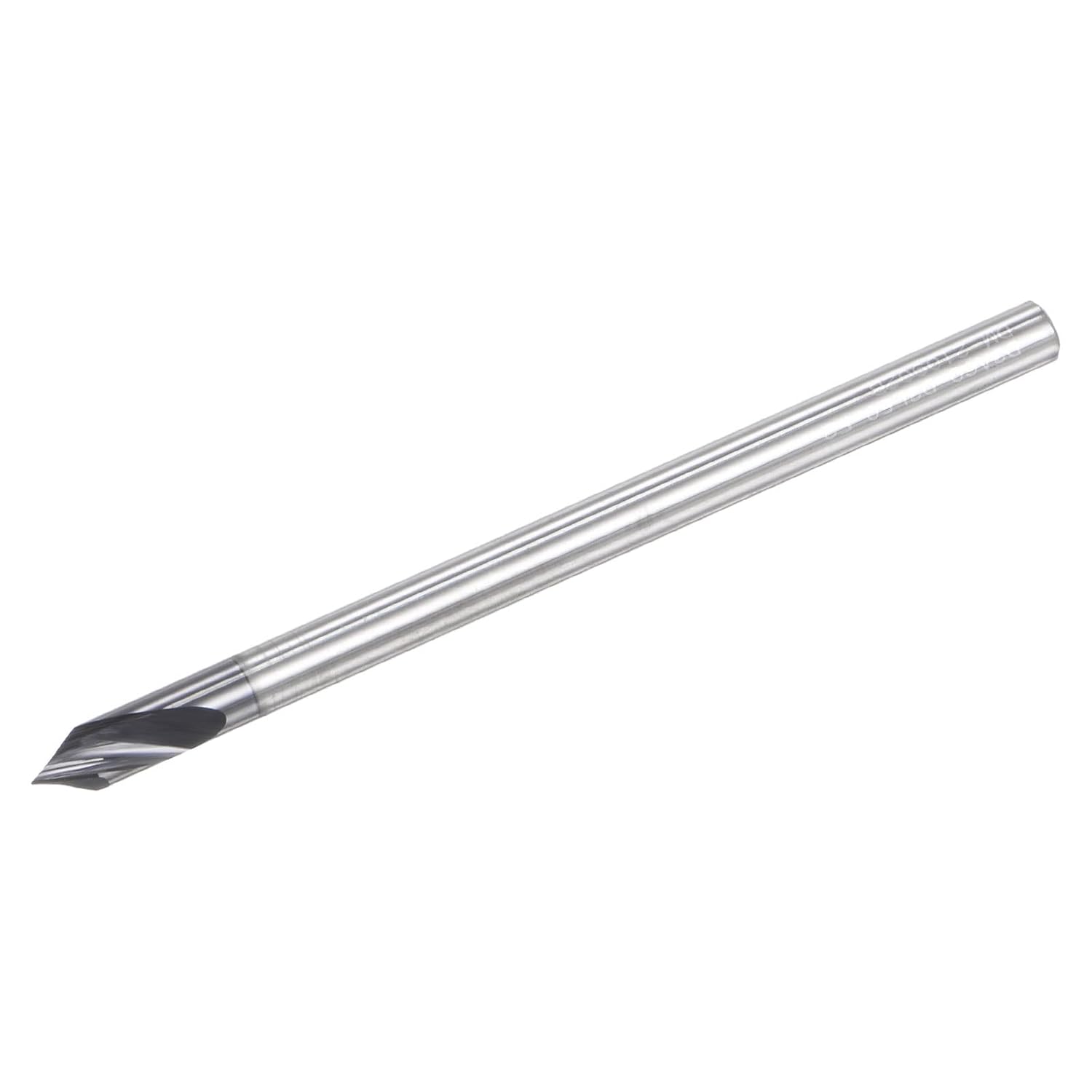

uxcell Spotting Drill Bits 4mm Dia 4mm Shank 60 Degree Solid Carbide AlTiSin Coated 2 Flutes Round Shank Drilling Cutter
Product details
| Management number | 219054749 | Release Date | 2026/05/03 | List Price | $5.24 | Model Number | 219054749 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Cutting Edge Diameter: 4mm / 0.16"Shank Diameter: 4mm / 0.16"Point Angle: 60 DegreeTotal Length : 50mm / 2.0"Material: Tungsten CarbideFinish: AlTiSin CoatedCutting Hardness (Max.): HRC60Number of Flutes: 2 FlutesPackage Included: 1pcs x Spotting Drill BitDescriptions:Made of fine-grained tungsten carbide, the drill bit has good toughness, high hardness (HRC92), wear resistance and heat resistance. With good cutting strength and drilling effect, carbide tool offers long tool life and faster cutting speeds than other substrates.Widely used for drilling steel below HRC60, such as stainless steel, carbon steel, die steel, alloy steel. The AlTiSin composite coating has high hardness, high wear resistance and high thermal stability.Large spiral flutes provide neat and smooth cuts. Spiral groove facilitates the export of metal chip, saving time and effort in operation. Universal chamfered round shank, easier clamping, stable cutting process.Suitable for CNC machining centers, CNC machine tools, precision engraving machines and other equipment. The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life. Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
- Spotting Drill Bits: Cutting Edge Diameter: 4mm / 0.16"; Shank Diameter: 4mm / 0.16"; Point Angle: 60 Degree; Total Length : 50mm / 2.0". Large spiral flutes provide neat and smooth cuts. Spiral groove facilitates the export of metal chip.
- Wide Applications: Widely used for drilling steel below HRC60, such as stainless steel, carbon steel, die steel, alloy steel. The AlTiSin composite coating has high hardness, high wear resistance and high thermal stability.
- Carbide Tool: Made of fine-grained tungsten carbide, the drill bit has good toughness, high hardness (HRC92), wear resistance and heat resistance. With good cutting strength and drilling effect, carbide tool offers long tool life and faster cutting speeds than other substrates.
- Easy to Use: Universal chamfered round shank, easier clamping, stable cutting process. Suitable for CNC machining centers, CNC machine tools, precision engraving machines and other equipment. The longer the length of the tool clamped by the chuck, the better.
- Tips: If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life. Select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
| Model | a22031000ux1232 |
|---|---|
| Brand Name | uxcell |
| Shank Type | Round |
| Unit Count | 1.0 Count |
| Part Number | a22031000ux1232 |
| Finish Types | AlTiSin Coated |
| Manufacturer | uxcell |
| Material Type | Tungsten Carbide |
| Tool Flute Type | Spiral |
| Cutting Diameter | 4 Millimeters |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Cutting Angle String | 60 Degrees |
| Surface Recommendation | Stainless Steel,Alloy Steel,Metal,Steel |
