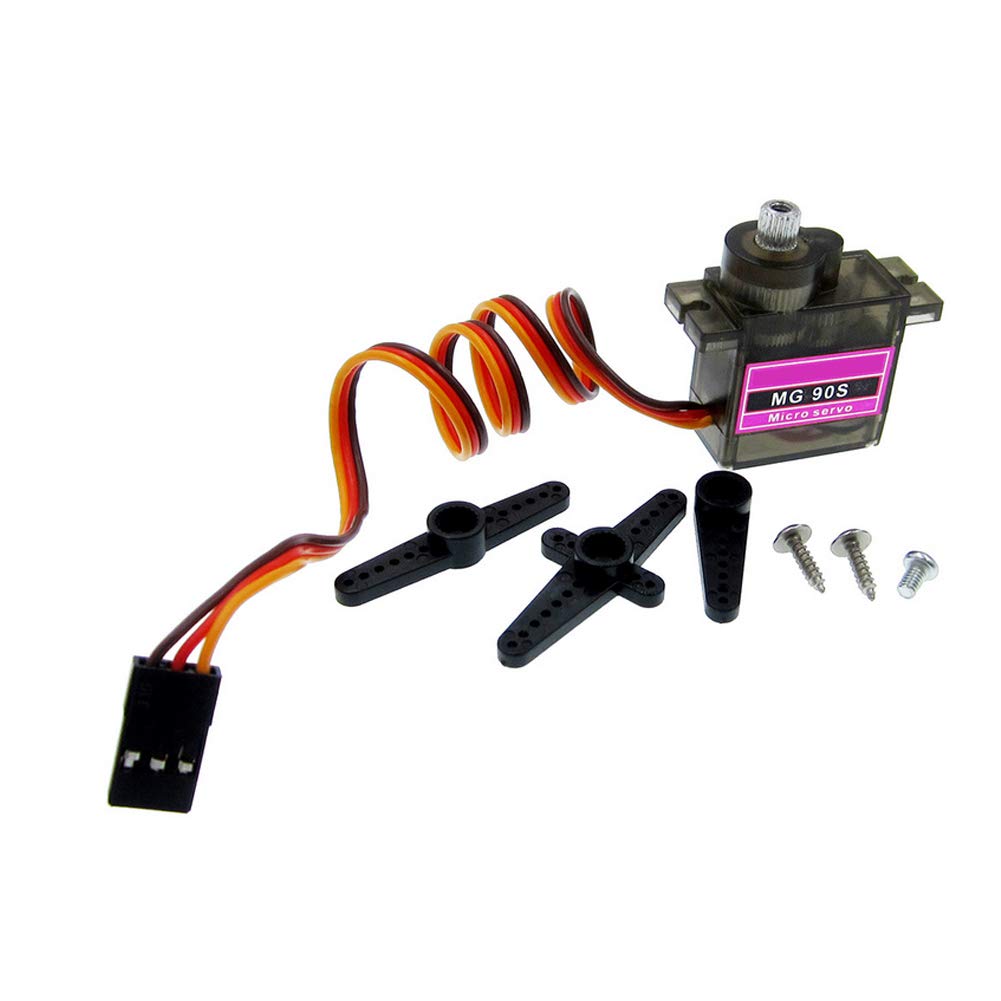

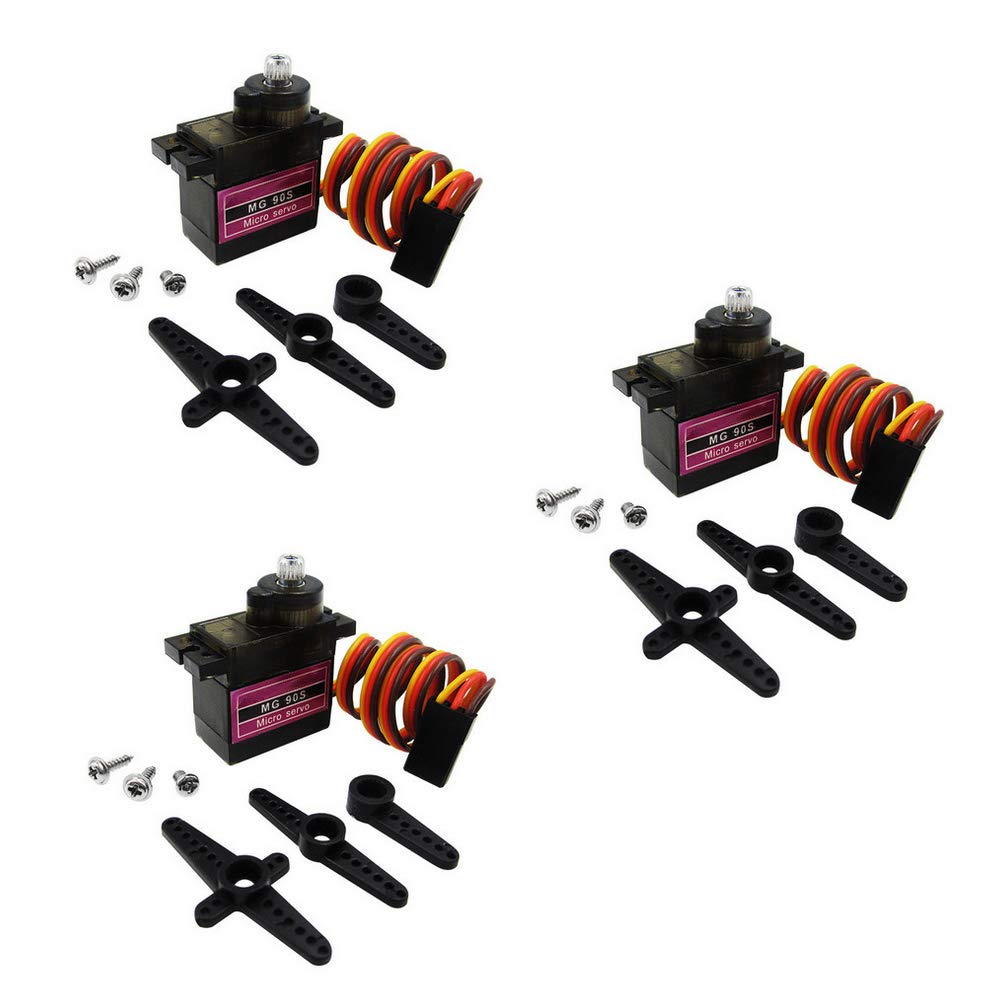

Treedix 3 pcs MG90S 9g Servo Motor Micro Metal Gear Compatible with Robot Boat Car Plane RC Helicopter

Specification： Size: 22.9 x 12.2 x 28.5 mm（0.9*0.48*1.12in） Weight: 12g Operating Temperature: -10~50℃ Operating Voltage：4.8 ~ 6 V Operating Speed（At no load）: 0.12±0.01 seconds / 60 degrees (4.8V); 0.11±0.01 seconds / 60 degrees (6.0V) Running Current（At no load）：220±20mA (4.8V); 250±20mA (6.0V) Stall Torque（At locked）：1.5±0.01kg·cm (4.8V); 1.8±0.01kg·cm (6.0V) Stall Current（At locked）：700±50mA (4.8V); 900±50mA (6.0V) Idle Current（At stopped）：4±1mA(4.8V); 4±1mA (6.0V) Control System：To change the pulse width Amplifier Type：Analog Controller Operating Angle：90±5°（At 1000→2000 μs） Left&Right Travelling Angle Deviation：≤3° Centering Deviation：≤1° Neutral Position：1500 μs Dead Band Width：5 μs Rotating Direction：Counter Clockwise（At 1500→800 μs） Pulse Width Range：800→2200 μs Maximun Travelling Angle：About 145°（At 800→2200 μs） Three Line Definition：Dark grey：GND; Red：VCC 4.8~6V; Yellow：Pulse Input Package included： 3 x MG90S Servo Motor 9 x Rudder disc 9 x Fixing screws

• MG90S micro servo motor is the upgraded version form SG90 servo motor.
• Structural material: Metal copper teeth, hollow cup motor, double ball bearing. Metal Gear with less noise.
• Operating Speed（At no load）: 0.12±0.01 seconds / 60 degrees (4.8V); 0.11±0.01 seconds / 60 degrees (6.0V)
• For all kind of remote contro toys, some electronics DIY project based on Arduino, Raspberry Pi.
• Application：Fixed wing, Aircraft, Ship, Small robot, Mechanical arm and other models.
