Teyleten Robot TMC2209 V2.0 Stepper Motor Driver StepStick 2.5A UART Ultra Silent for Nano SKR V1.3/1.4 Ender 3 Control Board 3D Printer Parts Replace A4988 5pcs
Product details
| Management number | 218144766 | Release Date | 2026/05/03 | List Price | $9.15 | Model Number | 218144766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

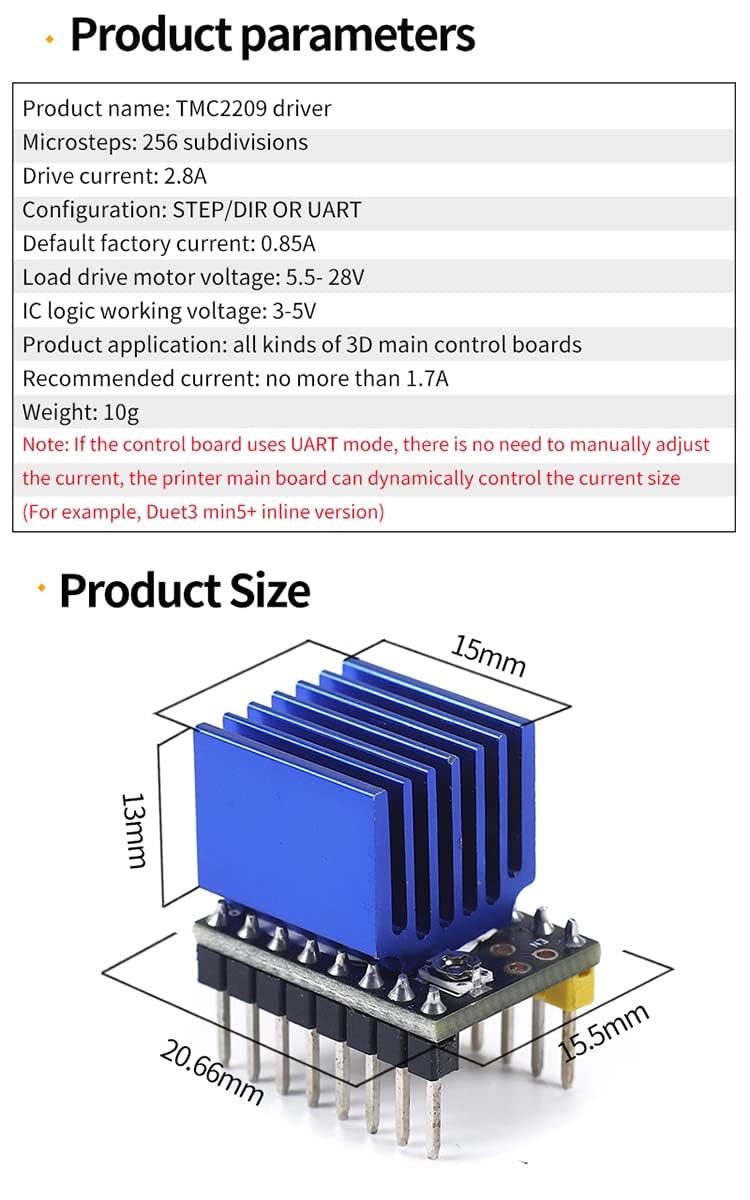

Features: Support Uart module by putting on jumper cap instead of soldering on mks gen_l V2.0, skr 1.3, 1.4.mks sgen_l Product settings: Default current 1.25A Maximum current: 2.5A Logic voltage: 3.3V/5V Input voltage: 5.5V-28V Microstep: up to 1, 256 Module: dir/step, uart Microstep settings: M0:GND:step 8 VCC_IO:step 32 GND:step 64 VCC_IO:step 16 M1: GND: step 8 GND: step 32 VCC_IO:step 64 VCC_IO:step 16 Operator's use precautions: 1.Verf measures the voltage of GND and potentiometer 2. Please do not link the motor when measuring the voltage. Otherwise it is easy to burn the drive 3. Please connect the power supply when measuring voltage. Don't just connect to USB power
- New Original German TMC2209-TA Chip,excellent mute effect
- Input voltage: 5.5V-28V
- Large heat sink, good heat dissipation
- Support sensorless feedback function
| UPC | 755454774471 |
|---|---|
| Model | G78-1 |
| Speed | 50000 RPM |
| Voltage | 5.5 Volts |
| Brand Name | Teyleten Robot |
| Model Name | tmc2209 |
| Item Weight | 0.03 Kilograms |
| Part Number | G78-1 |
| Manufacturer | Teyleten Robot |
| Material Type | Metal |
