T Tulead 2PCS Air Mainfold Pneumatic Compressor Mainfold Aluminum Air Distribution Block 3 Way 5 Port

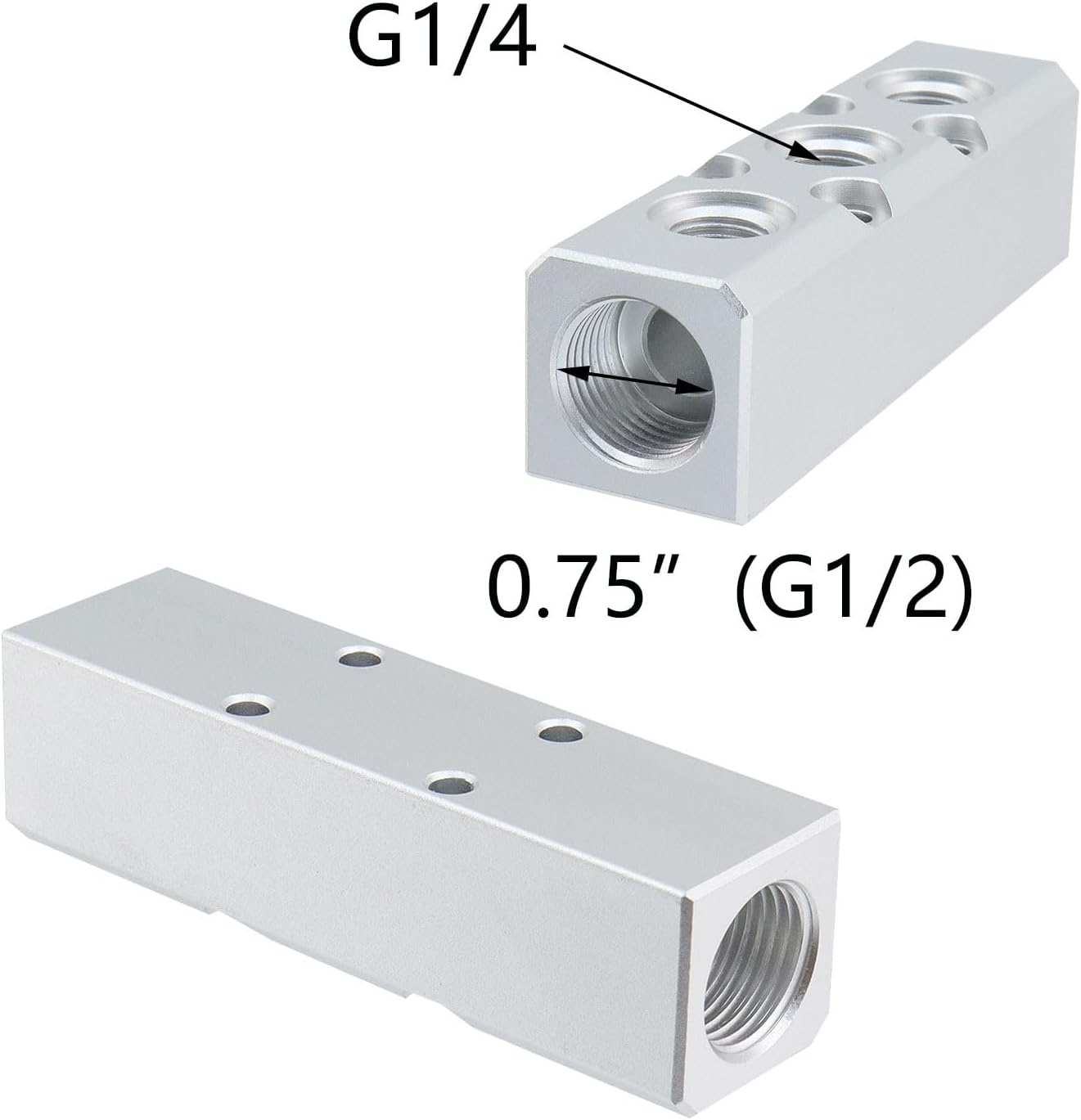

Product Specifications: Material: Aluminum Total Size: 106×30×30mm/4.17"×1.18"×1.18"(L*W*H) Type:3 Ways fot the outlet, 2 Ways for the inlet (You can choose the any one) Output Port Inner Diameter:11.5mm/0.45" (G1/4) Inlet Port Inner Diameter:19mm/0.75" (G1/2) Mounting Hole Diameter: 5mm/0.19" Notes: All dimensions are measured manually and there may be small deviations. The color may have different as the difference display, Please understand.Please do not use it for other purposes besides fast fluids Do not exceed the maximum use pressure when using When connecting the pipe joint and the air pipe, please insert the air pipe into the end Do not use outside the operating temperature range to prevent the seal material from being worn or leaking Do not use it in places such as metal powder or dust to prevent malfunction or leakage Package Content: 2 × Manifold Block

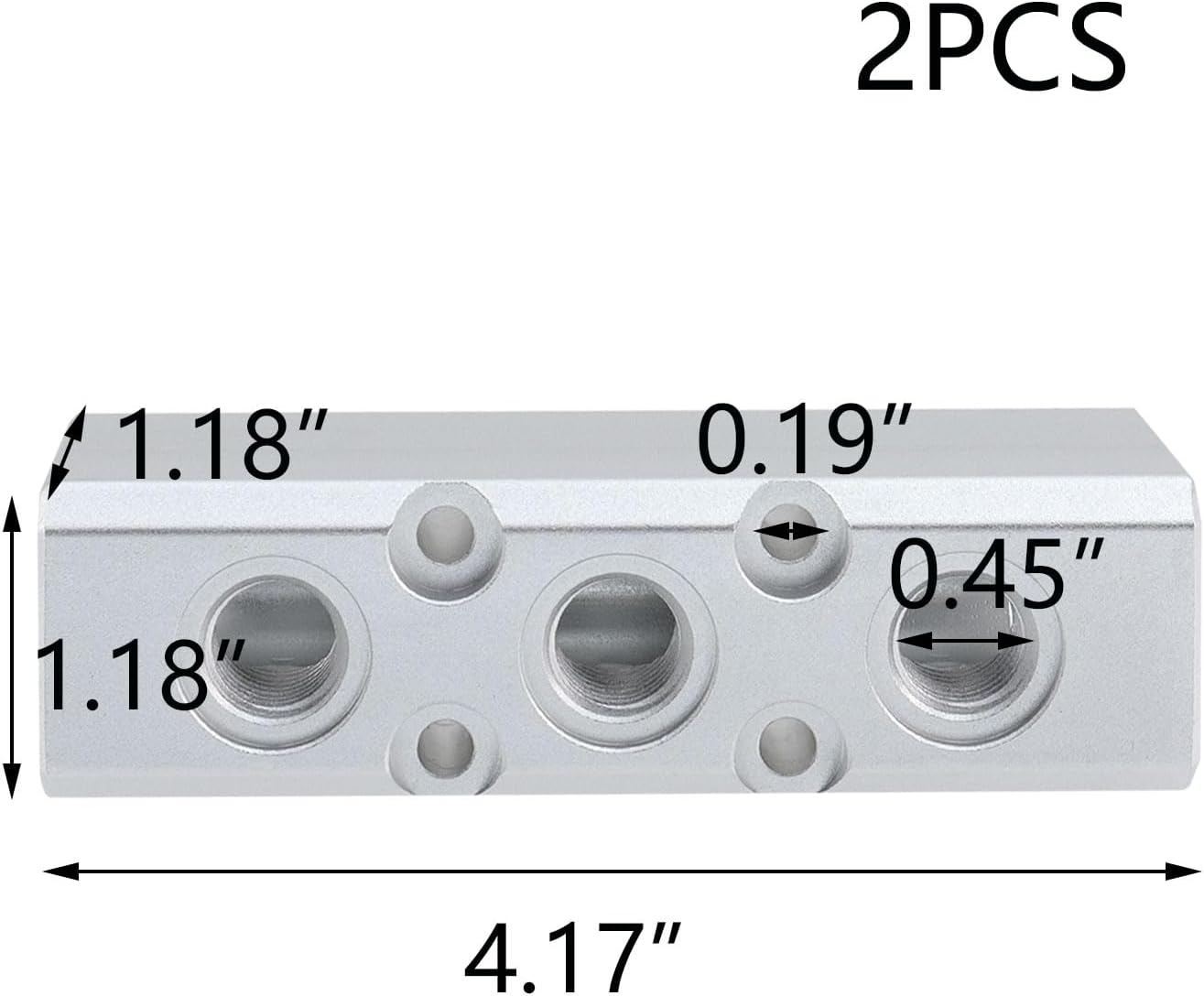

• Total Size: 106×30×30mm/4.17"×1.18"×1.18"(L*W*H); Output Port Inner Diameter:11.5mm/0.45" (G1/4); Inlet Port Inner Diameter:19mm/0.75" (G1/2)

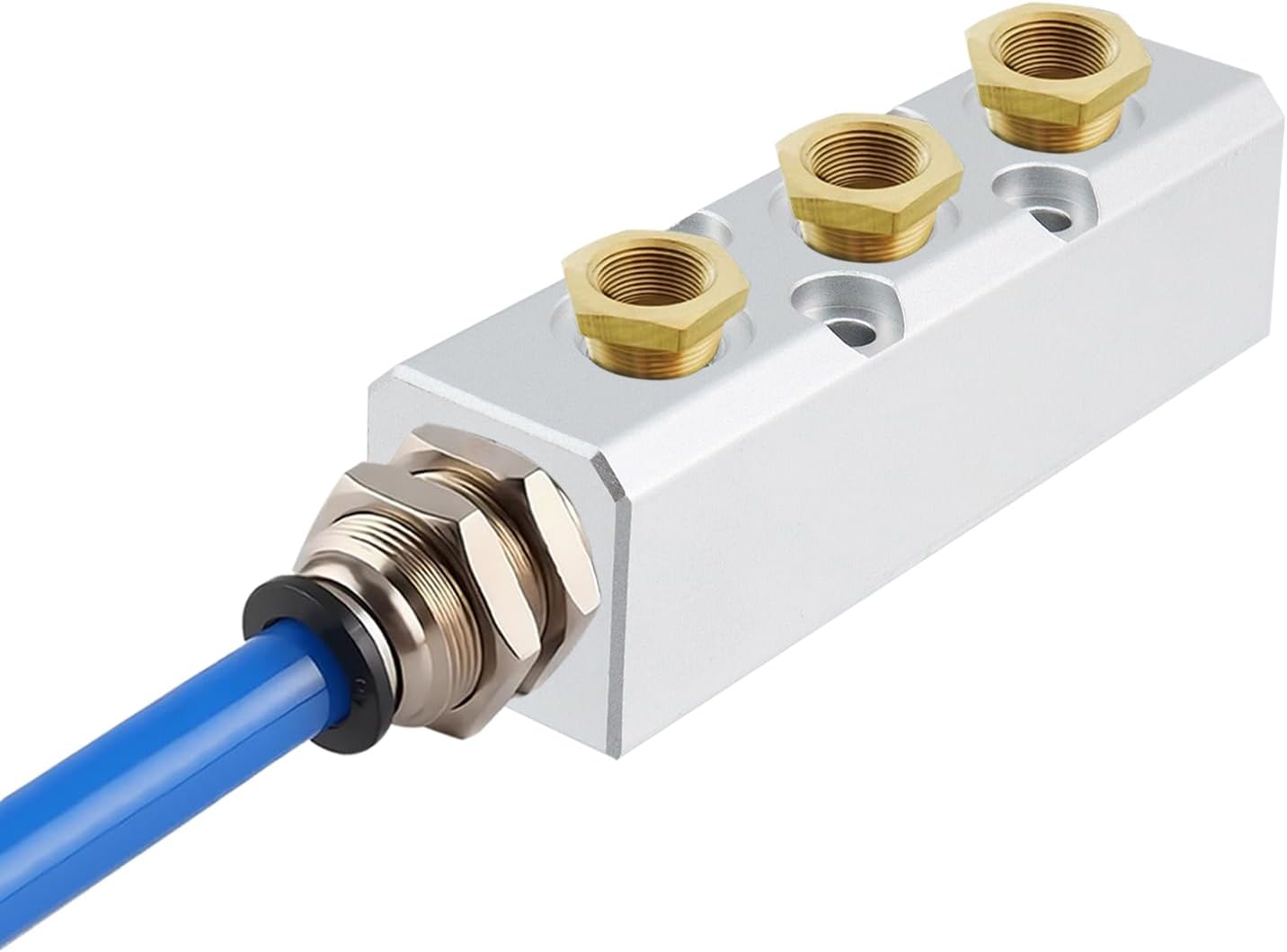

• Unmatched Convenience for Multi-System Applications​: When your air compressor needs to supply air to multiple independent systems simultaneously, this air manifold emerges as the ultimate solution to streamline your workflow. Say goodbye to the hassle of repeatedly disconnecting and reconnecting hoses—with its integrated multi-port design, you can connect a single main hose to the manifold and distribute air to multiple endpoints effortlessly. This time-saving design eliminates downtime caused by frequent connection changes, making it an indispensable, highly functional tool for both professional and industrial settings
• Premium Aluminum Construction: Crafted from stable aluminum, this air manifold boasts exceptional wear resistance, ensuring long-lasting performance. It resists deformation under pressure, maintains structural integrity over time, simplifying installation and reducing unnecessary weight in your setup. All ports adhere to universal standard sizes, can compatible with most industry-standard fittings for seamless mounting
• Reliable Working Parameters for Versatile Operation​: Engineered for consistent performance, this air manifold operates within a working pressure range of 0.15-0.8MPa, making it suitable for a wide array of pneumatic applications. It functions reliably within a temperature range of 20°C to 80°C), ensuring stability in both indoor and outdoor working conditions
• Wide-Ranging Applications Across Pneumatic Systems​: This air manifold is specifically designed to facilitate air distribution when multiple tools or components need to connect to a single air compressor. Its versatility makes it ideal for use in air compressors, pneumatic cylinders, vacuum pumps, air tools, and other pneumatic systems. It also serves as a reliable supporting component for industrial machinery, automotive workshops, DIY garages, and manufacturing facilities—adapting seamlessly to both professional and hobbyist needs
