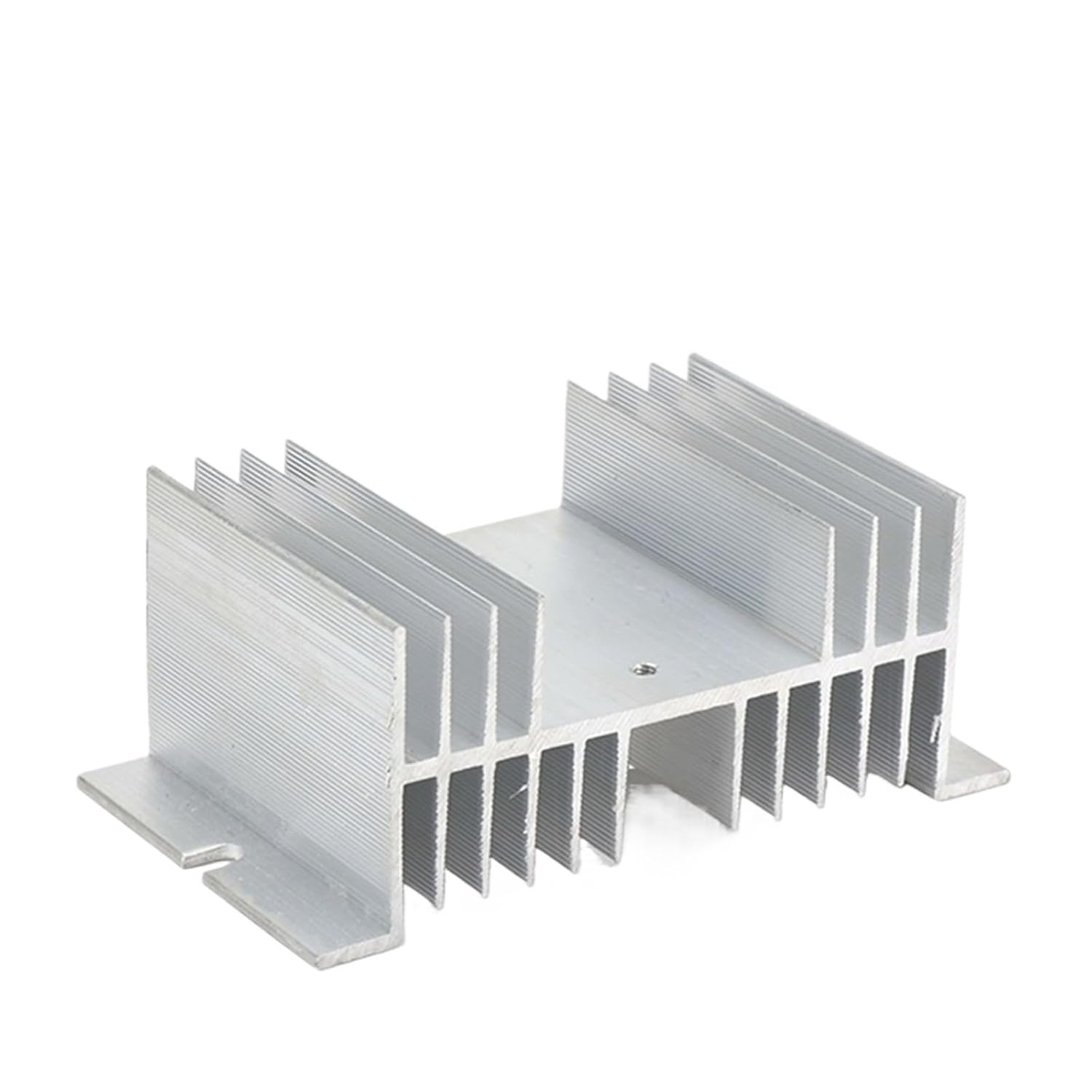

SSR-120DA 150DA Single Phase DC Control AC Heat Sink 24-480VAC to 3-32VDC 120A 150A DA Solid State Relay 1pcs(120DA)
Product details
| Management number | 218535170 | Release Date | 2026/05/03 | List Price | $29.66 | Model Number | 218535170 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Relays / Current Monitoring RelaysSTEP1:ChooseacorrectcontrolModeAA-ACControlACDA-DCControlACDD-DCControlDCVA-ControlandAdjustSTEP2:ChooseacorrecttypeCurrentofEquipment/Ratio=CurrentofSSRPS:TheRatiodependonthekindofyourloadingequipment.Resistiveload:70%,Inductiveload:20%,Capacitiveload:10%.STEP3:Chooseasuitableheatsink.DuringtheuseageofSSR,itwillgiveoutalotofheat,soinordertoextendthelifeofyourSSR,pleaseinstallaheatsink,alsoifthecurrentisover60A,thecoolingfanalsorequired.PS:OurHeatSinkinclude2screws(forinstallheatsink)andapackofthermalcompound(isappliedtothebottomoftheSSR)NOTICE:The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent as a dummy load is an obvious way to test continuity.Theory : Solid State Relayis_customized : YesContact Load : Low PowerOrigin : Mainland ChinaFeature : Sealed
- Relays / Current Monitoring Relays
| Model | NSXVIG |
|---|---|
| Brand Name | NSXVIG |
| Part Number | NSXVIG |
| Contact Type | Normally Closed |
| Manufacturer | NSXVIG |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 Amps |
