Saihisday 40A Waterproof Fuel Pump Relay Assembly, 12V Electric Fuel Pump Wire Harness Relay Kit P/N 30247
Product details
| Management number | 218083854 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218083854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Voltage: any 12V system Relay: 40A Fuse: 30A How to install: 2 feet of 16 gauge copper wire to connect to 12V trigger switch 4 feet of 16 gauge black wire connects to chassis ground 6 feet of 10 gauge orange wire connects to fuel pump 10 feet of 10 gauge red wire to +12VDC Package Included: 1 x Relay base with wire harness 1 x Inline waterproof fuse holder 1 x 40 Amp Heavy Duty Waterproof Relay 1 x 30 Amp fuse 2 x wire connectors 2 x Relay Mounting Screws 3 x heat shrink hole terminals
- Fitment: Fuel Pump Relay Kit P/N 30247, featuring a waterproof relay and a 40-amp relay bypass switch set, is designed for 12V systems with a fuel pump wiring harness and a heavy-duty long wire universal kit
- Heavy Duty Design: The heavy-duty long wire for 12V system part number 30247 enables a direct connection from the electric fuel pump to the battery, providing the necessary voltage for the high-pressure fuel pump. This design ensures reliability, prevents voltage drops, and safeguards the electrical system from fuel pump current overload, ensuring safety and dependability

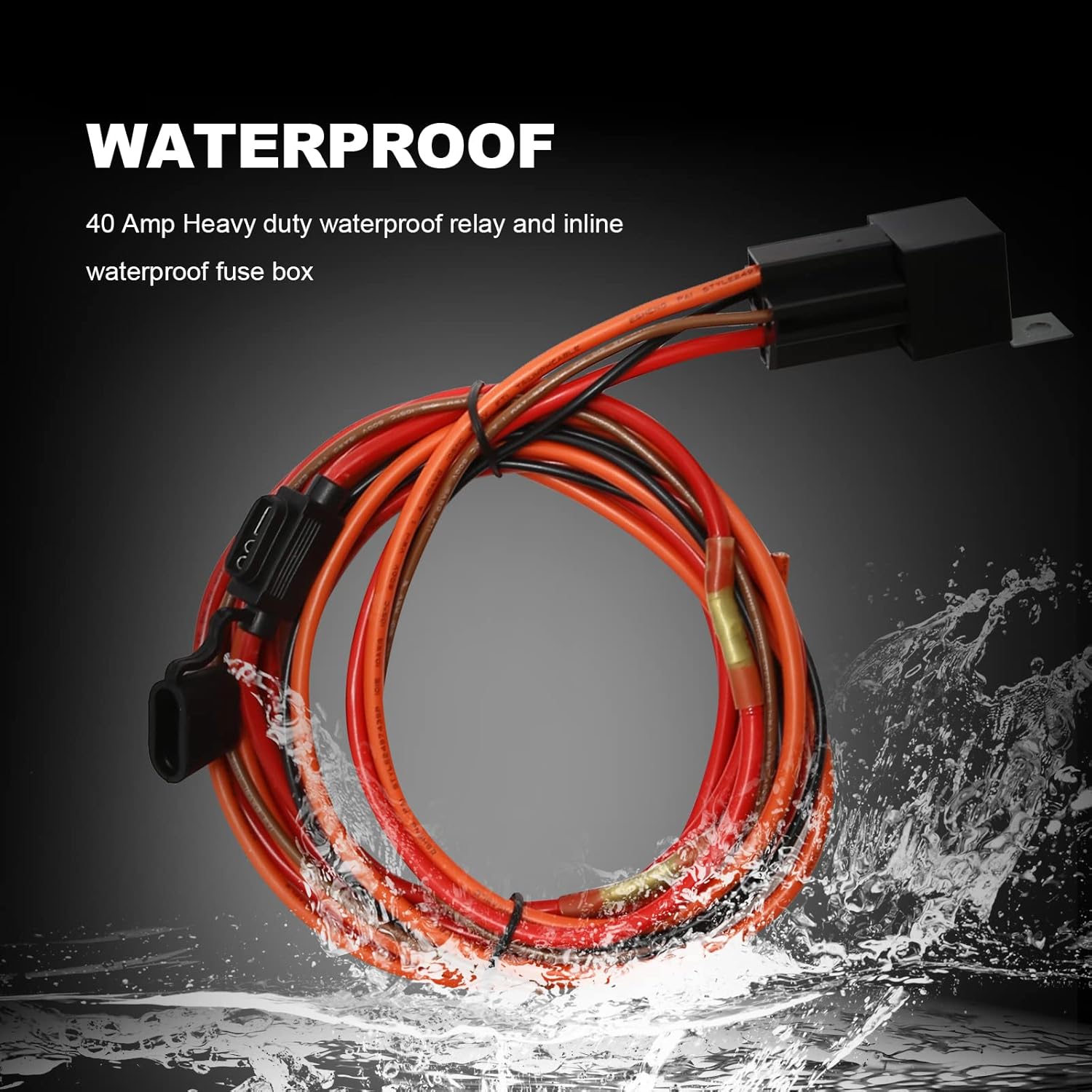

- Reliability and Features: The Fuel Pump Relay Assembly part number 30247 is designed for 12V systems, offering reliability and waterproofing. The 40-amp heavy-duty waterproof relay and inline waterproof fuse box prevent water ingress, ensuring dependable performance
- Easy Installation: Serving as an auxiliary component, the Heavy Duty Fuel Pump Relay Assembly is easy to install. With clearly labeled and color-coded wires, no special tools are required. The electric fuel pump relay assembly serves as the ideal replacement part and accessory for the heavy-duty long wire universal fit 12V system part number 30247
- Package Contents: 1 x Relay base with wire harness, 1 x Inline waterproof fuse holder, 1 x 40-amp Heavy Duty Waterproof Relay, 1 x 30-amp fuse, 2 x wire connectors, 2 x Relay Mounting Screws, 3 x heat shrink hole terminals
| Model | 30247 |
|---|---|
| Wattage | 480 Nanowatts |
| Brand Name | Saihisday |
| Part Number | HS2005 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | Saihisday |
| Release Time | 10 Seconds |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 40 Amps |
| Operating Time | 10 Seconds |
| Operation Mode | Manual |
| Coil Resistance | 1 Ohms |
| Contact Material | Copper |
| Included Components | A Set of Waterproof Fuel Pump Relay Assembly |
| Number of Terminals | 2 |
| Contact Current Rating | 40 Amps |
| Upper Temperature Rating | 80 Degrees Celsius |
| Maximum Switching Current | 40 Amps |
| Maximum Switching Voltage | 12 Volts |
| Minimum Switching Voltage | 12 Volts |
