Rsrteng OTDR Fiber Optic Tester 1310/1550nm 32dB/30dB Range 420km High Accuracy 7”LCD Touch Screen SM Fiber Tester Support Event Map OPM, VFL, LS, OLS Ethernet Remote Test Analysis Software
$699.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by eurcenter.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$699.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by eurcenter.net
Free 30-day returns Details
Product details
| Management number | 219326533 | Release Date | 2026/05/03 | List Price | $280.00 | Model Number | 219326533 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Professional OTDR Measuring】RSO-6200-S0 OTDR fiber optic tester provides high accurate measurements. For OTDR test, select the test wavelength 1310/1550nm and dynamic 32dB/30dB should be matched. Test range can up to 420km/260mi. Real-time test mode, selected test time is the average mode, also can one key automatic test. Not support live test. OTDR advanced settings test, consists of measurement, analysis settings, pass/fail, and general settings parameters.

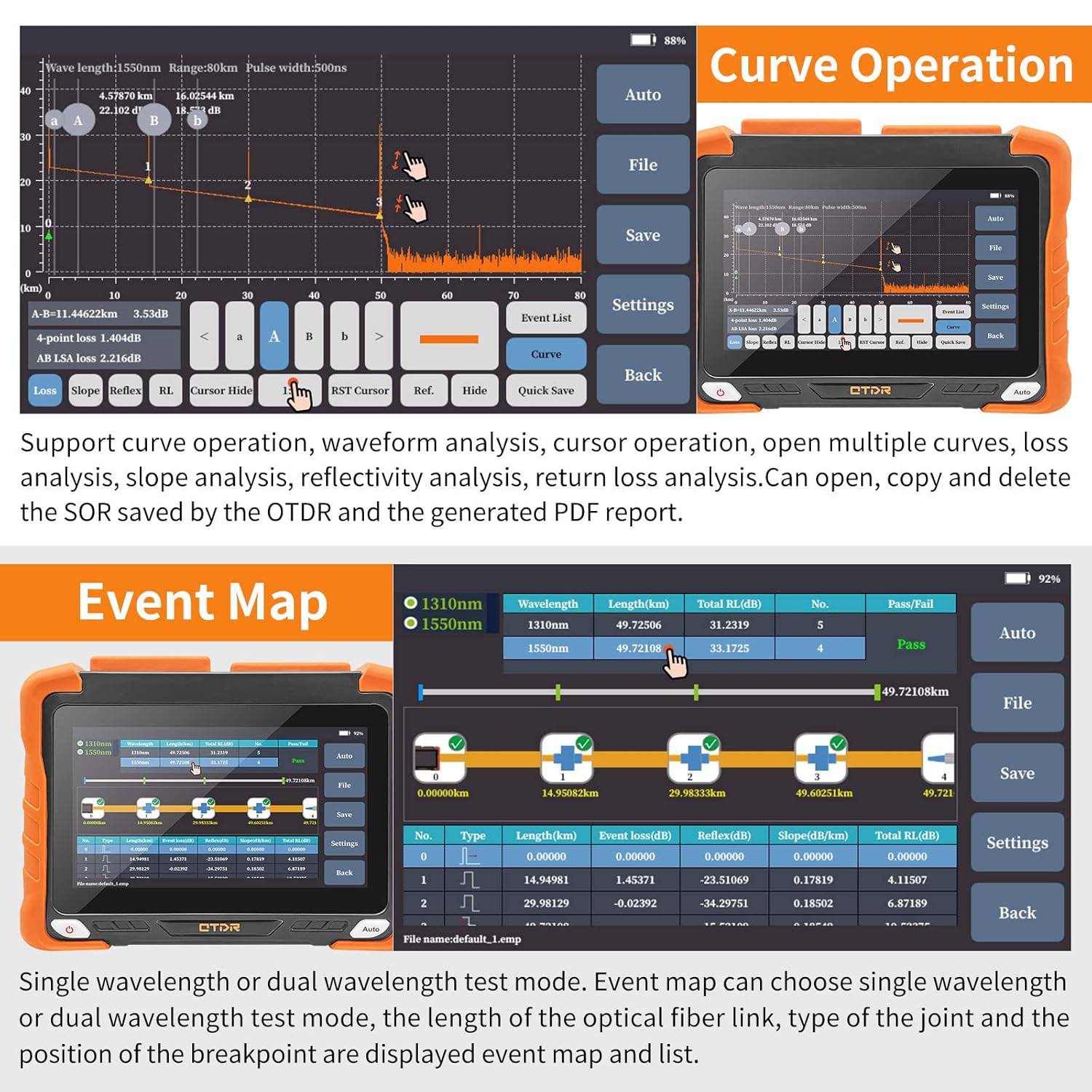

- 【Curve Analysis & Shortest EDZ ADZ】 This OTDR Fiber Tester is equipped with curve event analysis algorithms functions, such as curve operation, waveform analysis, cursor operation, open multiple curves, Loss analysis, slope analysis, reflectivity analysis, return loss analysis. Support open, copy and delete the test result files save by the OTDR and genrated PDF report. Shortest event dead zone (0.8m) and attenuation dead zone (4m).
- 【Event map & Test Tools】Event map can choose single wavelength or dual wavelength test mode,the length of the optical fiber link, type of the joint and the position of the breakpoint are displayed event map and list. Built-in OPM,VFL,LS,OLS, optical loss test function supports turning on the l-s and the optical power meter at the same time. Widely used in FTTX, optical network engineering construction. Type: Class 2; Power<1mW,Wavelength:650nm
- 【Others Professional Test Tools】OTDR tester is also equipped with an Ethernet tool, such as Network tools PING, PPPOE, IP Scan, Ethernet Remote. Dual RJ45 LAN 10/100Mbit/s. Built in analysis software. Support trace analysis, report print. Support up to 200,000 curves TF card data storage. OTDR tester Net weight/Dimension: 0.94kg(2.07lbs)/215x160x50mm(8.46x6.3x1.97inch).
- 【Friendly Service 】7 inch color LCD + touch screen, resolution 800×480. DC5V/2A, 9V/2A, 12V/1.5A power output, support fast charging and as power bank. Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector.
