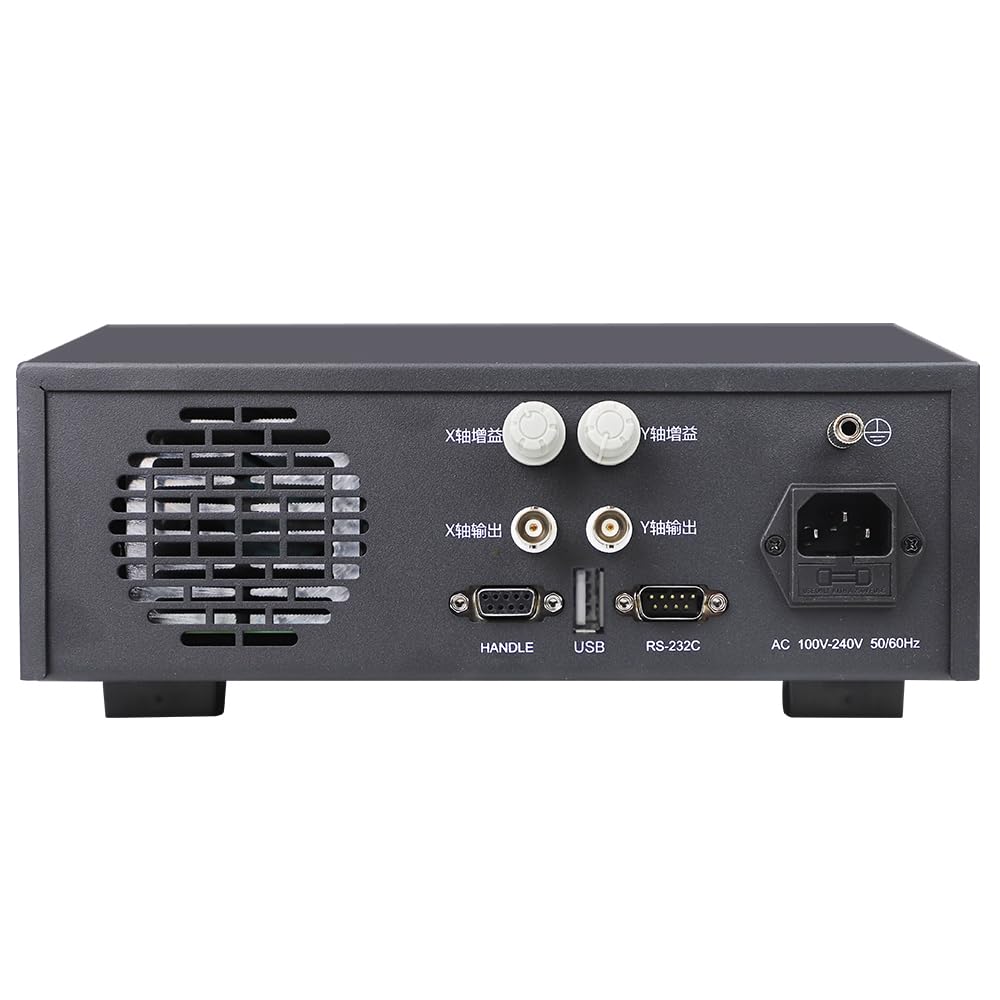

RK9320AY Medical Programmable AC DC Voltage Withstand Tester,Voltage AC 0.05kv-5kv DC 0.05KV-6kV,Current AC 0-20mA DC 0-10mA with Handler, RS232, USB Interface, LAN

Product Introduction This series of programmable voltage withstand testers is a high-performance safety tester designed with high-speed MCU and large-scale digital circuits. The output voltage increases and decreases. The frequency safety of the output voltage is controlled by a microcontroller, which can display the breakdown current and voltage values in real time, and has software calibration function. Equipped with PLC interfaces, RS232C, RS485, USB devices, and USB host interfaces, it can be easily combined with computers or PLCs to form a comprehensive testing system. It can quickly and accurately conduct comprehensive safety measurements on household appliances, instruments and meters, lighting appliances, electric heating appliances, computers, information machines, etc.

• AC withstand voltage test:0.050kV ~ 5.000kV,±（2%+5V）,1V resolution, maximum output power 100VA ( 5.000kV/20mA) ,maximum rated current 20mA,lower current range 0 ~ 20mA/0=No lower limit,output waveform sine wave,output waveform distortion ≤ 5% (no load or pure resistive load),Output signal type DDS linear power amplifier,voltage rise time 0.1s ~ 999.9s/OFF=voltage rise time off,0.1s ~ 999.9s/OFF=continuous test,voltage drop time 0.1s ~ 999.9s/OFF=voltage fall time off
• DC withstand voltage test:voltage range 0.050kV ~ 6.000kV,±（2%+5V）,1V resolution,Maximum output power 60W ( 6.000kV/10mA),maximum rated current 0~10mA,lower current range 0~10mA,ripple factor ≤ 5% (6kV/10mA),discharge time ≤ 200ms,voltage rise time 0.1s ~ 999.9s/OFF=voltage rise time,test time 0.1s~999.9s /OFF=continuous testing,voltage drop time 0.1s~999.9s/OFF=voltage fall time off
• Model:horizontal Arc detection:1mA-20mA Input characteristics:100V~240V 50Hz/60Hz Test alarm:Buzzer, LCD display, FAIL indicator light Screen size:3.5 inch TFT LCD display Communication interface:HANDLER, RS232, USB interface, LAN Memory:16M flash Each file can store 50 test steps
• Application area:Medical equipment: various types of new medical instruments and medical supporting instruments, cardiac monitoring, medical imaging Diagnostic and therapeutic equipment: X-ray diagnostic examination equipment, ultrasound diagnosis, nuclear medicine, endoscopic system, facial features treatment equipment, dynamic analysis treatment equipment, low-temperature freezing equipment, dialysis treatment equipment, emergency equipment Ward nursing equipment and appliances: various types of beds, cabinetsAuxiliary equipment: medical nursing data and image processing equipment, rehabilitation equipment Oral medical equipment: dental diagnostic medical equipment
• The AC/DC withstand voltage function adopts DDS digital signal synthesis technology to generate accurate, stable, pure, and low distortion waveforms Adjustable high voltage rise and fall time, meeting the requirements of different test objects, with arc detection function, and test results can be saved simultaneously Equipped with dual frequency comprehensive testing, user-friendly operation interface with frequency range of 50Hz and 60Hz, supporting numeric key input and dial input, making operation simpler
