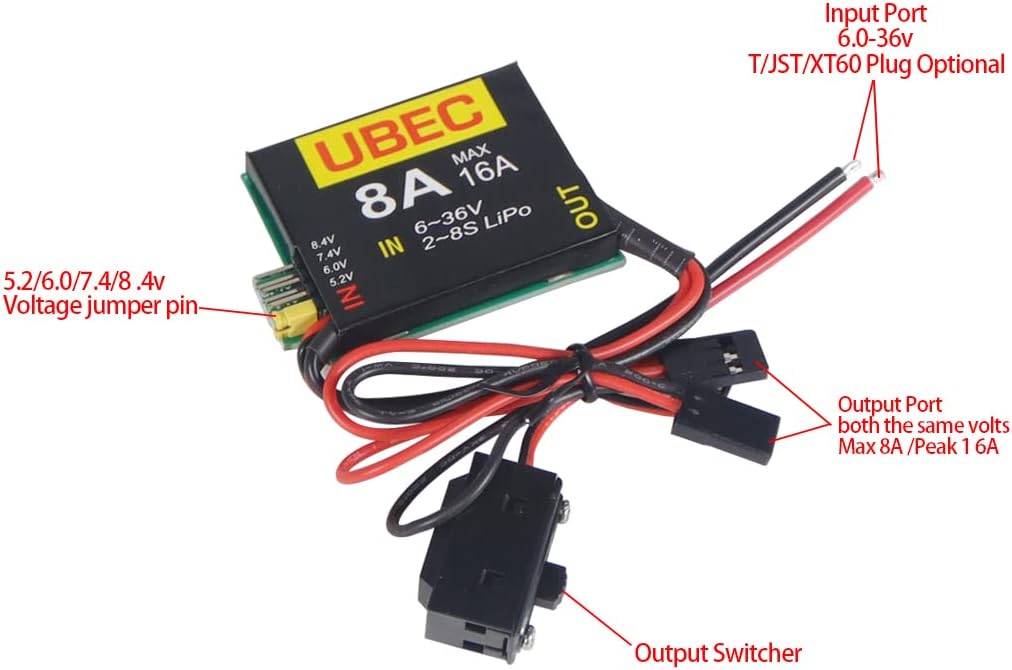

QWinOut UBEC-8A 2S-6S 6-36V BEC Dual UBEC 8A/16A 5.2/6.0/7.4v/8.4v Servo Separate Power Supply RC Car Airplane Robot (UBEC 8A)

UBEC-8A 6V-36V 2-8s LiPo For FPV Features: 1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90% 2. The output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the use of aircraft model equipment of various voltage specifications 3. Dual parallel output, can carry larger current 4. With overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable 5. External switch, easy to open and close UBEC 6. Has a working status indicator, which lights up when the UBEC is working normally Specification: 1. Input voltage: 6V-36V (2-8S) 2. Output voltage 5.2/6.0/7.4/8.4V optional 3. Output current: continuous 8A, instantaneous 16A DUAL-UBEC 15-26V 4-6s LiPo For FPV Features: 1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%. 2. One output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the role of aircraft model equipment of various voltage specifications 3. One output fixed 12V voltage, which can be used by cameras, video transmitters and PTZs and other equipment 4. With input reverse connection protection, overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable 5. Has a working status indicator, which lights up when the UBEC is working normally Specification: 1. Input voltage: 15V-26V (4-6S) 2. Output voltage 5.2/6.0/7.4/8.4V optional, all the way fixed 12V 3. Output current: 5.2V-8.4V: continuous 8A, instantaneous 16A 12V: 4A continuously, 6A instantaneously

• Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%.
• Has a working status indicator, which lights up when the UBEC is working normally
• UBEC-8A 6V-36V 2-8s LiPo For FPV
• DUAL-UBEC 15-26V 4-6s LiPo For FPV
