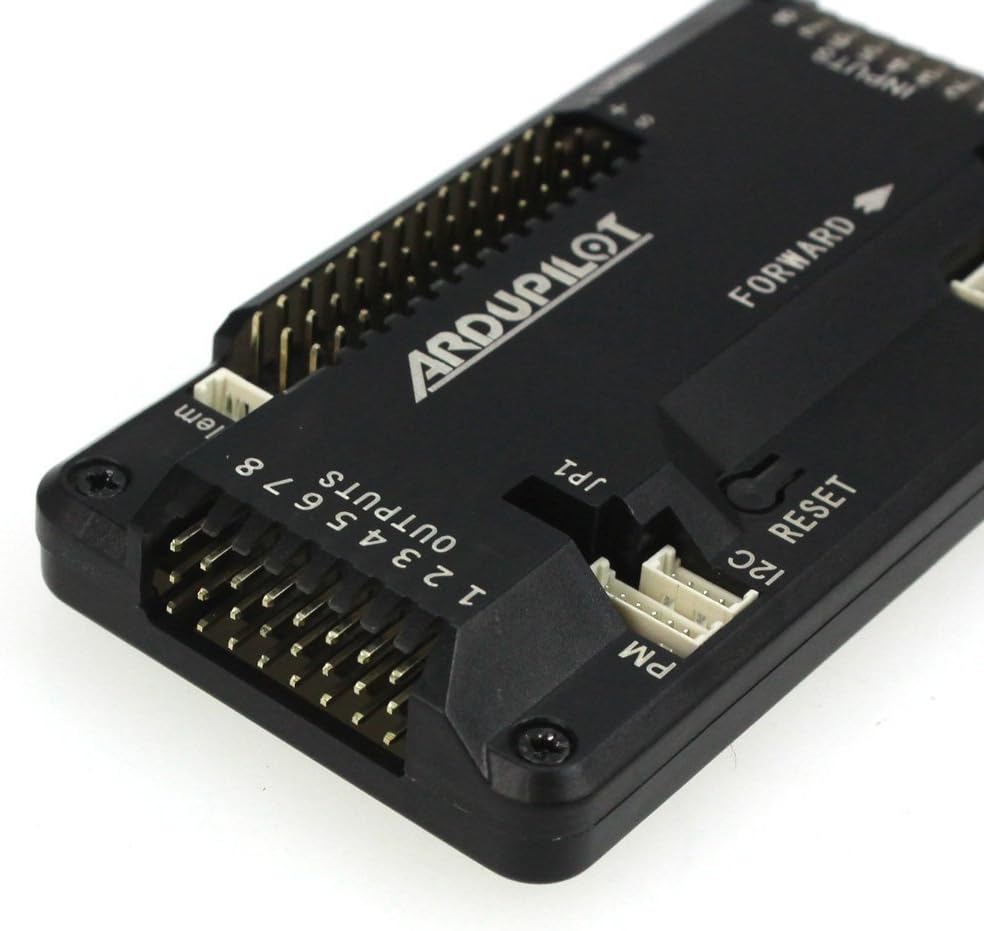

QWinOut APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass for DIY FPV RC Drone Multicopter

With Protective case but no Shock Absorber! Size: 70*45*13.5 Weight: 28G APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first. Features: - Arduino Compatible! - Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally - Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer - Onboard 4 MegaByte Dataflash chip for automatic datalogging - Optional off-board GPS, uBlox LEA-6H module with Compass. - One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000. - Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties. - Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively. 1. data transmission port 2. analog sensor port 3. autostability gimbal output 4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor) 5. USB port 6. remote control input 7. function selection jumper 8. GPS port 9. 12C external compass port 10. ATMEGA32U2 SPI online programming port 11. multifunction configurable MUX port (OSD is the defaulted output) 12. current voltage port 13. ESC power supply selection jumper 14. ESC output port Package Included: - 1* APM2.8 Board 1* APM2.8 Protective Case

• With Protective case but no Shock Absorber!
• Size: 70*45*13.5mm
• New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V
• Arduino Compatible!
• Package Included: - 1* APM2.8 Board ; 1* APM2.8 Protective Case
