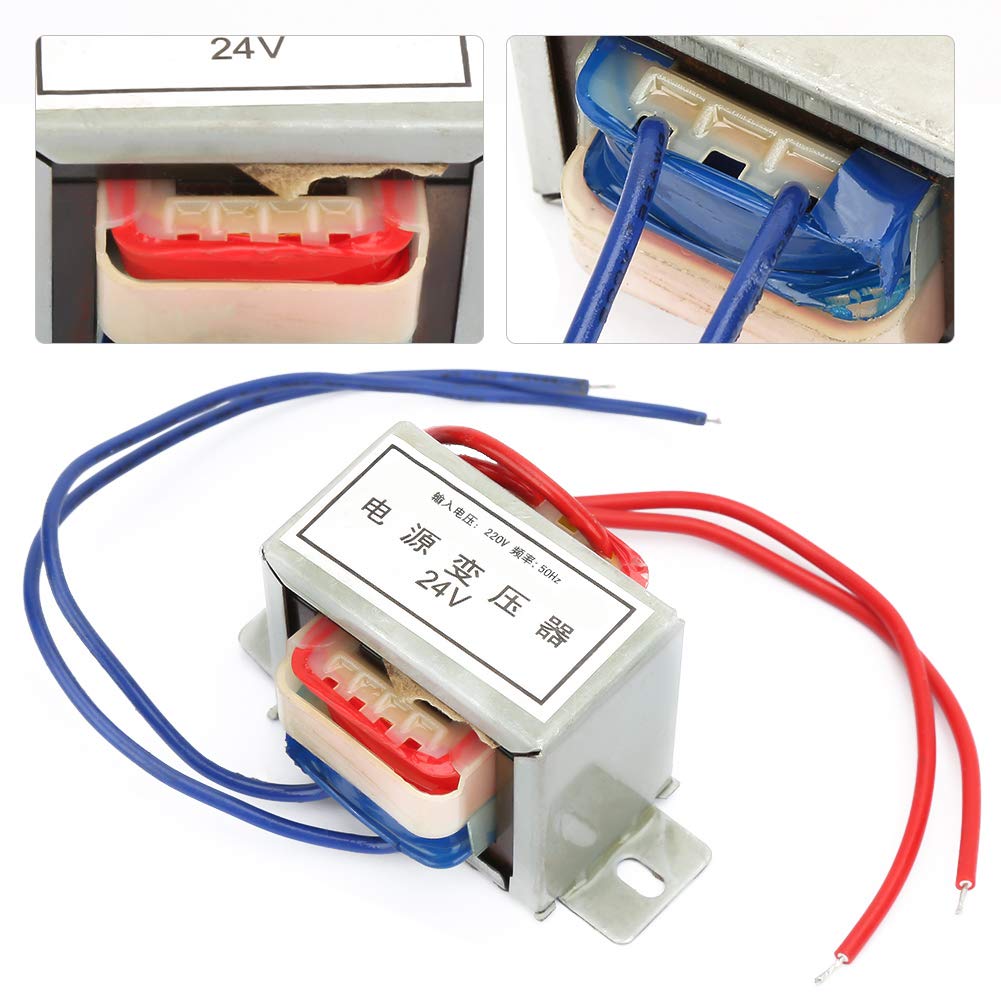

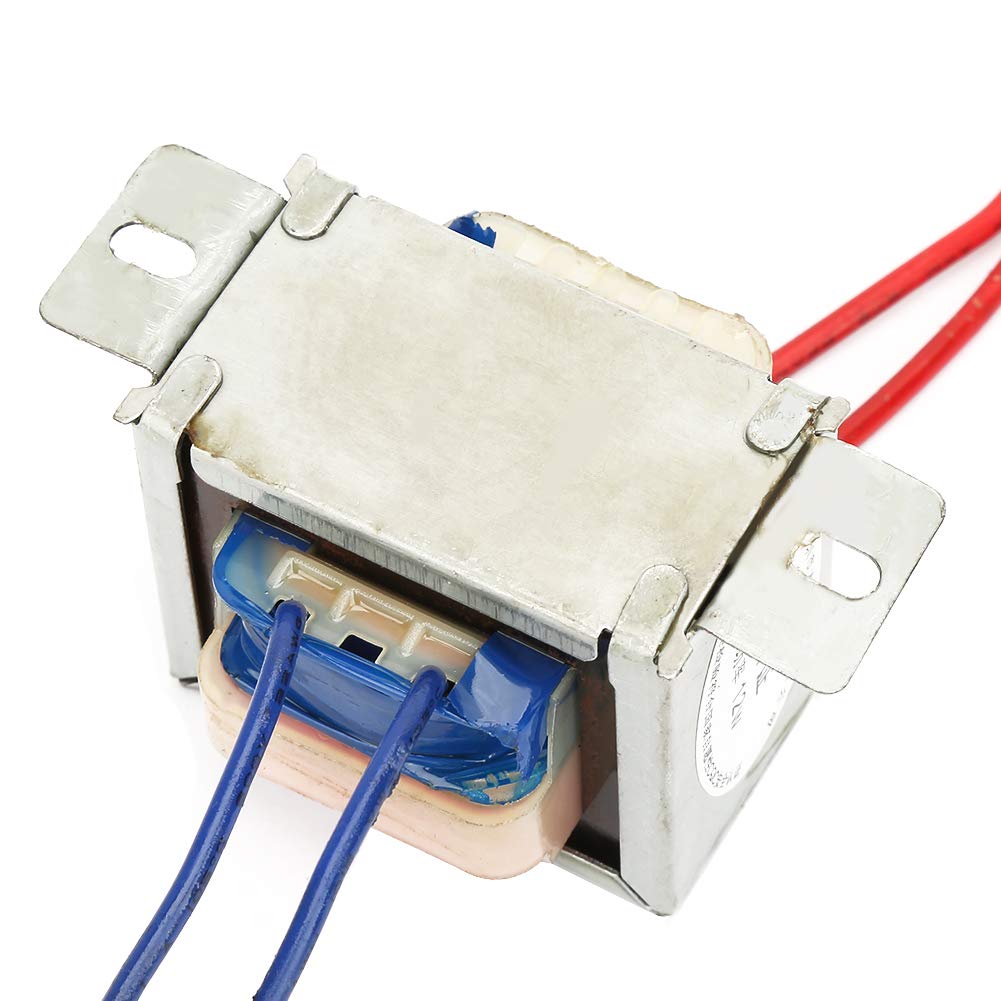

Power Transformer Isolation Transformer 12W 24V Low Frequency for Home Appliances Electronics Copper Wire Silicon Steel Core Safe Efficient

Feature:The product is made of high quality silicon steel sheet with low eddy current loss. The coil adopts all-copper varnished wire, which has good conductivity and long service life. The assistant accessories of product : nylon flame retardant rubber core, flame retardant tape, high temperature lead, and the product is safer to use.The product as a whole is strictly insulated and its safety is guaranteed. Products support a variety of cooling methods, more convenient to use.Specification:Product Name: Isolation TransformerCore type : EI48*24Rated power: 12WInput voltage: 220VFrequency: 50HzOutput voltage: 24VFrequency characteristics: low frequencyCore shape: EI type method: open typeCooling method: natural coolingCooling form: liquid / oil immersionStructure: Isolation transformerCoil material: copper enameled wireTwo-level linearity: red line initial input blue line secondary outputLength of each line: Input line length 130mm; Output line length 130mmPackage list:1 * Power TransformerNote:The rated voltage of transformer is made according to the load voltage. When no-load measuring, the voltage will show about 10% higher, which belongs to the normal phenomenon. After loading, it will all drop to the rated voltage. Buyers are assured to use it.The actual product color may deviate from the photo due to light.There may be a slight deviation in the measurement of product.

• [PREMIUM CONSTRUCTION] Built with high-grade silicon steel sheets that minimize eddy current loss, this transformer delivers superior efficiency. The pure copper enameled wire windings ensure excellent conductivity and heat resistance for long-lasting performance.
• [ENHANCED SAFETY FEATURES] Designed for worry-free operation with flame-retardant nylon bobbins, high-temperature wiring, and multiple insulation layers. The strict safety standards make it ideal for sensitive electronic equipment and home applications.
• [VERSATILE APPLICATION] for various 24V power supply needs including home appliances, audio equipment, and electronic devices. The 12W rated power handles moderate loads efficiently while maintaining stable voltage output.
• [EFFICIENT COOLING SYSTEM] Features natural cooling and optional liquid immersion capability to prevent overheating. The open-type-proof design ensures reliable performance even in humid environments.
• [USER-FRIENDLY DESIGN] Comes with clearly color-coded 130mm input/output leads (red/blue) for easy installation. The compact EI48*24 core size offers space-saving without compromising power delivery performance.
