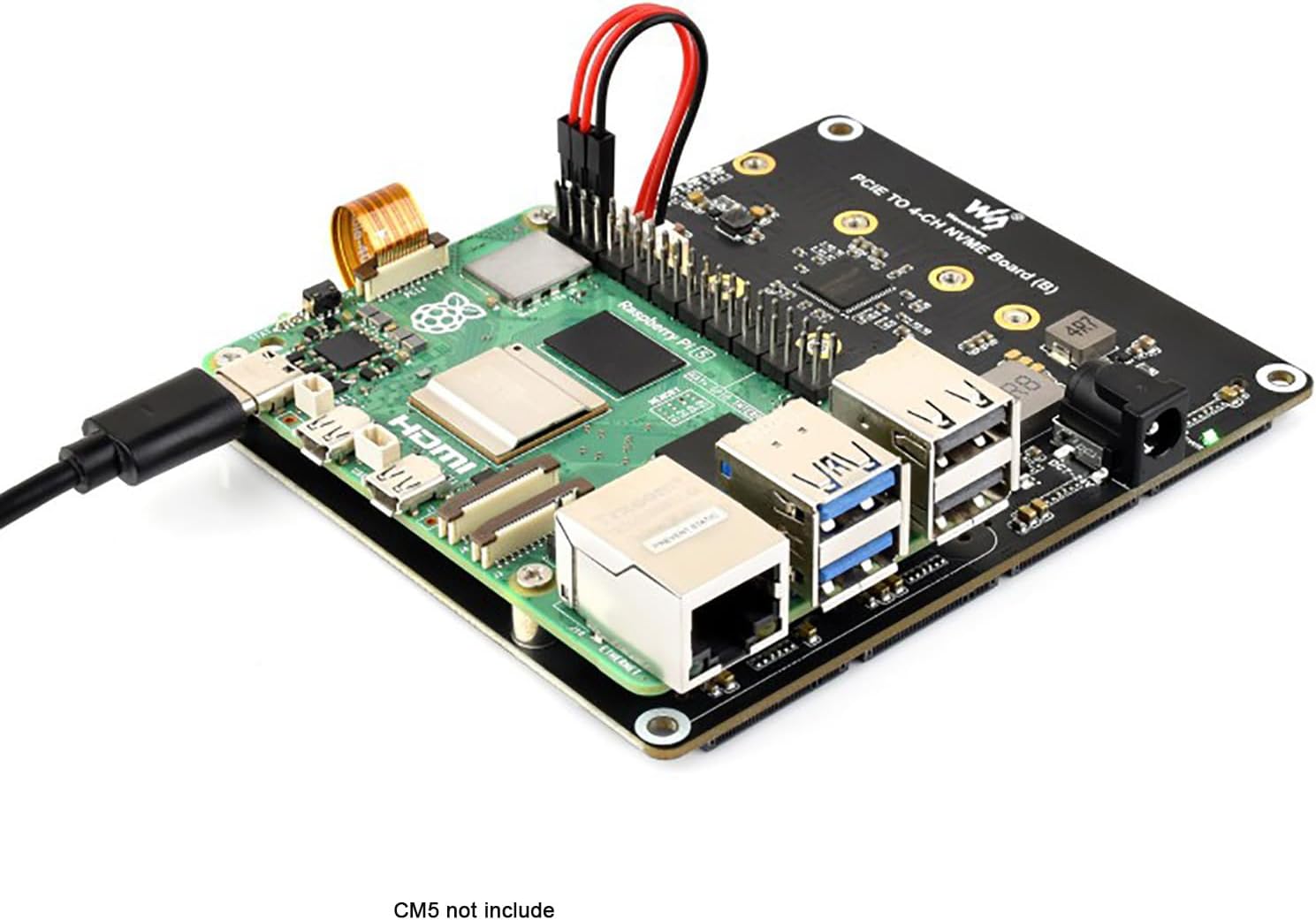

PCIe to 4-Ch NVMe M.2 Adapter Board for Raspberry Pi 5 | 4-Ch SSD Expansion | Boot Support | 7V-24V Power Input | LED Indicators

Overview The PCIe to 4-Ch NVMe M.2 Adapter Board revolutionizes storage expansion for Raspberry Pi 5 users, combining high-speed performance with versatile functionality. Designed specifically for the Raspberry Pi 5’s PCIe 2.0 x1 interface, this adapter allows you to connect up to four NVMe M.2 SSDs (2280/2260/2242/2230 sizes) simultaneously, unlocking unparalleled storage capacity and speed for AI-driven applications, media servers, or edge computing projects. Key Features: Quad NVMe SSD Support: Ideal for developers needing scalable storage solutions, this board supports PCIe Gen2 x1 bandwidth, enabling efficient data handling for machine learning, robotics, or multi-drive RAID configurations. Dual Power Flexibility: Power the Raspberry Pi 5 directly via the 3PIN cable (5V/5A) or use the onboard 7V-24V DC input to ensure stable operation under heavy workloads. This eliminates the need for separate power supplies, streamlining your setup. Boot Directly from NVMe SSDs: Replace slow microSD cards by booting the Raspberry Pi 5 OS from an NVMe drive, significantly improving system responsiveness and file transfer speeds. Intuitive LED Status Monitoring: Onboard LEDs provide real-time feedback on SSD activity and power status, crucial for troubleshooting in industrial automation or server environments. Easy Installation: Connect the adapter to the Raspberry Pi 5’s 16PIN PCIe port using the included cable, ensuring compatibility with official Raspberry Pi 5 HATs and accessories. Applications: AI & Machine Learning: Accelerate data processing for vision systems or neural networks using Hailo NPUs paired with high-speed SSDs. Home Servers & NAS: Build a cost-effective network-attached storage system with RAID support for media streaming or backups. Industrial Automation: Deploy reliable, high-capacity storage for PLCs, IoT gateways, or robotics controllers. Technical Specifications: Interface: PCIe 2.0 x1 (via 16PIN cable) Supported SSDs: NVMe M.2 (Key M) 2280/2260/2242/2230 Power Input: 7V-24V DC (adapter) or 5V via Pi 5 Compatibility: For Raspberry Pi 5 only Upgrade your Pi 5’s capabilities with this robust, multi-functional adapter—perfect for enthusiasts and professionals alike. Package include 1. PCIE TO 4-CH NVME Board (B) x1 2. Screws pack x1 3. PH2.0 3PIN cable x1 4. 16P-Cable-40mm x1

• Expand for Raspberry Pi 5 Storage with 4-Ch NVMe SSD Support – Connect up to four M.2 NVMe SSDs (2280/2260/2242/2230) via PCIe Gen2 x1 interface, enabling high-speed read/write performance for AI projects, data storage, or booting directly from SSDs.
• Dual Power Options for Raspberry Pi 5 & Adapter Board – Power the Pi 5 via the 3PIN cable (5V/5A) or use the onboard 7V-24V DC jack, ensuring stable operation for power-intensive tasks like AI processing or multi-drive setups.
• High-Speed Data Transfer with PCIe x1 Gen2 Interface – Achieve faster read/write speeds compared to microSD cards, ideal for applications requiring rapid file access, such as video streaming, robotics, or edge computing.
• Real-Time Monitoring via Onboard LED Indicators – Track SSD activity and power status effortlessly, ensuring reliability in industrial automation, home servers, or NAS configurations.
• Plug-and-Play for Raspberry Pi 5 – Connect via the 16PIN PCIe cable (included) for seamless integration, supporting bootable NVMe drives and simplifying upgrades for DIY enthusiasts and developers
