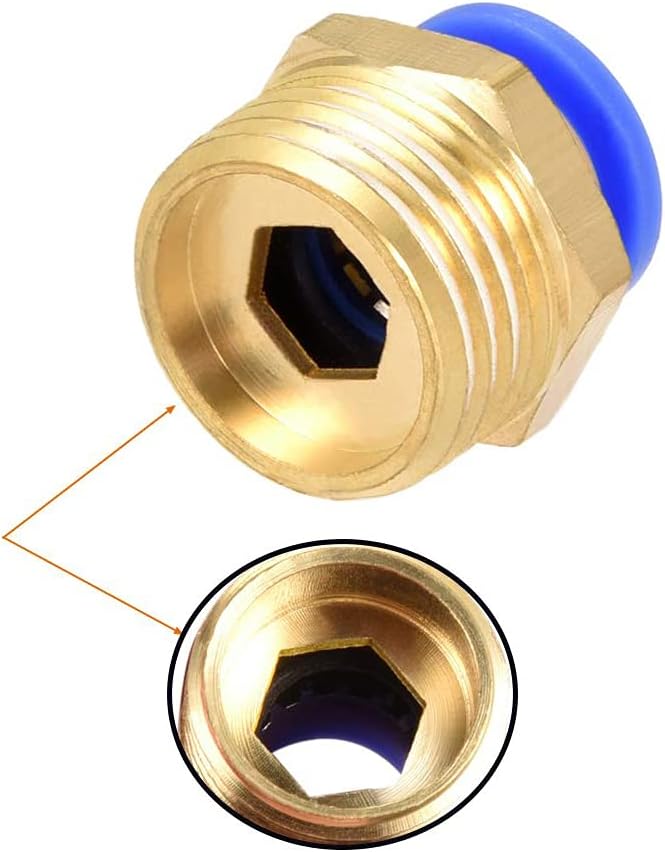

PC10-04 Push to Connect Fittings, 10mm Tube OD x 1/2” G Thread, Straight Pneumatic Quick Fitting Air Line Connector 8Pcs

Specification: Product Name: Quick Fitting Model: PC10-04 Size: 24mm x 17mm/ 0.94” x 0.66” (L x W） Operating Pressure: 0-0.9Mpa(0-9.2kgf/cm²) Max Working Pressure: 1.32Mpa(13.5kgf/cm²) Operating Temperature: 0-60 Degree Celsius Tube Size (OD): 10mm(3/8”) Thread Size: 1/2" G Color: Gold, Blue Material: Brass, Plastic Installation: 1. Cut the pipe flat without slope 2. When inserting the pipe into the connector, it must be inserted into the end, otherwise leakage may occur. 3. After inserting, try to pull out the tube. If it can't be pulled out, it means it is connected. 4. When loosening the tube, first confirm that the tube is not under pressure and then press the end cap evenly to the bottom. Package Content: 8Pcs of PC10-04 Quick Fitting

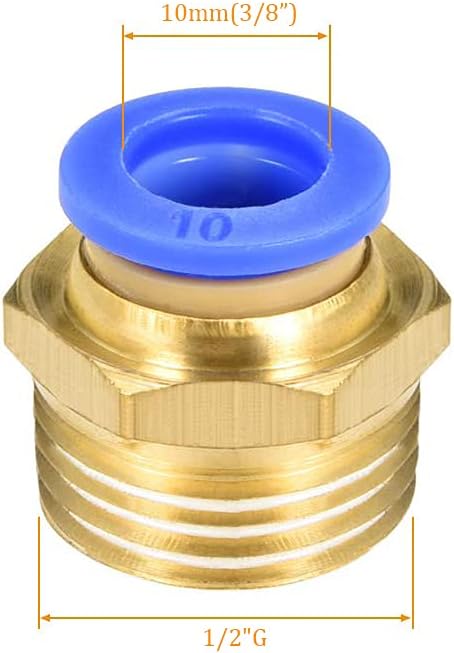

• Product Name: Push To Connect Quick Fitting; Model: PC10-04; Tube And Thread Size: 10mm(3/8”) Outer Diameter X 1/2" G Thread
• Operating Pressure: 0-0.9MPa; Max Working Pressure : 1.32MPa; Working Temperature: 0 - 60 Degrees Celsius
• Type: One end is a push to connect tube connector, the other end is a male G thread, and a good release cap that can withstand greater and stronger pressure without tripping.
• Advantage: Wear-resistant, light weight, anti-crushing, anti-pressure, anti-corrosion, good sealing performance and long service life.
• Connect Tube Materials: Designed to connect polyethylene, nylon and PU tubes. Quick and simple installation.
