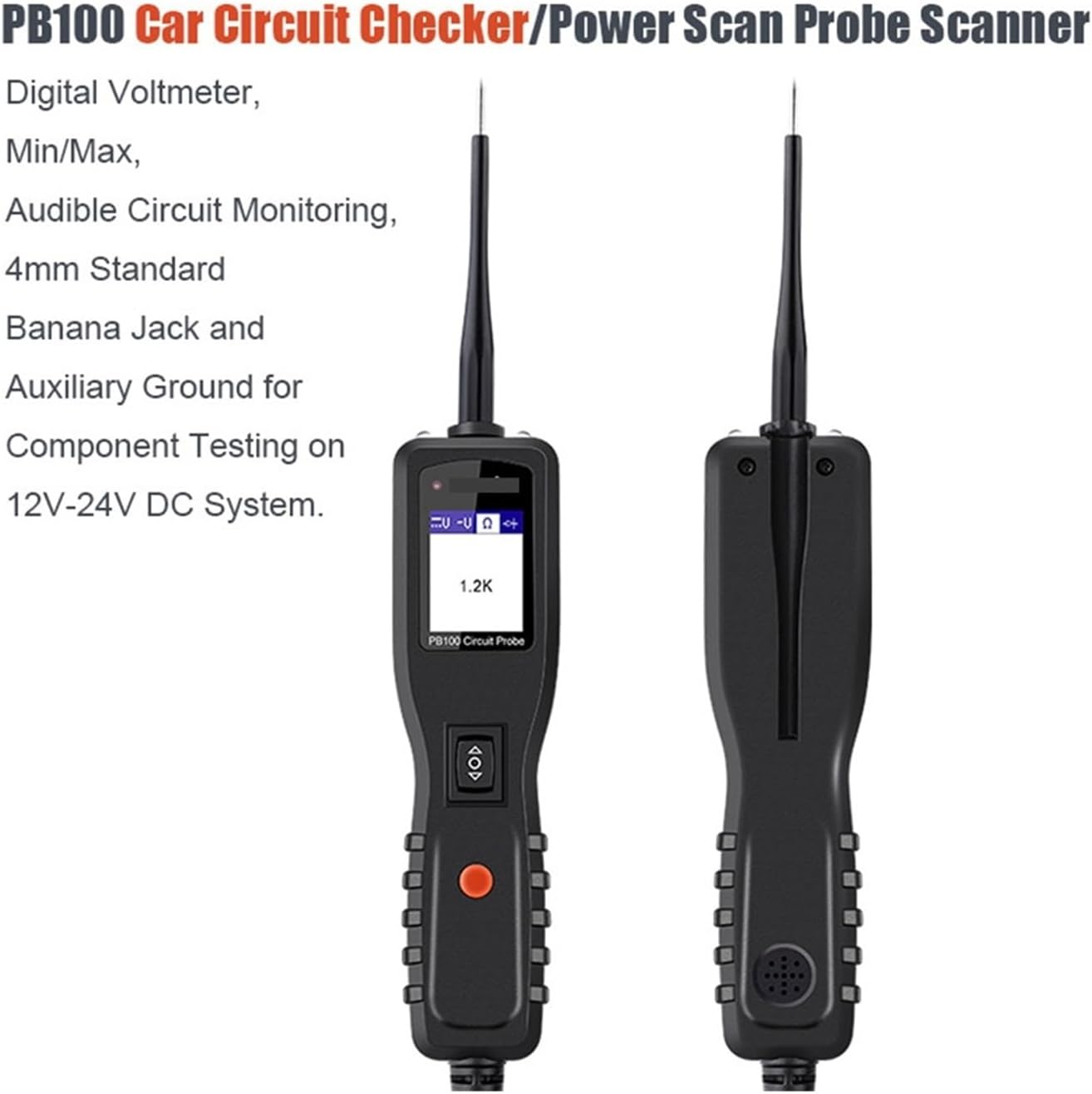

PB100 Automotive Circuit Tester Power Circuit Probe Kit Electrical System Diagnostic Tool Voltage Power Scanner

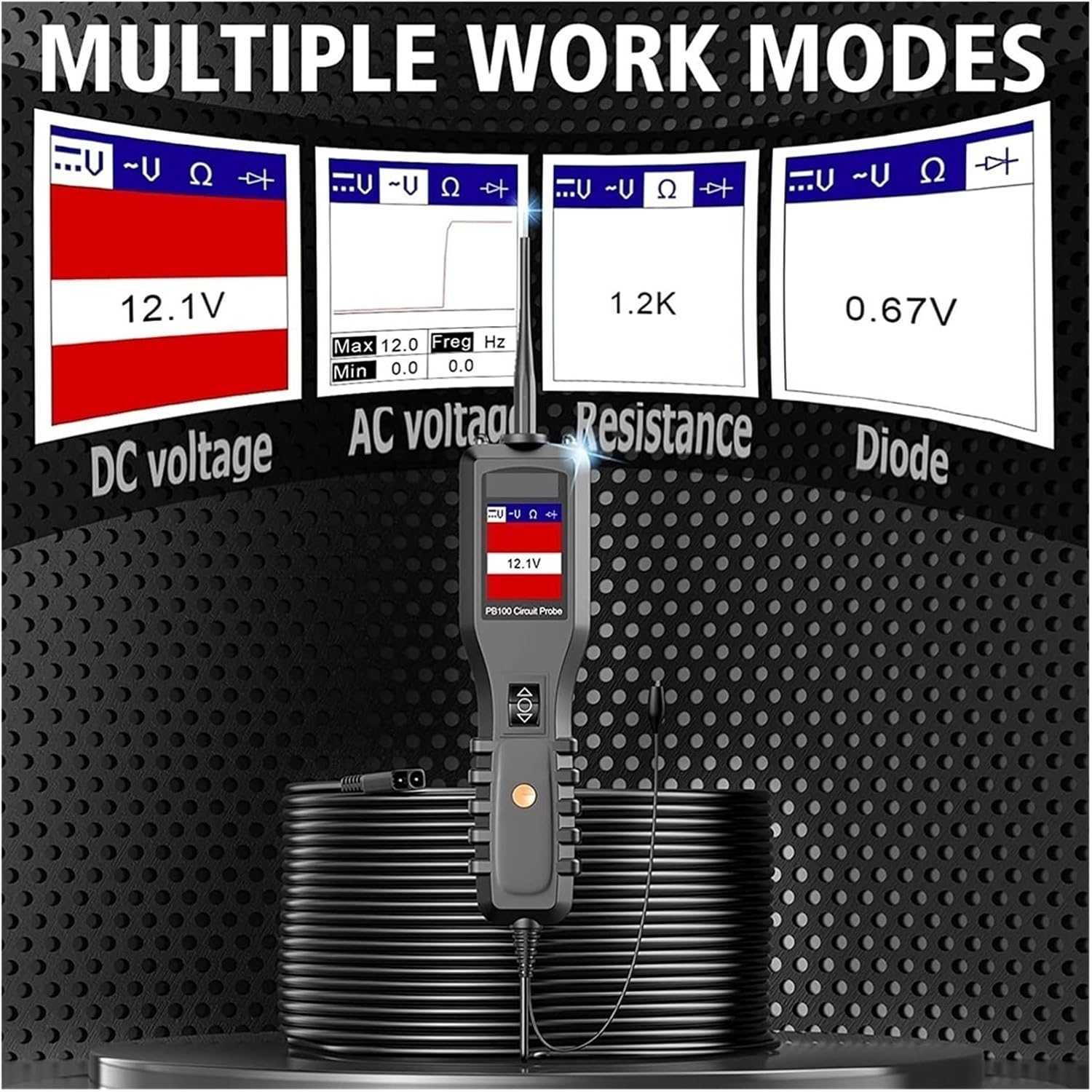

Product Features:Resistance range: 0-100k;Rated current: 1-10 amps;Frequency response of sound channel: 0Hz to 10Khz.Perform current injection, measurements, ground testing, polarity testing, continuity testing and component activation.Ergonomic case design features a waterproof, rugged blow-molded case for easy handling and storage.There are 4 modes for diagnosing the electrical system. (DC voltage, AC voltage, resistance, diode)AC-RMS, AC peak-to-peak, frequency and pulse width for signal testing.High Voltage Capability: Displays up to 60 volts with 0.1 volt resolution.8 amp circuit breaker with automatic reset, no need to push a button.Three additional modes: min/max/sound monitoring.Automatic detection of positive, negative, open.Large color LCD display with easy-to-navigate user menus.Comes with an additional 20' extension cord.Look for shorts to ground and voltage.

• Ergonomic case design features a waterproof, rugged blow-molded case for easy handling and storage.
• Once you extract the DTC from the vehicle and realize that the troubleshooting starts with some kind of sensor circuit, you can perform a quick test to verify the code. Sensors can be easily tested while using the tool.Voltage and Polarity Test
• With the tool in DC voltage mode, touch the probe tip to the positive circuit. The red LED lights up, and the LCD displays the voltage with a resolution of 0.1V. A beep will sound.
• Features a built-in 8 amp circuit breaker to protect against circuit overload and overheating. This device conducts the battery current directly into the circuit you touch.
• When connected, the LED indicator on the front of the device will show the battery voltage. You can use it to determine a range of things. The alternator can be checked quickly by plugging it in and starting the car.
