Nanopi R5S Router 4GB Ram 64GB eMMc RK3568 Development Board OpenWRT A55 HDMI2.0 2.5G Gigabit Network Port (No Power Supply)
Product details
| Management number | 219739499 | Release Date | 2026/05/03 | List Price | $58.00 | Model Number | 219739499 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

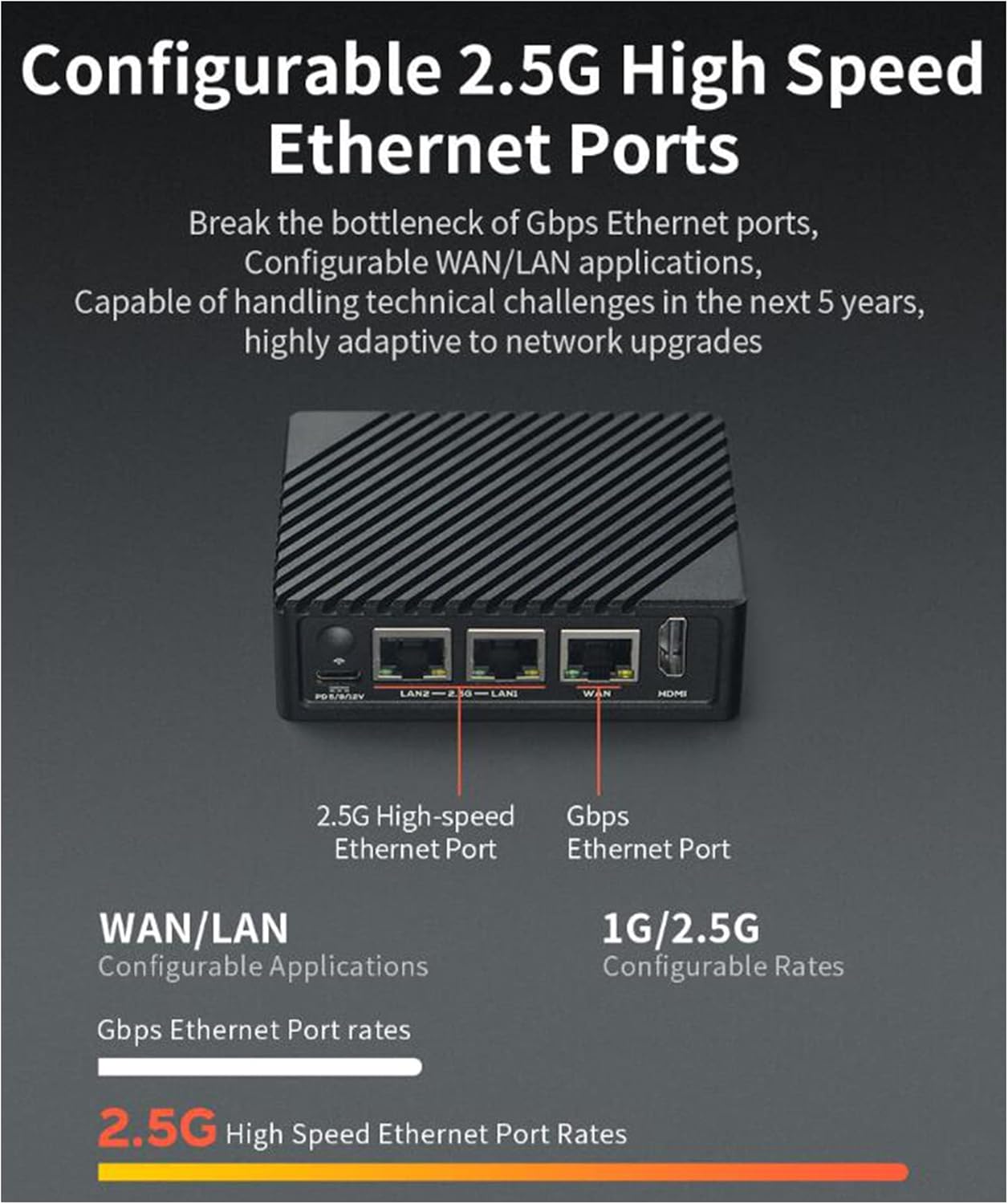

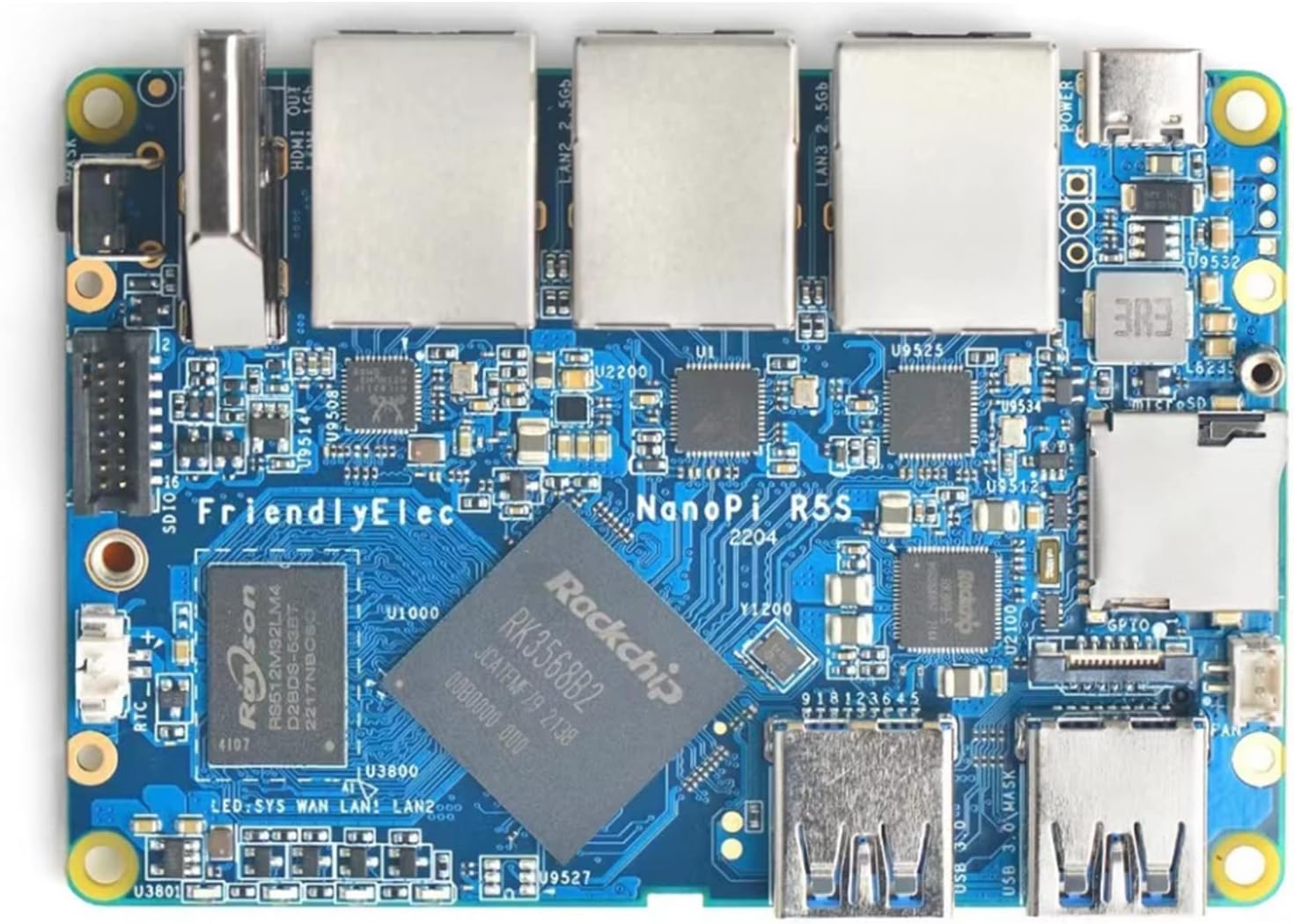

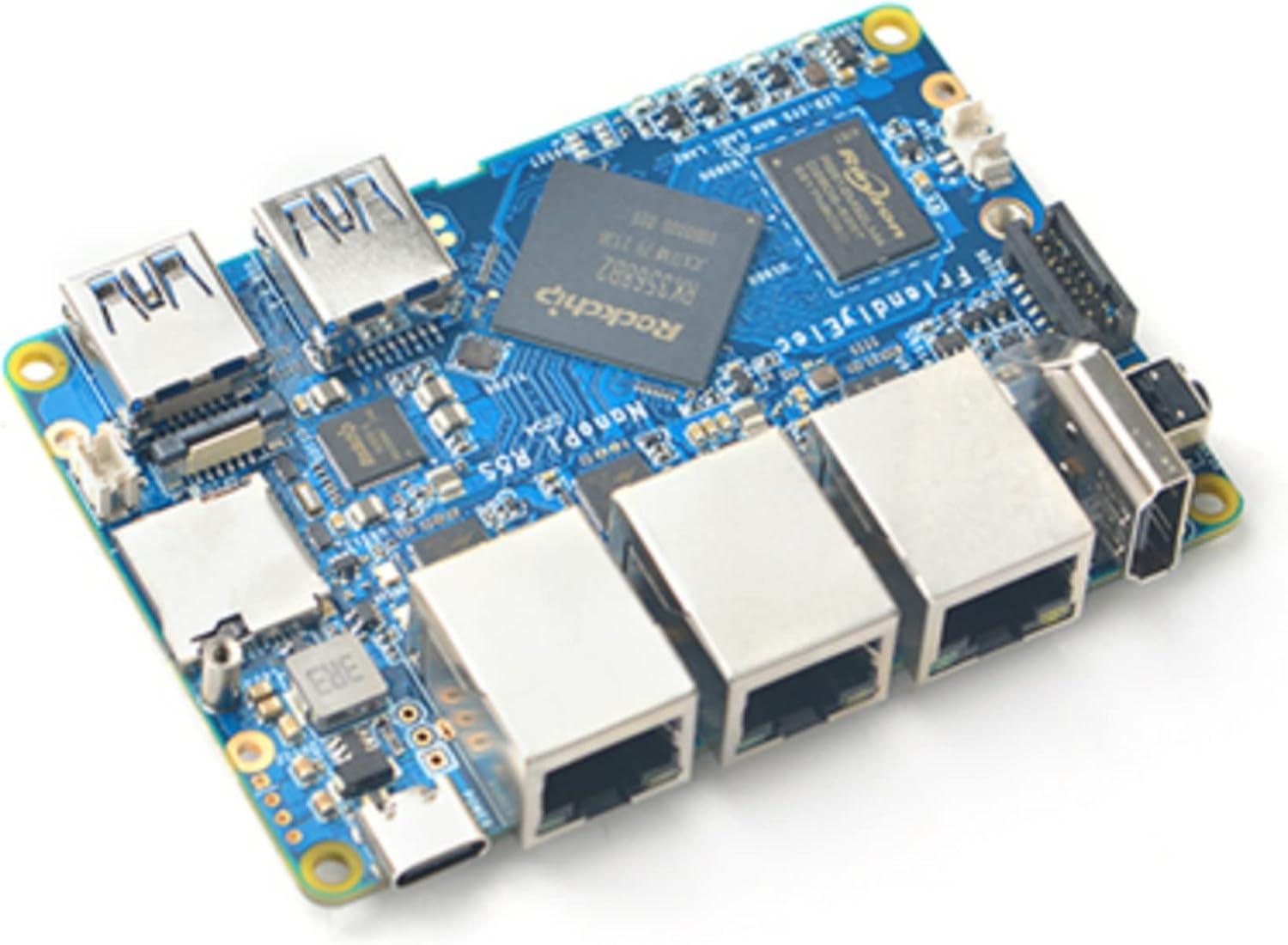

Product Introduction SoC: Rockchip RK3568B2 CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz GPU: Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder NPU: Support 0.8T RAM: 2GB / 4GB LPDDR4X Flash: 8GB/16GB eMMC Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet USB: two USB 3.0 Type-A ports HDMI: -support HDMI1.4 and HDMI2.0 operation -support up to 10 bits Deep Color modes -support up to 1080p@120Hz and 4096x2304@60Hz -support 3-D video formats PCIe: M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc microSD: support UHS-I GPIO: -12-pin 0.5mm FPC connector -up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs SD/MMC/SDIO/I2S: -2x8-pin 1.27mm connector -Compatible with SDIO3.0 protocol -Compatible with SD3.0, MMC ver4.51 -4bits data bus widths -1x I2S with 2x SDO and 3x SDI Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2) others: -2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS -MASK button for eMMC update -one 5V Fan connector Power supply: USB-C, support PD, 5V/9V/12V input PCB: 8 Layer, 62x90x1.6mm Ambient Operating Temperature: 0℃ to 70℃
- Package Introduction: Nanopi R5S (4GB Ram 64GB eMMc) + Mental Case
- CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz
- GPU: Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
- VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
- NPU: Support 0.8T
- Ambient Operating Temperature: 0℃ to 70℃
| Brand | MiiElAOD |
|---|---|
| Color | No power Supply |
| Frequency | 2 GHz |
| Model Name | Nanopi R5S |
| Manufacturer | MiiStore |
| BuiltIn Media | Nanopi R5S |
| Control Method | Touch |
| Number of Ports | 2 |
| Antenna Location | Home |
| Operating System | RouterOS |
| Security Protocol | WPS |
| Compatible Devices | Personal Computer |
| Data Transfer Rate | 2.5 Gigabits Per Second |
| LAN Port Bandwidth | 2500 Mbps |
| Frequency Band Class | Single-Band |
| RAM Memory Installed | 4 GB |
| Warranty Description | 90 Days |
| Wireless Compability | 802.11a/b/g/n/ac |
| Connectivity Technology | Ethernet, USB |
| Maximum Upstream Data Transfer Rate | 500 Megabits Per Second |
| Other Special Features of the Product | WPS |
