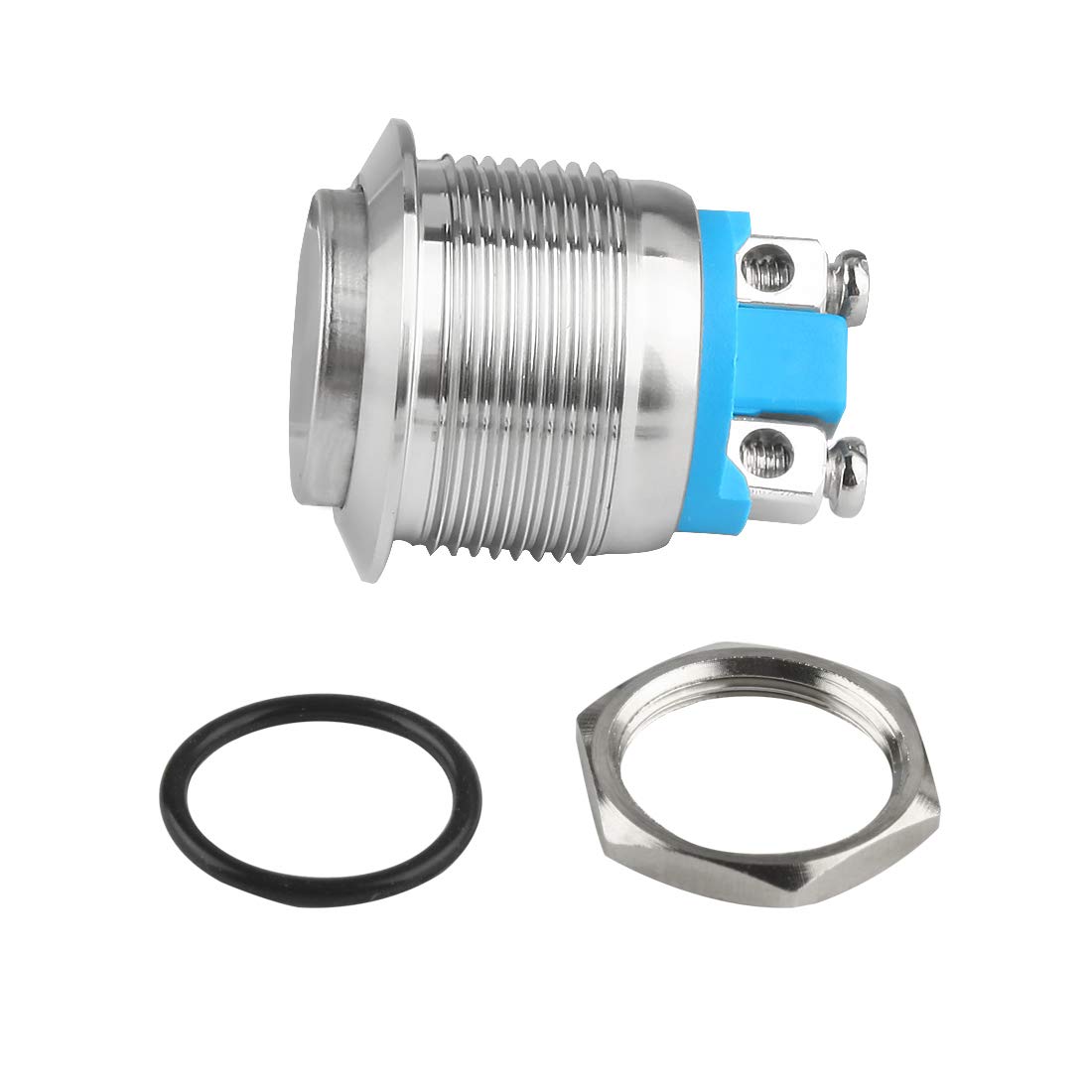

Larcele 19mm Push Button Switch Waterproof Momentary Metal DIY Switch 1No Stainless Steel Shell JSANKG-17,5 Pieces(Screw Terminal,High Round Head)
Product details
| Management number | 218091898 | Release Date | 2026/05/03 | List Price | $8.40 | Model Number | 218091898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Material: Sturdy Stainless Steel button and body, Plastic, Electric Parts.
- Switch rating : 5A/250V AC. Easy to install: Screw clamp type terminals, don’t need to solder.
- A push button is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition.
- Operating temperature: -20~+55 ℃. Contact resistance: less 50 MΩ. Insulation resistance: over 1000 MΩ.
- Commonly used as vehicle horns, ignition switch, doorbells, home appliances button,and car, engineering equipment project.
| Color | Screw Terminal,High Round Head |
|---|---|
| Model | JSANKG-17US-FT19QA-H10L-K4 |
| Terminal | Button,screw,screw Terminal,solder |
| Brand Name | Larcele |
| Unit Count | 1 Count |
| Item Weight | 0.01 Ounces |
| Part Number | LCE-WD19-US-JSANKG-17 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | Larcele |
| Actuator Type | push button switch |
| Material Type | Metal, Plastic, Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Clamp,screw,solder |
| Control Method | Push Button |
| Current Rating | 5 Amps |
| Operation Mode | ON-NONE-OFF |
| Controller Type | Push Button |
| Number of Items | 5 |
| Contact Material | Stainless Steel |
| Operating Voltage | 250 Volts |
| Specification Met | Ip |
| Compatible Devices | Any device requiring a momentary switch |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | ip65 |
