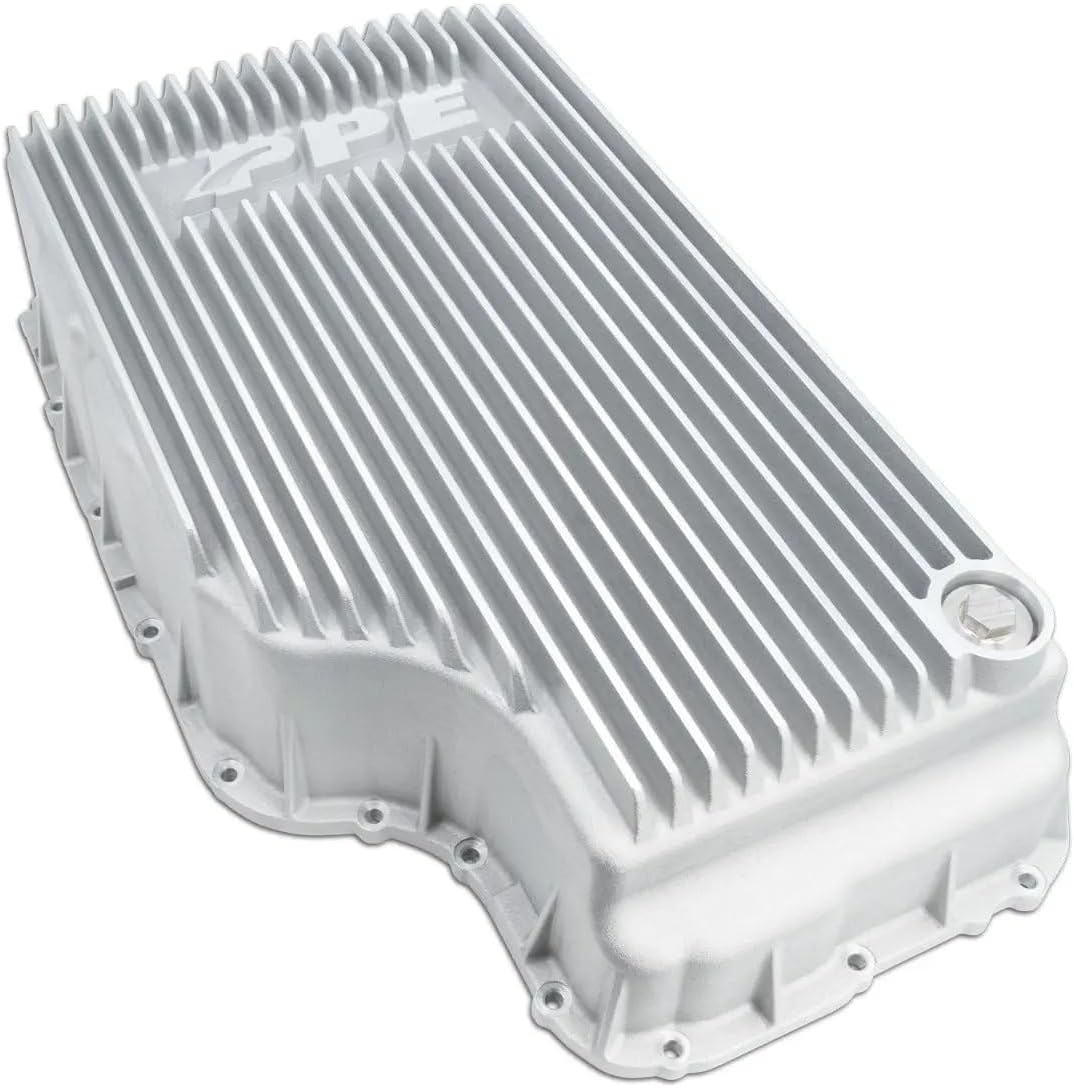

Heavy-Duty Cast Aluminum 10R140 Transmission Pan for 2020-2022 Ford Super Duty Diesel by Pacific Performance Engineering

Extreme heat shortens transmission lifespan. As temperatures rise, transmission fluid's viscosity drops, thinning the protective gear and bearing lubricant. This could lead to early wear and possible failure. Our 10R140 Heavy-Duty Cast Aluminum Transmission Pans endure high temperatures. Crafted from premium A356.0-T6 aluminum alloy, the PPE pan provides an extra 8 quarts of fluid capacity, ensuring sustained heat management and performance. Deep external cooling fins maximize heat-wicking surface area, efficiently dispersing heat to keep your transmission cool under pressure. These fins also fortify the pan's bottom and enhance impact resistance. Built-in baffles at the pan's base increase fluid-to-cast-aluminum surface contact, enhancing heat transfer. They also minimize fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with longitudinal external fins, they create a rigid, cross-bracing structure, distributing loads better and boosting impact resistance. The drain plug features a potent, high-temperature-rated neodymium magnet capturing ferrous metal particles, providing additional transmission protection. Keep your 10-speed transmission running longer, healthier, and cooler with PPE.

• High-grade A356.0-T6 aluminum alloy construction
• Meticulously cast using permanent steel molds for a sleek, uniform finish
• Boosts fluid capacity by 8 quarts for enhanced thermal management
• Tall, 3/4-inch external fins for improved heat dissipation and impact resistance
• Deep, one-inch internal baffles for optimized heat absorption and fluid stability
• Integrated external fins and internal baffles create a robust Cross-Bracing structure
• Cast-in gussets for reinforced transmission housing flange support and rigidity
• 304 Stainless steel drain plug with built-in, high-temperature neodymium magnet and Viton O-ring
• Fitted with a 1/8-inch NPT port, complete with pre-installed NPT plug
• Designed to work with OEM gasket and filter
