Fafeicy 30AMP RV Power Inlet Outlet Kit Electrical Systems Locking Connector Plug Box for Marine and Caravan Use

Spec: Item Type: RV Power Inlet Outlet Shore Kit Material: PVC, Brass Rated Current: 30A Plug Specification: NEMA L5-30R Socket Specification: NEMA L5-30P Installation Steps: 1. Position Determination: Select a suitable location on the shell​, avoid any pipes or other obstacles, and ensure that all power tools are properly grounded. 2. Marking and Cutting: Use a hole saw to mark​ and cut holes with a diameter of 2-7/8in on the shell​. 3. Placement Inlet: Place the air inlet into the opening and use it as a model to mark​ the location of the installation hole, then use a 1/8in drill bit to drill the installation hole. 4. Remove the Rear Baffle: Remove the 2 screws at the front end of the air inlet and remove the rear baffle. Wiring Specifications: Peel off the 3/4 inch insulation layer from the wire end, ensure the wire cores are clean and non corrosive. If necessary, cut off the corrosive part and re strip the wire. Wiring Color Code: 1. 125V 3 Wire System: Black: Live wire; White: Neutral wire; Green: Equipment ground wire 2. 125/250V 4 Wire System: Black: Live wire (125V); Red: Live wire (125V); White: Neutral wire; Green: Equipment ground wire 3. Insert the wire into the terminal hole, tighten the terminal screw to a torsion of 20in-lb, and ensure that there is no insulation remains. PackageList: 1 x NEMA L5-30R Plug 1 x Plug Protective Cover 1 x User Manual 1 x NEMA L5-30P Socket 1 x Socket Manual

• Reliable PVC Construction: Designed with heavy duty PVC material; withstands high temperatures for stable, worry- power connections in multiple environments.

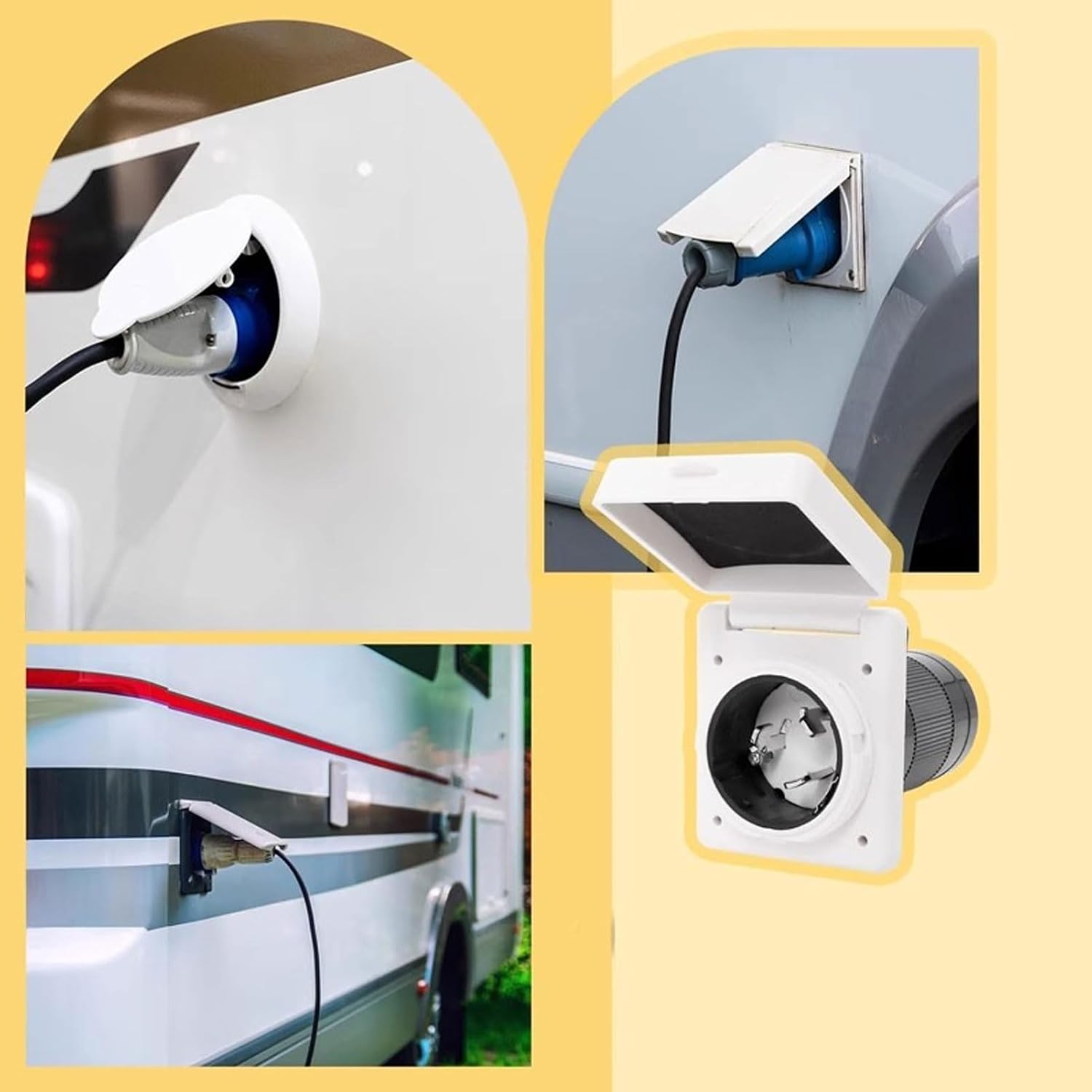

• Versatile Application: Ideal for use in RVs, trailers, caravans, and ships; compatible with 10-8AWG wires for various applications.
• Long Lasting Durability: Ni plated brass rods resist oxidation and prevent damage from sun exposure, ensuring a long service life.
• Effortless Installation: Colour coded terminals offer quick and easy installation; requires standard tools and wires, ideal for personal and professional setups.

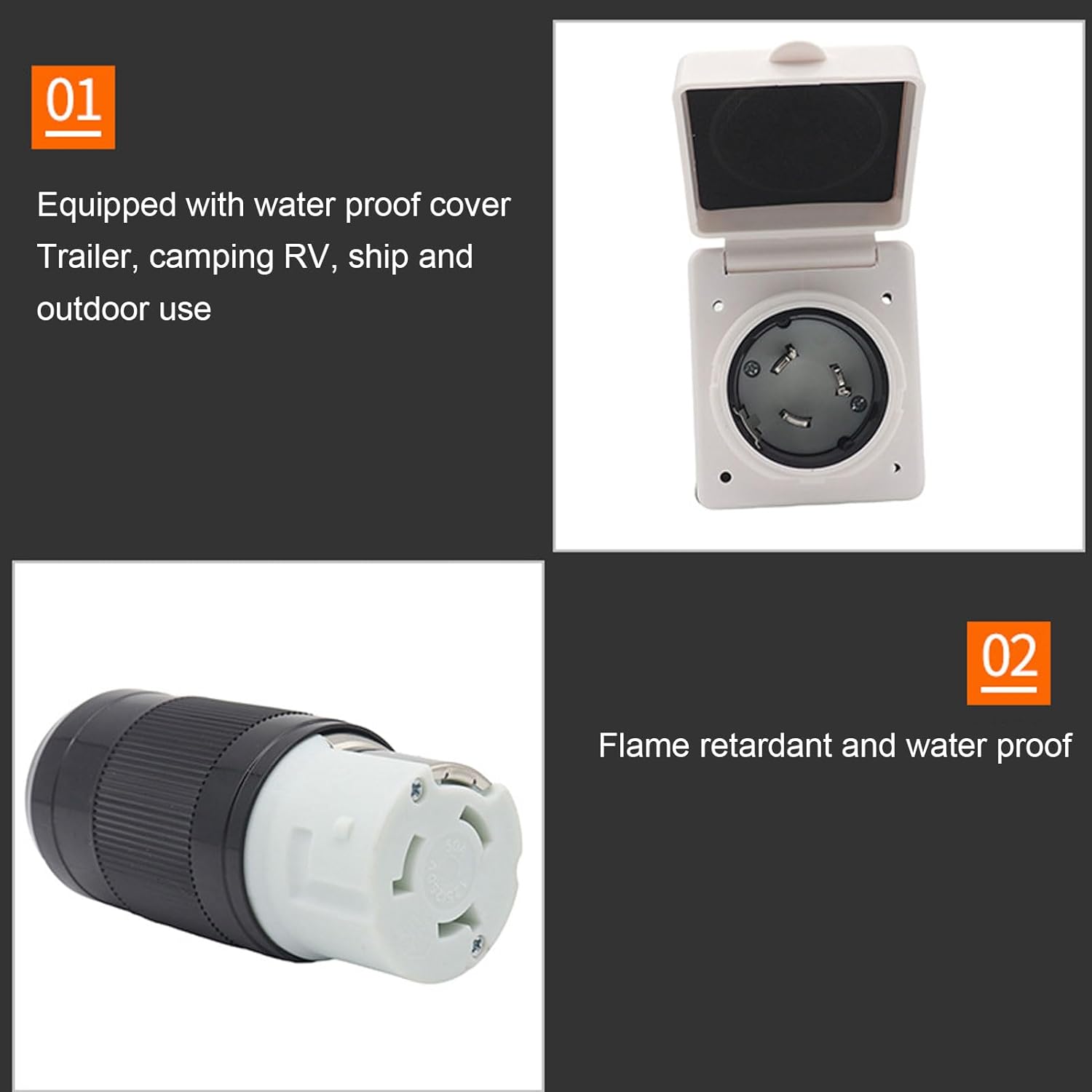

• Complete Power Solution: Includes NEMA L5-30P male and L5-30R female connectors with 30A capacity for standardized connections in RVs and trailers.
