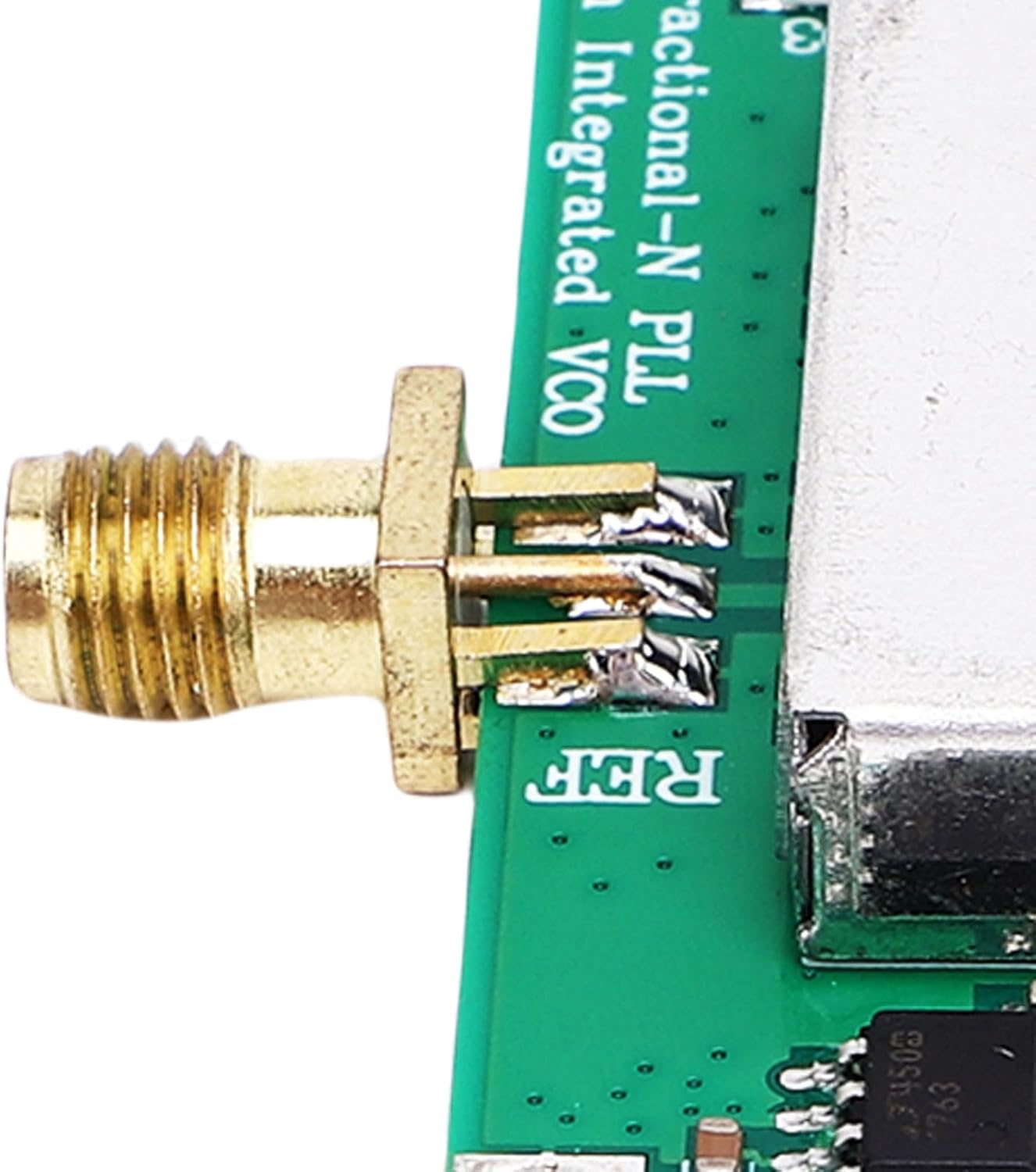

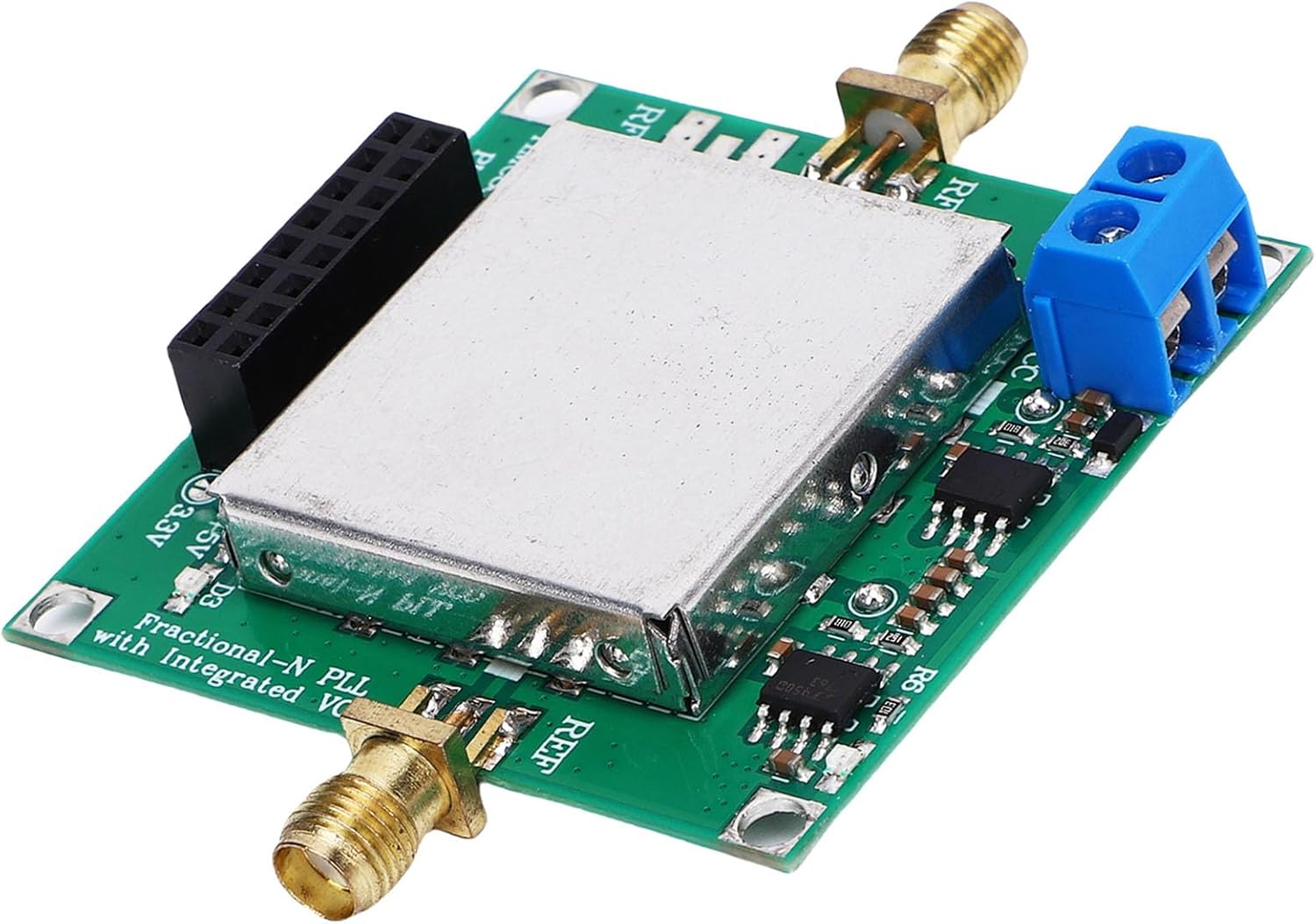

Fabater Locking Loop Module, Wide Frequency Range 25 MHz to 6000 MHz Low Noise Phase Locked Loop Module, PLL with Adjustable RF Output Power for Cellular Communication Microwave

1. Wide Frequency Range And Versatility: The locking loop module is a low noise, broadband fractional N phase locked loop (PLL) that integrates a voltage controlled oscillator (VCO) with a frequency range of 1500 MHz to 3000 MHz. 2. Excellent Phase Noise And Performance: With an impressive noise floor of less than -170 dBc/Hz, this PLL module minimizes blocking effects, enhances sensitivity, and improves transmit spectrum purity. 3. Enhanced Loop Bandwidth And Spectrum Performance: Featuring an integrated phase detector (PD) and modulator capable of operating at frequencies up to 100 MHz, the locking loop module achieves wider loop bandwidths and excellent performance. 4. Flexible RF Output Power Control: The module offers a unique RF output power control feature with adjustable levels from 0 to 9 dB in 3 dB increments. This flexibility allows users to tailor the output power to specific system requirements, coupled with a mute function for quiet operation when necessary. 5. Accurate Frequency Generation: The locking loop module supports an accurate frequency mode that enables users to generate output frequencies with zero Hz frequency error. This level of accuracy is essential for applications requiring accurate timing signals. Specification: Item Type: Locking Loop Module Model: HMC833LP6GE Material: PCB Frequency Range: 25 MHz-6000 MHz VCO Range: 1500 MHz-3000 MHz Phase Noise Performance: Application: 1. Cellular Communication Infrastructure 2. Microwave Radio 3. WiMax, WiFi 4. Communication Testing Equipment 5. Cable TV Equipment 6. DDS Replacement 7. Aerospace 8. Tunable Voltage Source with No Spurious Performance How to Use: Connect to use. packing list: 1 x Low Phase Noise Frequency Generator Module

• [Wide Frequency Range] This low noise broadband fractional N phase locked loop module features a wide frequency range of 25 MHz to 6000 MHz, with an integrated voltage controlled oscillator (VCO) from 1500 MHz to 3000 MHz. Ideal for versatile applications such as cellular communication, microwave radio, and WiFi, it provides reliable frequency generation and tuning capabilities for various RF systems, ensuring compatibility and performance in diverse environments.
• [Low Phase Noise] With an impressive phase noise performance of less than -170 dBc/Hz, the module minimizes blocking effects and enhances sensitivity. This low phase noise characteristic improves transmit spectrum purity, making it suitable for applications requiring high signal integrity, such as communication testing equipment and aerospace systems.
• [Enhanced Loop Bandwidth] Equipped with an integrated phase detector and modulator capable of operating at frequencies up to 100 MHz, the module achieves wider loop bandwidths and excellent performance. This enhancement ensures stable and accurate frequency synthesis, beneficial for broadband and high-speed communication applications.
• [Flexible RF Power Control] The module offers adjustable RF output power control with levels from 0 to 9 dB in 3 dB increments, along with a mute function for quiet operation. This flexibility allows users to tailor output power to specific system requirements, optimizing performance for cellular infrastructure, cable TV equipment, and other RF applications.
• [Accurate Frequency Generation] Supporting an accurate frequency mode that enables output frequencies with zero Hz error, this module is essential for applications requiring precise timing signals. Its Precision Machined makes it ideal for use in communication testing, DDS replacement, and other scenarios where frequency stability is .
