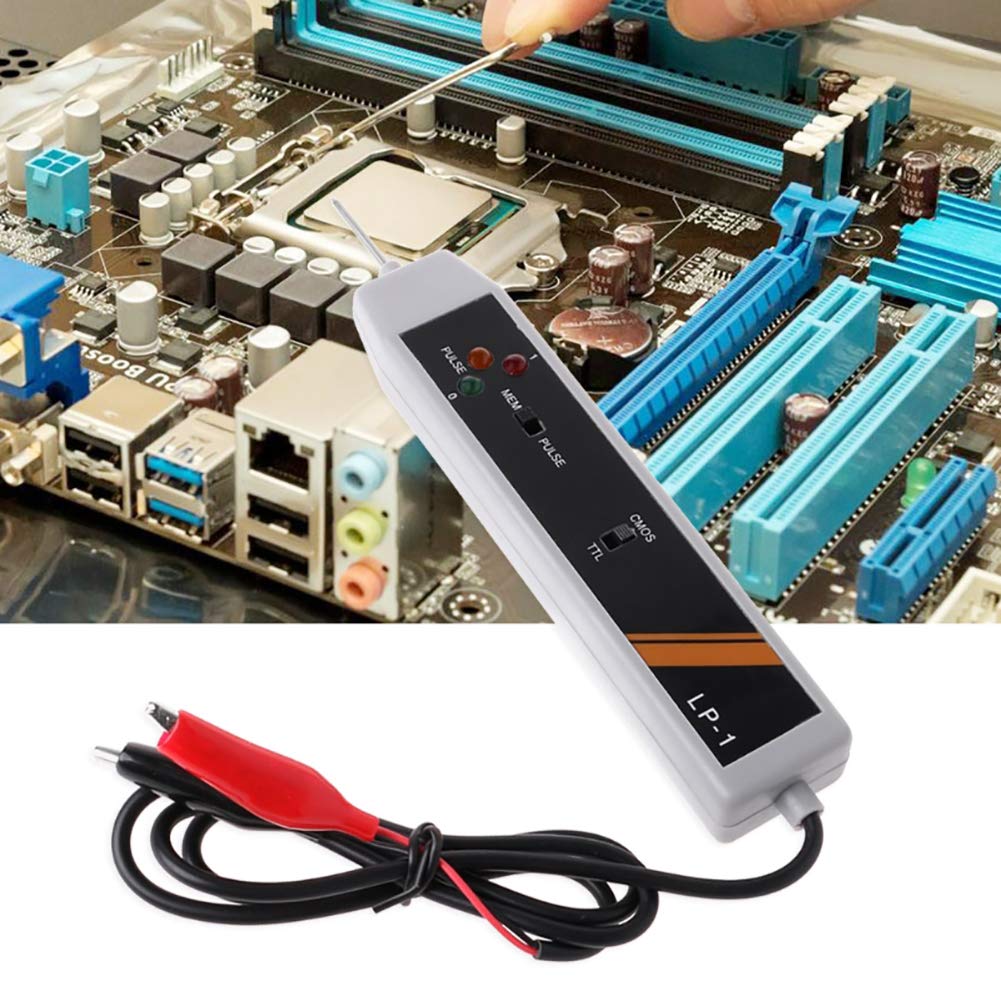

Cldkem Logic Probe DTL TTL CMOS Pulse Memory Logic Tester, Digital Logic Pulse Electronics Testing Tool for Logic Levels and Pulses Levels

HOW TO USE: (1)Connect RED clip to + terminal and BLACK clip to - terminal of the power source of the circuit under test. The supply voltage should not exceed 18V DC. (2)For TTL and DTL, set the upper select switch to the side marked "TTL", For CMOS, set the upper select switch to the side marked "CMOS". Contact the probe pin to the point to be tested. The LEDs will indicate its logic states: A) ALL LEDs off - High Impedance. B) Red LED on - High State (1) C) Green LED on - Low State (0) D) Orange LED on - Pulse (3) For detecting and storing pulse or level transition, set lower select switch to side marked "PULSE" first. Contact the probe pin to the point to be tested. The LEDs will indicate its basic state. Then set the lower select switch to side marked "MEM". The orange LED will light when any pulse or level transition is detected. The pulse direction, in comparison with the original basic states, can be determined. After use, reset logic probe by setting the lower select switch back to the side marked "PULSE".

• POWER SUPPLY: The power probe is powered by the circuit under test. Power Supply by 5 to 15V battery. Power Supply protection is 18VDC/VAC.
• LED LIGHT & AUDIO INDICATIONS: This logic troubleshooting instrument will give visual (LED light) and audio indications for logic levels and pulses.
• COLOR CODED LEDS: The circuit probe, color coded LEDs Indicate high, low or pulsed logic states Audio beeper With two sounds: Hi & Low.
• PEN STYLE: Pen Style Logic Analyzer Handheld Circuit Tester+Extra Long Leads. Portable size and easy to operate.
• Handy, Quick and Easy - For DTL, TTL and CMOS.
