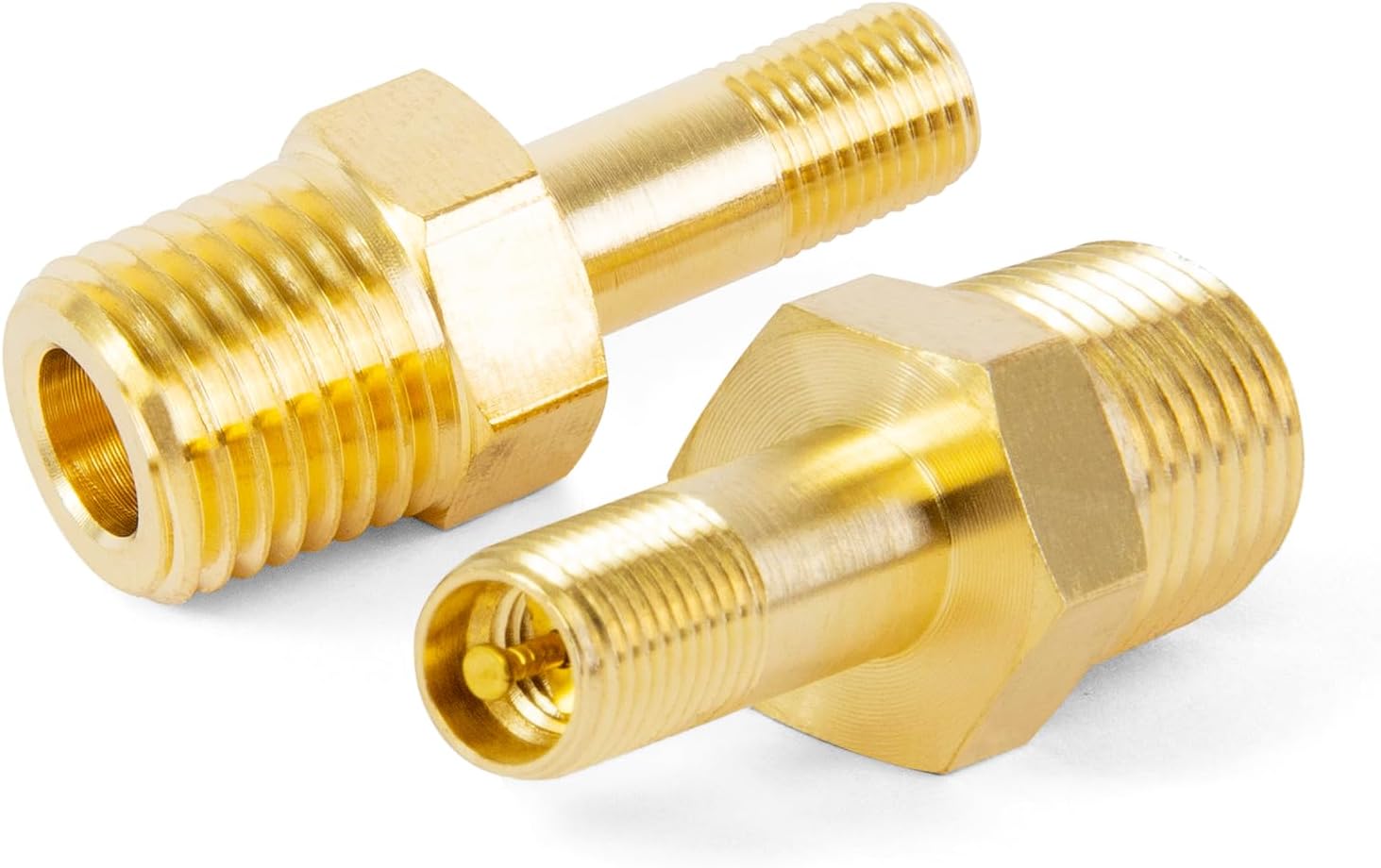

ChillWaves Brass Tank Valve, Standard Valve Core 1/4" NPT Anti-Corrosion Schrader Valve with Sealing Caps for Air Compressor Tanks(4-PACK)

Tank Valves are the components in the Air pressure system that play the roles of connection, control, reversal, diversion, sealing, and support.Note that the Tank Valve are US NPT standard threads with a 60 degree taper.Product introduction：1. NPT female and male threads are hard connections, which typically require sealing.2. Widely used on all kinds of tire inflatable and pressure bottle containers, pressure tanks, shock absorbers, air valves, airbags, wall-hung boilers, etc., for inflatable sealing or deflation.3. The threads are smooth and clear, easy to install, and a sufficient number of threads are designed to ensure that the joint is stronger after tightening and prevent loosening.4. When purchasing Tank Valves, consider the application as this will affect the material type, shape, size and desired durability. Valves are threaded or unthreaded and come in many shapes, styles, sizes and schedules (wall thickness)PACKAGE INCLUDED:4 x 1/4" NPT Male Tank Valve1 x Teflon tape

• SIZE - 1/4" NPT Male Tank Valve, with Sealing Cap, Threaded Valve Core and Brass valve body, Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
• MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.

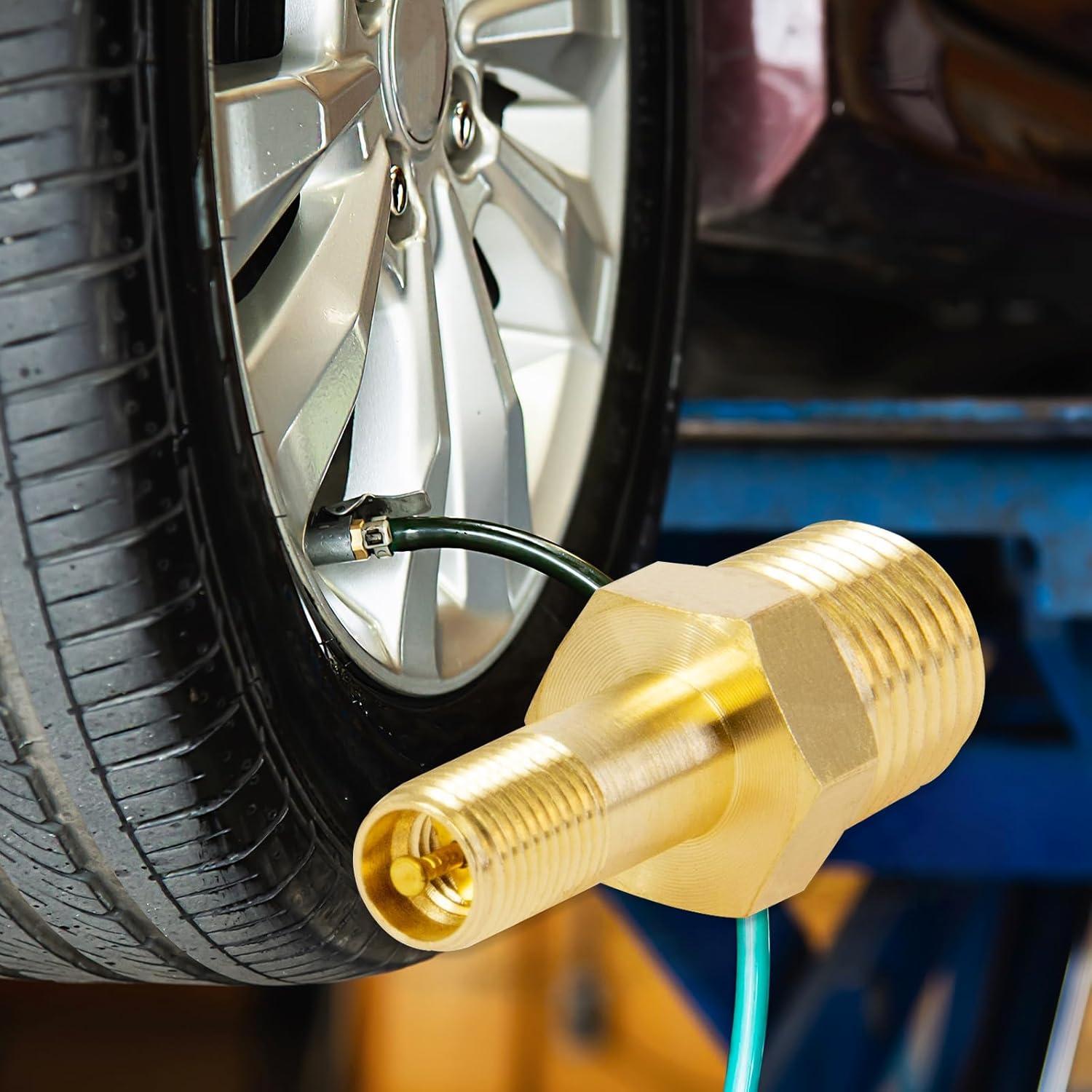

• USE - Suitable for air compressors, storage tanks, pressure testing, etc. The tank valve prevents air leakage while allowing air to pass through, and works with air compressor tanks to fill containers.
• WORKING PRESSURE & TEMPERATURE - 200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

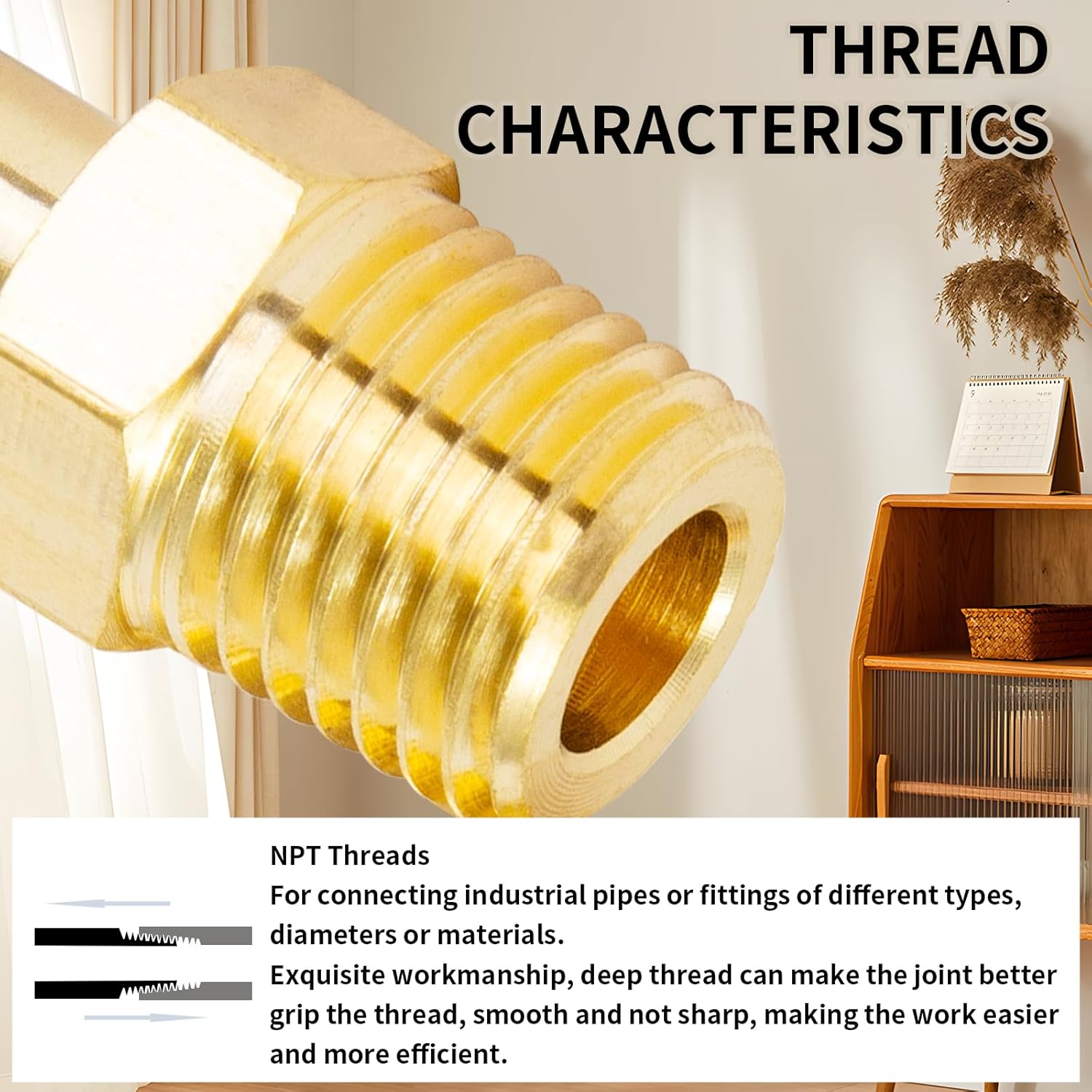

• PRODUCT DESIGN - NPT is a tapered pipe thread with a 60° taper, usually cannot be screwed to the end, one of the main functions of valves and gas nozzles is to control the flow of gas to realize the function of inflation and deflation.
