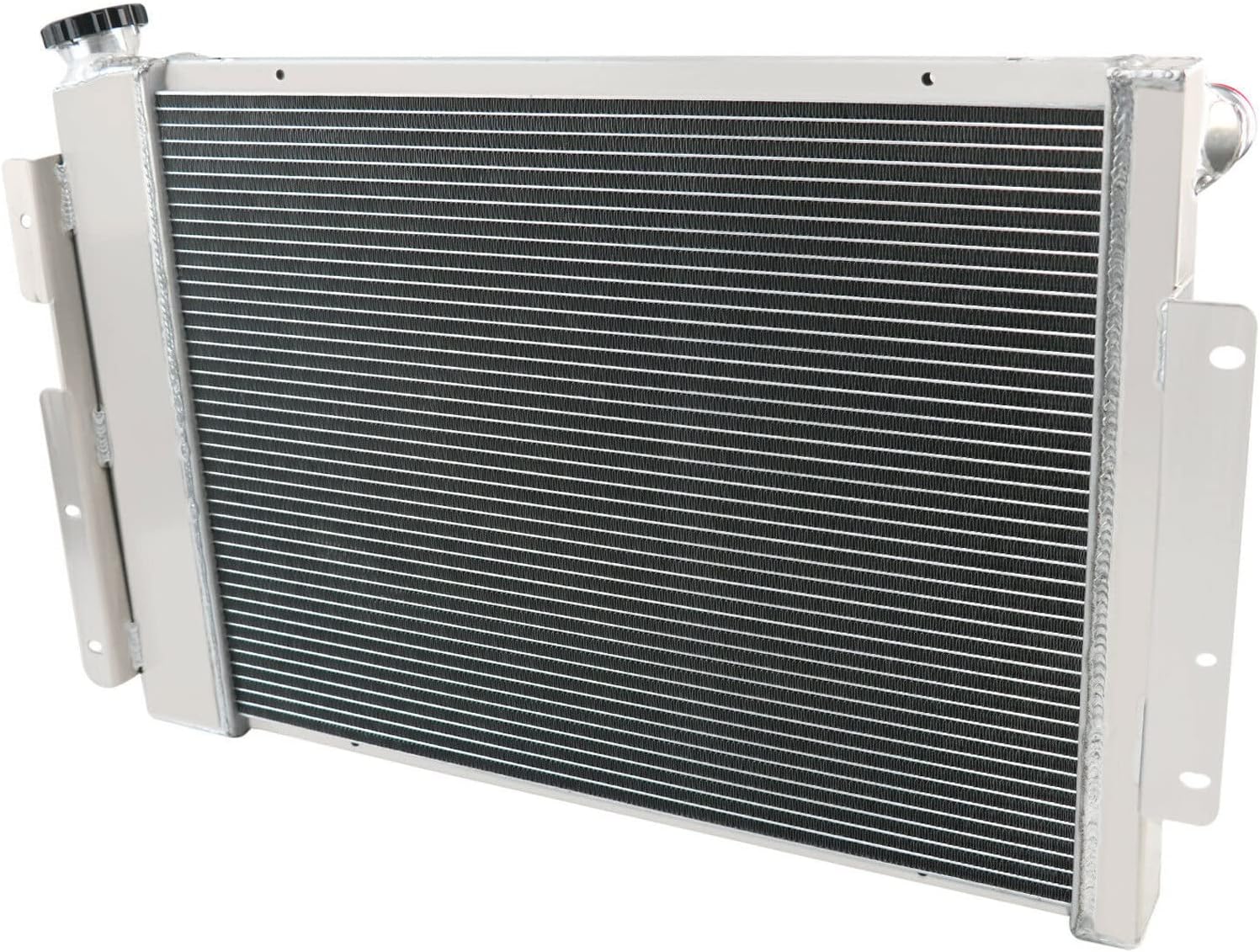

CC370 Aluminum Radiator For 1967 1968 1969 Chevy Camaro Pontiac Firebird Big Block 23" W Core L6 V8 3 Row Core Shroud Fan Thermostat Relay Kit

Fitment: For Chevy Camaro 3.8L l6 GAS 1967-1969 For Chevy Camaro 4.1L l6 GAS 1967-1969 For Chevy Camaro 4.9L/5.0L V8 GAS 1969 For Chevy Camaro 5.3L V8 GAS 1967-1969 For Chevy Camaro 5.4L V8 GAS 1968-1969 For Chevy Camaro 6.5L V8 GAS 1967 For Chevy Camaro 7.0L V8 GAS 1969 For Pontiac Firebird 3.8L l6 GAS 1967 For Pontiac Firebird 4.1L l6 GAS 1968-1969 For Pontiac Firebird 5.3L V8 GAS 1967 For Pontiac Firebird 5.7L V8 GAS 1968-1969 For Pontiac Firebird 6.6L V8 GAS 1967-1969 Part Number: 370 0370 DPI370 CC370 CU370 MC370 R0370 R370-ACP R370-LKQ Other Part Number: 040876433700 3010101 3010180 3010181 3010183 3014093 OEM Part Number: 3014094 3014095 3014096 675-01080B This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Fan Specification: Diameter : 16'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 120W Number of Blades: 10 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Amp Draw: 10amp Fan Thickness: 2.95" S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 120 watt motor will keep your engine cool. Thermostat Kit Installation: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator.

• Core Size : 22.76" H x 16.85" W x 1.73" T ; Overall Size : 30.24" H x 19.29" W x 4.37" T ; Upper Inlet: 1.58" located on the DRIVER side ; Lower Outlet: 1.77" located on the PASSENGER side.
• Transmission Cooler: ￠26×315×G1/4（Z）; Transmission: Automatic and Manual ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
• For Chevy BB Camaro/Firebird/Trams Am 1968 67-69 ; For Camaro Big Block 23"core 67-69 ; For Camaro/Firebird 67-69 ; For Pontiac Firebird Big Block ; For Pontiac Firebird / Trans Am 67-69 ; For CHEVY CAMARO BIG BLOCK / FIREBIRD TRANS AM 67-69 ; For CHEVY CAMARO/FIREBIRD T/A 5.7L V8 1967-69/ FIT 23 INCH WIDE CORE ONLY, FOR BIG BLOCK ENGINE ONLY
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• Package Include: 1 X 3-Row Aluminum Radiator ; 1 X Radiator Cap ; 1 X Aluminum Shroud ; 1 X 16" Fan (Includes mounting kits) ; 1 X Relay Kit
