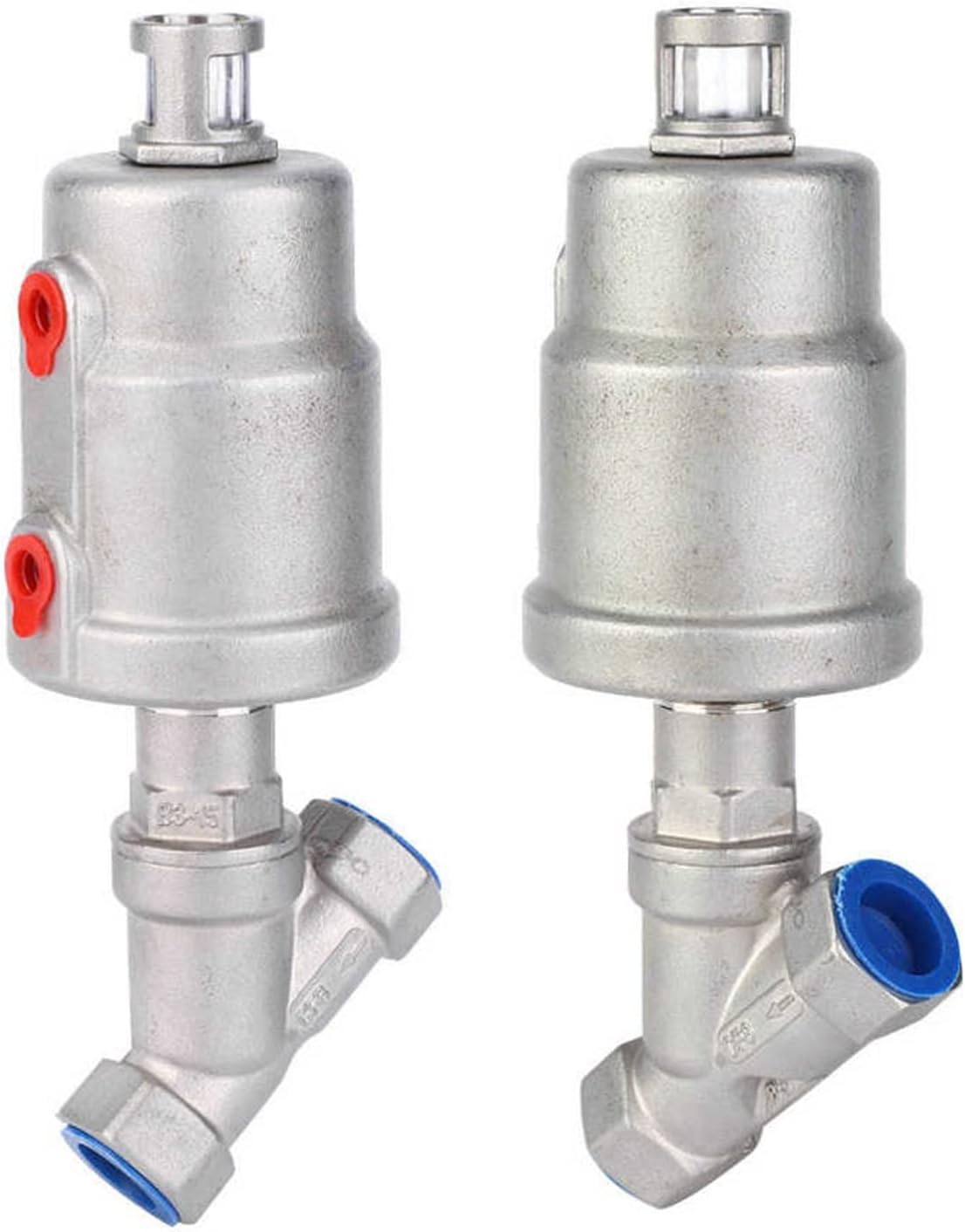

Actuator Ball Valve Stainless Steel Actuated Angle Valve Female Thread Pneumatic Steam Valve Solenoid Valve Manifolds(DN20)

Filter ValvesActuator Ball Valve Stainless Steel Actuated Angle Seat Valve Female Thread Pneumatic Steam Valve Solenoid Valve ManifoldsFeature:1. Visual position indication, can connect limit switch or emergency manual devices 2. The gas head can be rotated 360 degrees, and even the limit switch can be rotated 360 degrees. Easy to install one to two limit switches 3. Low-wear piston construction for easy operation and low consumption 4. No internal self-lubricating, maintenance-free 5. Optional smaller control head when fluid flows in from above the valve stem 6. Built-in metal connector for easy connection 7. Stem PTEE sealing to prevent dirt from being introduced 8. No water hammer, water hammer (water impact) is absorbed when fluid flows from under the valve stem 9. The flowing rate is 30% larger than the ordinary angle valve, the volume is smaller, and the fluid flowing is excellent. Specification:IteItem Type: Angle ValveMaterial: Stainless steel Standard(optional): DN15 (1/2in), DN20 (3/4in) Connection Form: Thread Pressure Environment: Atmospheric Pressure Use: Inverting Bore Diameter: 50mm Spool Sealing: PTFE Stem Sealing: PTFE/FKM Piston Sealing: FKM/NBR Applicable Medium: Water, Neutral Gas or Liquid, , Oil, Organic Solvent, Weak Acid or Weak Alkaline Solution Medium Temperature: PTFE: -10 ~ +180 Ambient Temperature: -10~ +60 Viscosity: Up to 600mm2;/S Control Medium: /Neutral Gas Control Pressure Range: 0.3-1MPa Widely Used: Beer and beverage, textile printing and dyeing, pharmaceutical, food processing, rubber machinery, organic or inorganic chemicals, high temperature sterilization, water/sewage treatment Package List:1 x Angle Valve
