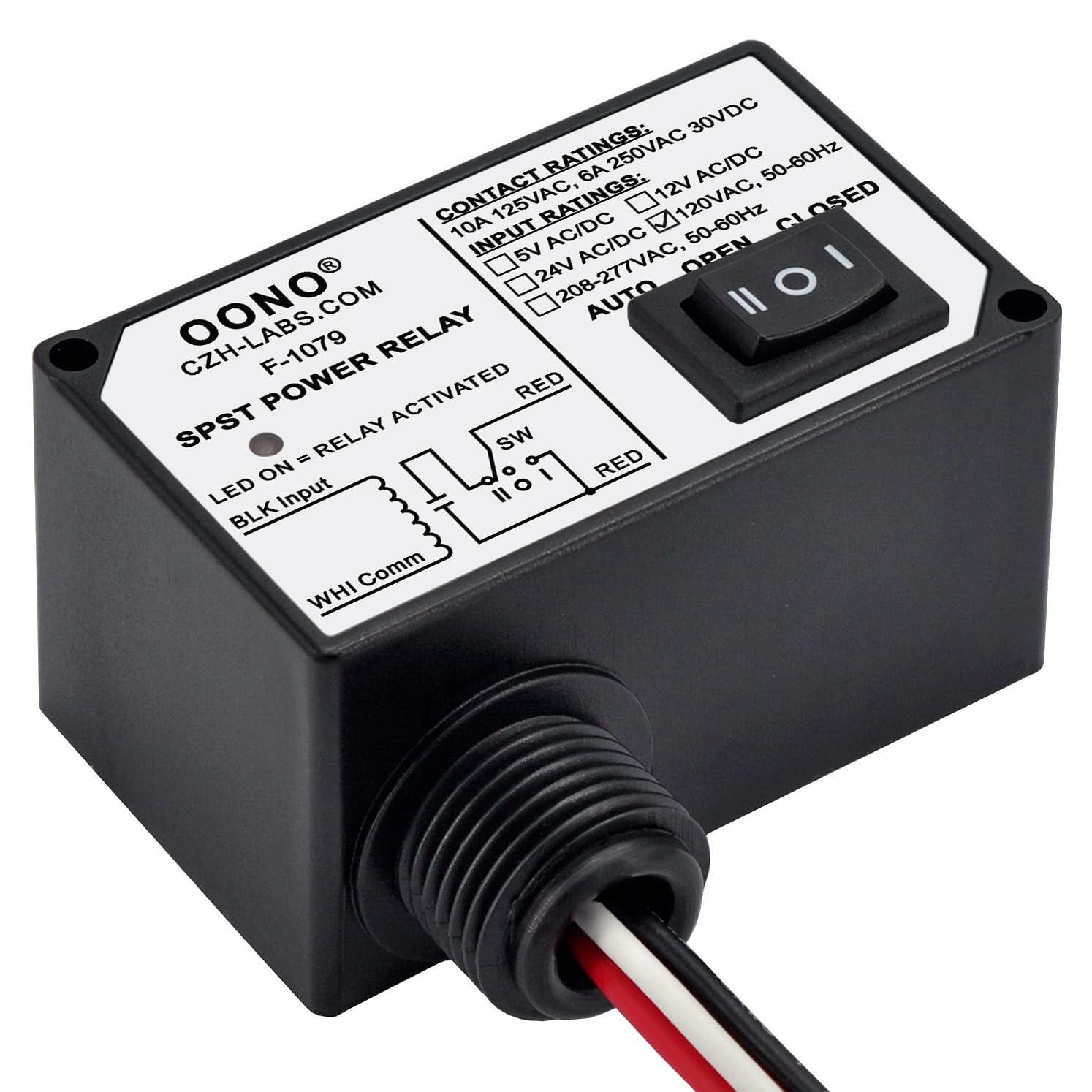

AC120V Power Relay Module SPSP-NO + Override Switch, 10Amp 125VAC, 6A 250VAC/30Vdc, Plastic Enclosure and Pre-Wired
Product details
| Management number | 218084864 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218084864 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick. 2, Input control signal version: AC/DC 5V, 12V, 24V, and AC 120V, 208-277V five versions selectable. When controlled by a DC signal, the two wires on the input end do not need to care about their polarities. 3, Output switch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC / 30VDC. 4, With override switch function, the output can be manually set to ON or OFF state without being affected by the input signal. It can also be set to AUTO mode, in which the output state is controlled by the input signal. 5, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. 6, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
- Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
- Input control signal voltage AC 120V, current 16mA.
- Output switch SPST (Single Pole Single Throw), rated current 10A 125VAC or 6A 250VAC / 30VDC.
- With override switch function, the output can be manually set to ON or OFF state without being affected by the input signal. It can also be set to AUTO mode, in which the output state is controlled by the input signal.
- This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.
- Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
| Brand Name | OONO |
|---|---|
| Part Number | F-1079 Series |
| Coil Voltage | 120 Volts (AC) |
| Contact Type | Normally Open |
| Manufacturer | CZH-LABS |
| Mounting Type | Wall Mount |
| Connector Type | Cable |
| Current Rating | 10 Amps |
| Contact Material | Copper |
| Specification Met | RoHS |
| Included Components | Relay Module |
| Contact Current Rating | 10 Amps |
| Minimum Switching Voltage | 5 Volts (DC) |
