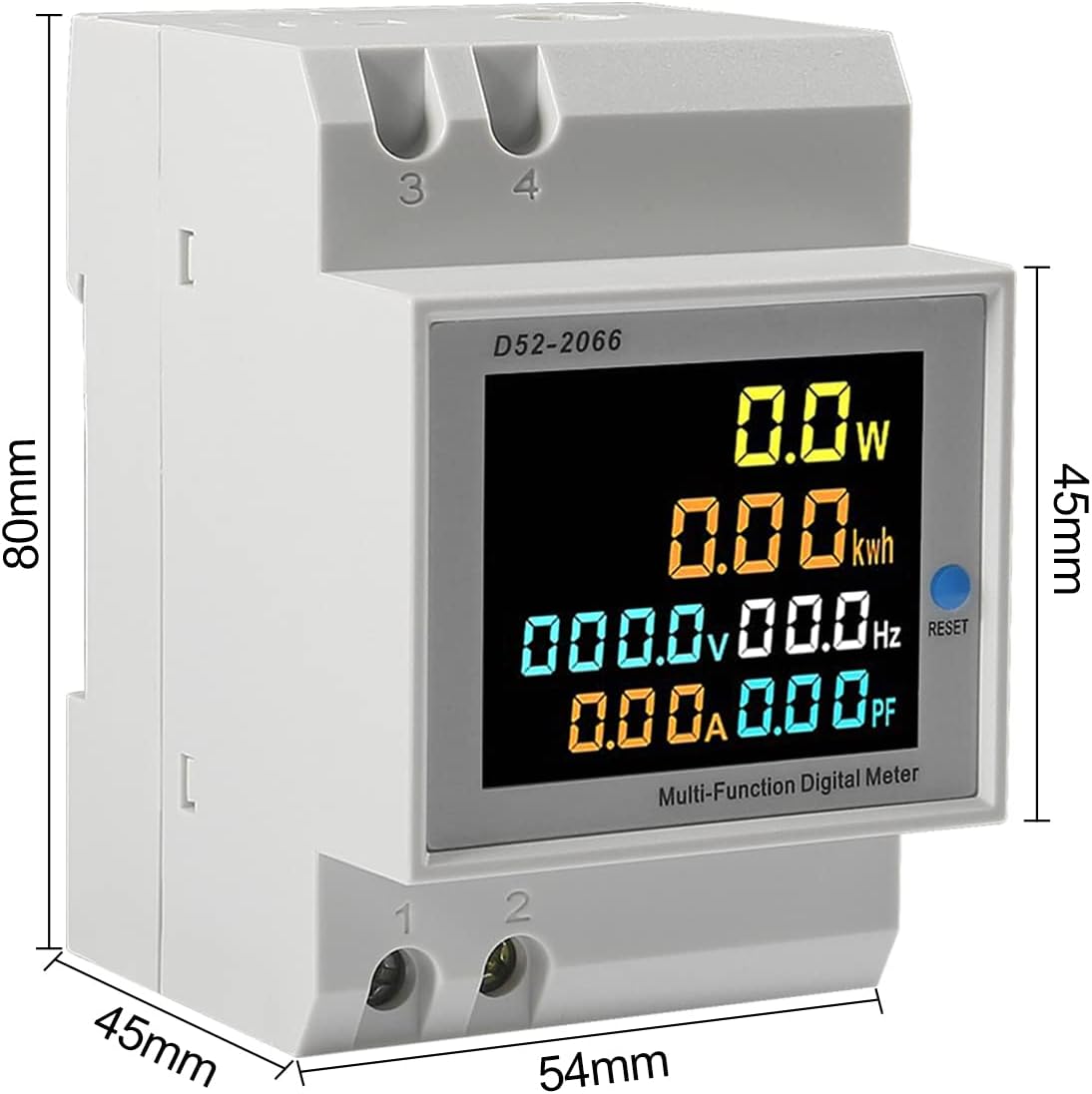

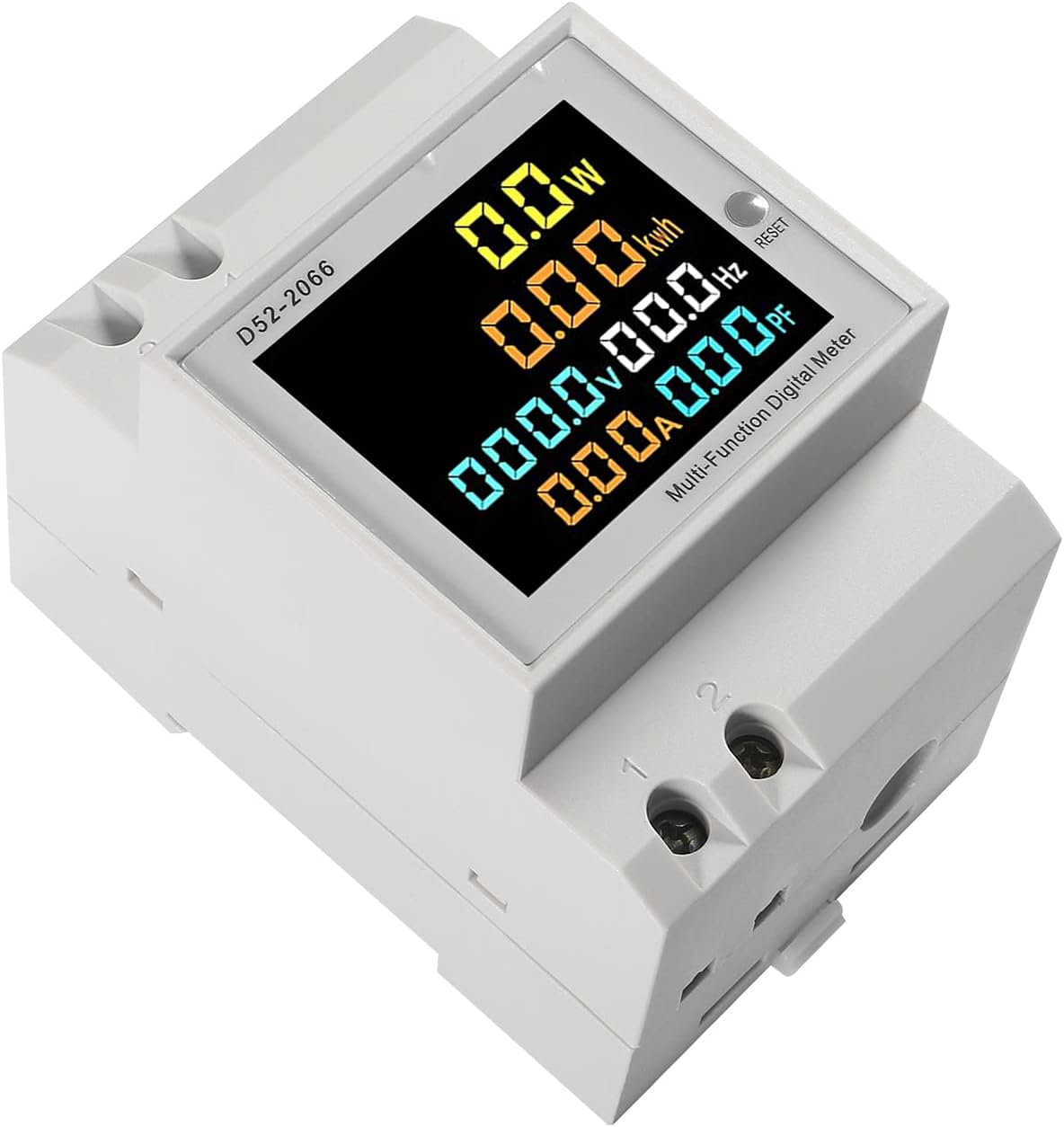

AC 40-300V 100A Electricity Usage Monitor Multimeter, 6 in 1 Multimeter Digital Power Energy Meter Single Phase Din Rail Voltmeter Ammeter Watt Frequency Power Factor Energy (Built-in CT)

Specification parameters:Active Power: 0.0~30000WElectric Energy: 0.00~99999KwhVoltage: AC 40.0~300.0VCurrent: AC 0.00~100.0AFrequency: 45.0~65.0HzPower factor: 1.00~0.00PFFunctions:-Electrical parameter measurement function:1.voltage, 2. current, 3. active power, 4. electric energy, 5. frequency, 6. power factor.-Data reset: Data reset for multiple measurement needs. Press the reset button for five seconds, the single phase energy meter will be reseted.-Store data when power off: when power off, the electric energy data will be stored and memorized, when the power is reconnected, it will go on cumulating data.-Large-screen LCD & Backlight function:Colorful LCD HD display, 178° viewing without dead angle, with backlight function, this ac power meter is clearly visible whatever day or night.-Built-in CT: Built-in sensor hole diameter: 10mm, Orbital installation (Not include the orbit). Wiring is more beautiful and concise-Rail installation: Standard guide rail 35MM can combined with circuit breaker and installed in the distribution box.6 in 1 Electricity Usage MonitorThis digital energy meter can measure AC voltage, AC current, active power, power factor, frequence and electric energy at the same time. The power meter have a colorful, full-view, highdefinition LCD to display the measure parameters.Package included:1*electricity usage monitor

• 【6 in 1 Multimeter】The large clear screen can display voltage/ current/ active power/ cumulative energy/ frequency/ power factor at the same time.
• Specification parameters: Active Power: 0.0~30000W; Electric Energy: 0.00~99999Kwh; Voltage: AC 40.0~300.0V; Current: AC 0.00~100.0A; Frequency: 45.0~65.0Hz; Power factor: 1.00~0.00PF
• 【LCD Display】Large-screen Colorful LCD HD display with all sight 178° view, with backlight function, easy to read in the dark or in bright light. Note: This watt meter can ONLY use to measure 50/60 Hz AC city electricity. Please don't use measure square waves, output of inverter, or non-standard sine waves, Otherwise the meter can be burnt or melted.
• 【Functions】Data reset; Store data when power off; Large-screen LCD; Backlight function. This electricity usage monitor features high quality ABS flame resistant material and high percision chip, making it safe to use with high precision. Helping you lower power consumption and save money.
• 【Applications】This 6 in 1 Electricity Usage Monitor is easy to install and can be used indoor or outdoor. it can be used in home, school, market, industry, laboratory, etc.
