6434 Sleeve Height and Counter Bore Gauge for All Diesel Engines, Cylinder Bore Gauge Range: 0-1.00", Graduation: 0.001", Reading: 0-100

Installation Instructions 1. Please indicator in base and lock set screw lightly. 2. For measuring counterbore, use the flat contact. For sleeves with coining beads, use the pointed contact. 3. Place the gauge on a flat surface and set the indicator to zero by rotating the bezel. 4. With the deck perfectly clean, a measurement can be taken directly to the counterbore shoulder and then to the protusion height of the sleeve. 5. For blocks with open water jackets, the indicator maybe reversed in the base, from the position shown. In this manner cylinders up to 5-1/2" can be straddled to check both sleeve height and counterbore depth.

• Universal Compatibility for All Diesel Engines - 6434 1-Inch Dial Indicator Sleeve Height and Counter Bore Gauge is designed to fit ​all diesel engine makes and models, ensures seamless measurements for cylinder sleeve height, counterbore depth, top dead center, piston-to-deck clearance, and valve protrusion. Perfect for ​automotive repair shops, aerospace maintenance, marine engineering, and heavy machinery diagnostics.

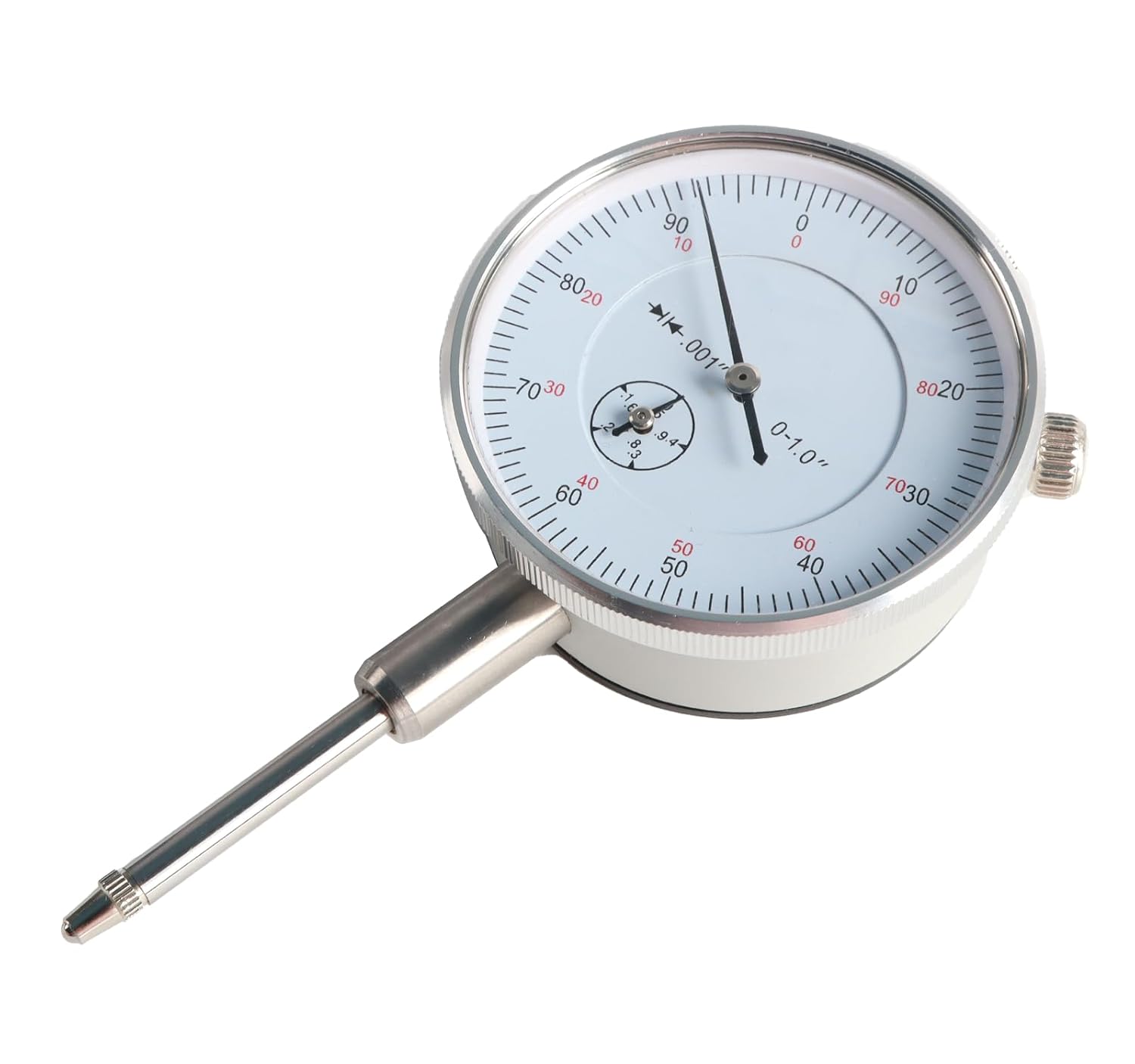

• High-Precision Accuracy (0-1.00" Range | 0.001" Graduation) - Engines Cylinder Bore Gauge is engineered for ​exact measurements with a 0-1.00" range, 0.001" graduations, and a 0-100 dial scale. Achieve consistent, repeatable readings around the entire bore for flawless engine builds.

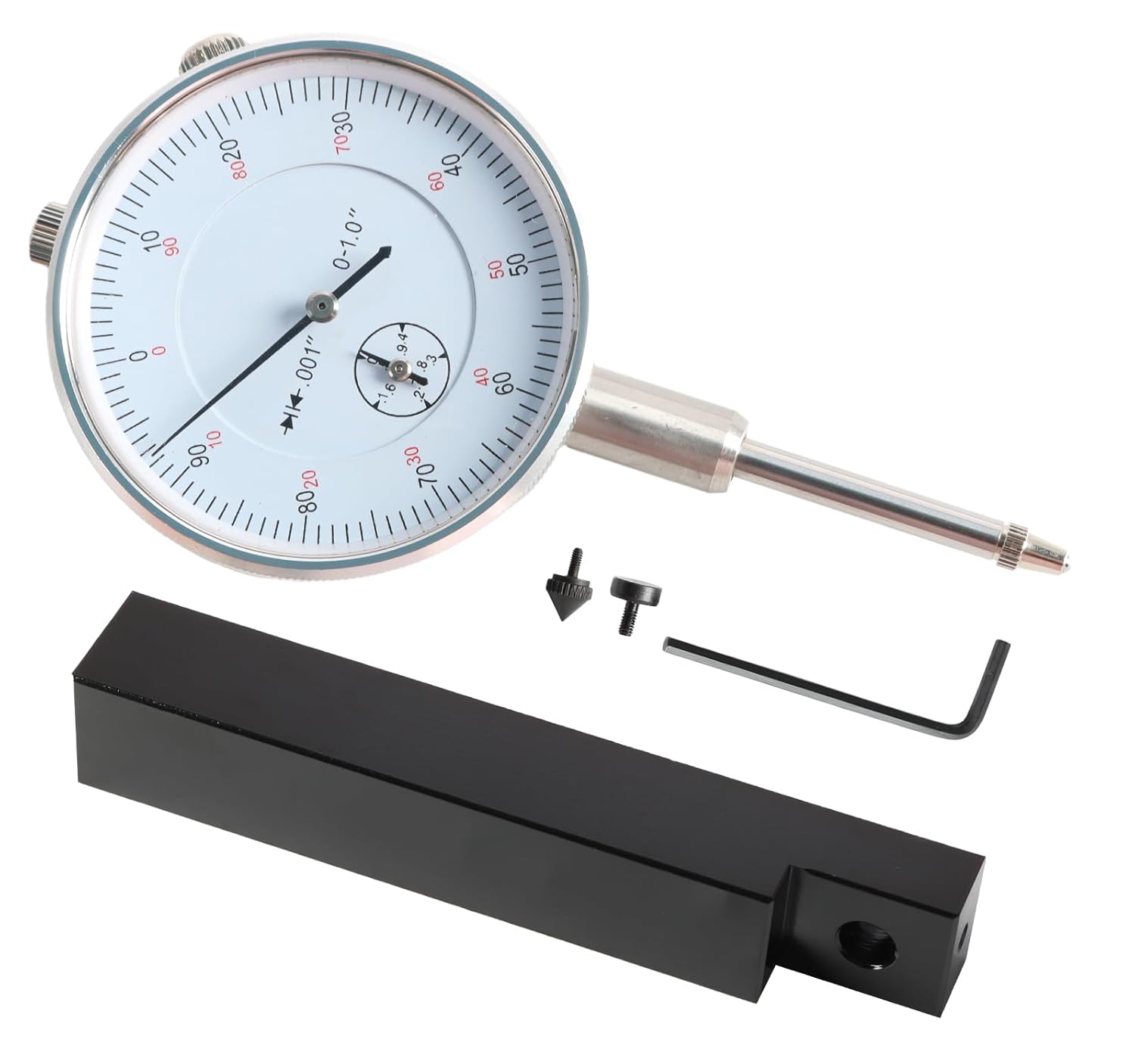

• Complete Ready-to-Use Kit - Includes: 4374 Dial Indicator (0-100 scale), 4375 Base, 4377 Flat Contact, 4378 Pointed Contact, Hex Wrench and Rugged Carrying Case
• Time-Saving Design - Self-centering base ensures fast, error-free alignment. Rotatable bezel with clamp for instant zeroing. Interchangeable contact points (flat/pointed) included.
• Multi-Purpose Design for Versatile Measurements - Switch seamlessly between tasks: ​pointed contact for cylinder sleeve height, and ​flat contact for counterbore depth. Compact and versatile gauge also measures piston-to-deck height, and valve protrusion. Ergonomic design ensures effortless operation for pros and DIYers alike.
• Industrial-Grade Durability for Demanding Environments - Crafted from ​hardened steel and aluminum alloy for extreme conditions. Sealed, dustproof dial head with a tempered glass lens for scratch-resistant clarity. ​Reinforced aluminum housing and shock-absorbing base to prevent deformation. ​Laser-etched scales and corrosion-resistant components for precision that outlasts daily wear
