5in Three-jaw Chuck Milling Machine Indexing Head,for Milling Engineering Indexing Tools,Vertical and Horizontal Indexer

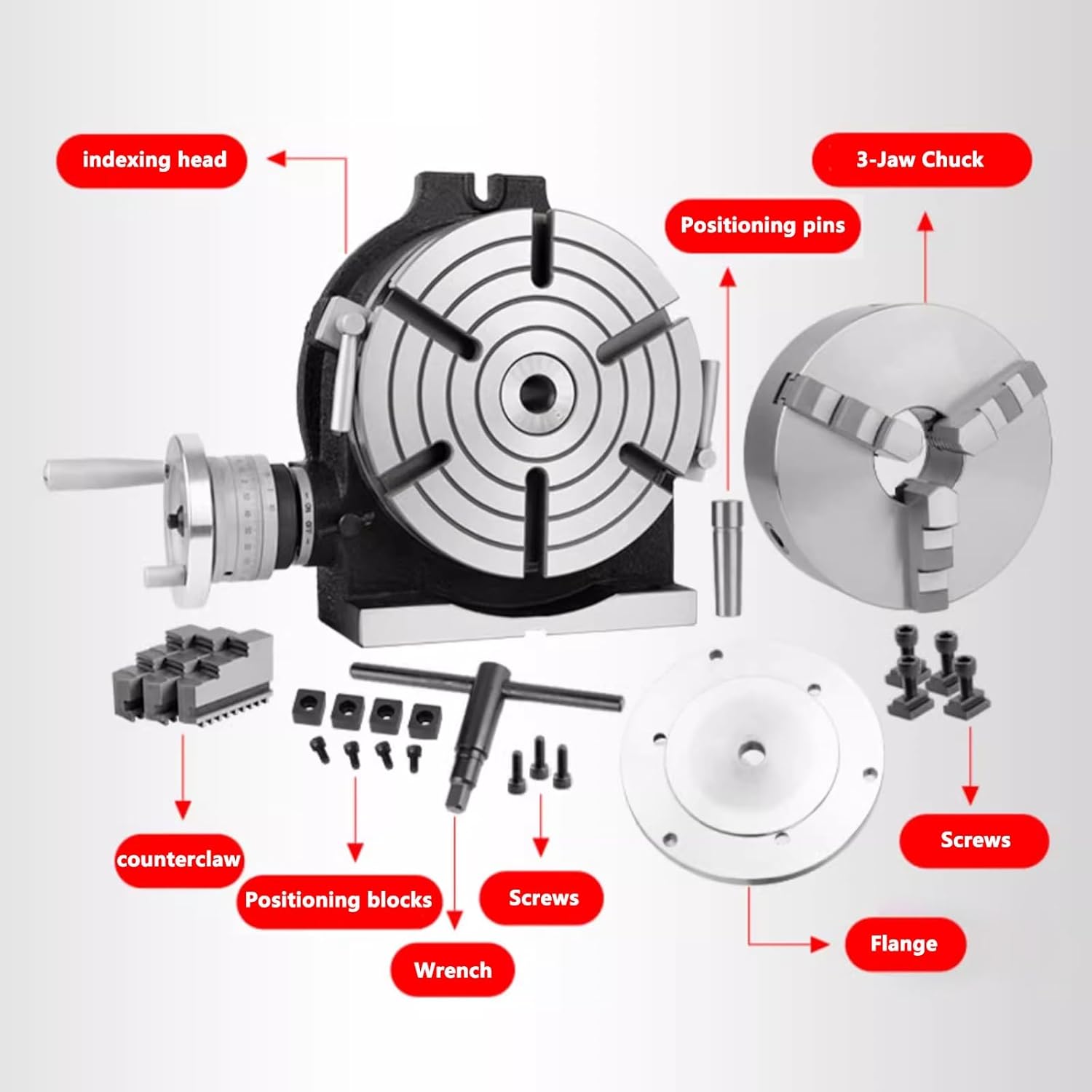

Cast iron material ensures long time useSuitable for metal and wood mold processingCan be used horizontally and vertically, very convenientEquipped with a variety of accessories to make machining operations easierThe indexing head is a machine tool accessory installed on the milling machine for dividing the workpiece into any equal parts. Using the indexing scale ring and vernier, positioning pin and indexing disk and exchange gear, the workpiece mounted between the top or on the chuck is divided into any angle, and the circumference can be divided into any part, which can assist the machine tool to carry out the machining of all kinds of grooves, spur gears, helical spur gears, helical cams and so on by using various kinds of different shapes of cutting tools. Product SpecificationsCenter height: 100mm/4inChuck Diameter: 125mm/5in Chuck type: 3-jaw chuckJaw Clamping Range: 2-40mm/0.07-1.57inReverse Jaw Clamping Range: 38-110mm/1.5-4.3inWeight: 20kg/44lbPackage Contents1 x Indexing head + all accessories includedNote: The size is measured manually, there will be errors, please refer to the actual size.Due to the different screen display, there is a reasonable color difference, please prevail in kind.Please feel free to contact us if you do not understand or have any questions about this product. We will reply within 24 hours, we are committed to customer satisfaction.

• RELIABLE MATERIAL: Our rotary tables are made of FC30 cast iron, which is extremely wear-resistant and has a high hardness surface that prevents scratches and is resistant to abrasion, ensuring a long service life. It is your ideal partner for long-term use.
• MANUAL RAPID ROTATION: Our indexing head is equipped with a quick indexing device, after quickly rotating to the specified position, you can use the precision indexing knob to accurately index, which can improve work efficiency.
• PRECISE CONTROL: The milling machine rotary table is operated by a handwheel, which is clearly graduated on both the handwheel and the table for precise measurements. Fully compliant with the requirements of intuitive operation, even the smallest rotations can be precisely controlled.
• HORIZONTAL OR VERTICAL USE: The headstock of the milling machine indexing head supports horizontal or vertical use, so you can work with different sizes of material by changing its angle. It improves the ease of operation.
• WIDE RANGE OF USE: used on milling machines, grinding machines, drilling machines, and planing machines. The indexing head has a rational structural design and reliable quality, and is suitable for simple slitting on milling machines or other specialized machines.
