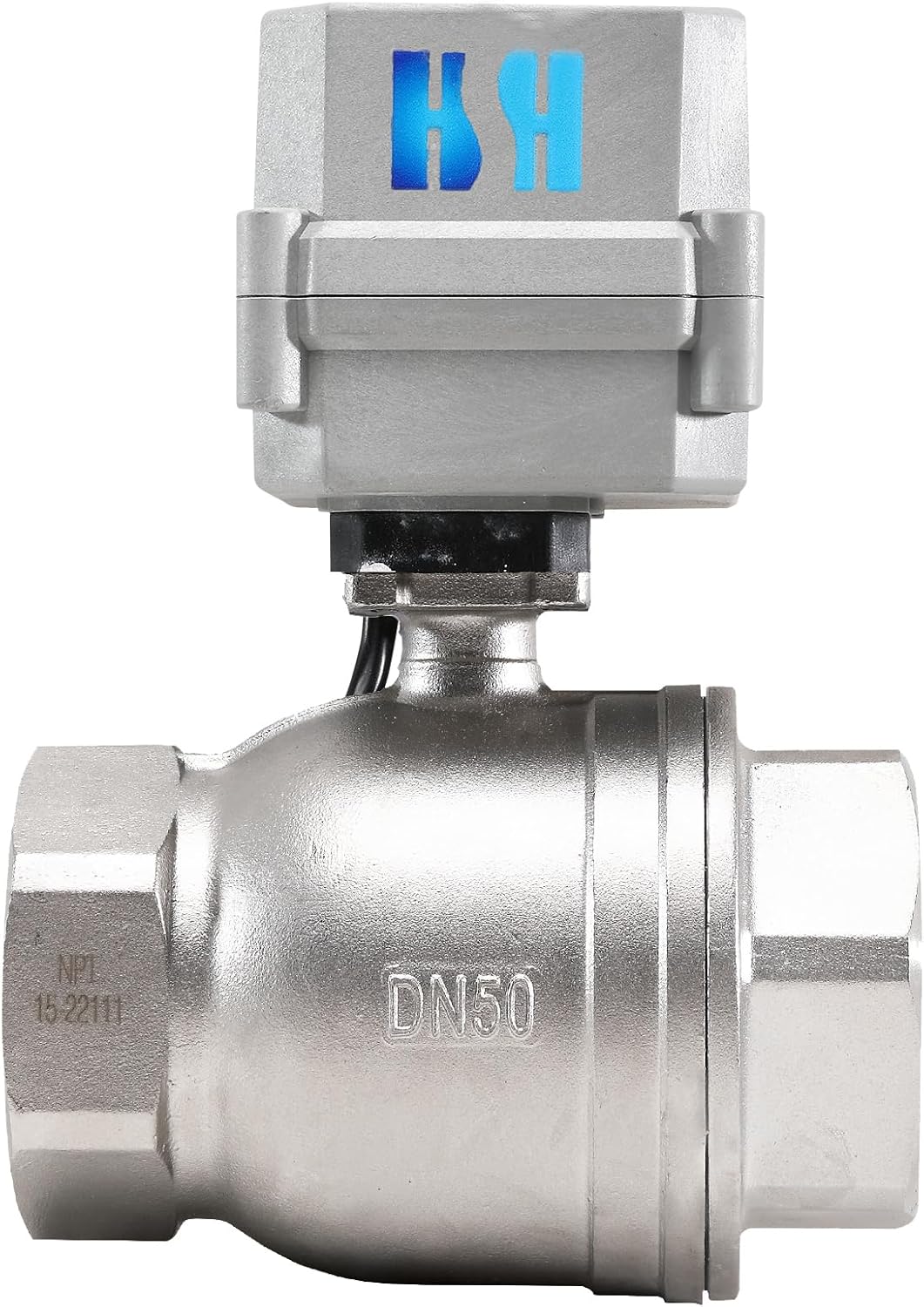

2 inch 110-230VAC Normally Open CF8/Stainless Steel 304 Motorized Electrical Ball Valve With U.S. Plug

Technical Parameters:◎Valve Body Diameter: 2 inch NPT;◎Valve Body Material: Stainless Steel 304;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR202-C (2 Wires Auto Return When Power Off With U.S. 3 Pin Plug);◎Working Voltage: 110-230Vac 50 & 60Hz;◎Working Current: ≤ 1.5 Amps;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤ 12 sec.;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 15 N.m.;◎Cable Length: 1.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: No;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.

• ◎Actuator is Installed With A U.S. Standard 3 Pin Plug, Allowing For Seamless Integration And Easy Connection To Standard Electrical Outlets, Normally Open When Power Off;
• ◎High-Performance 2" NPT Stainless Steel Valve Body With 40mm Full Bore This Robust CF8 Valve Body, Featuring A Full Bore Of 50mm And 2 inch NPT Threading, Is Engineered For Optimal Fluid Control. Its Versatile 2-Way Design Facilitates Efficient Bi-Directional Flow, Offering Unparalleled Flexibility And Performance.
• ◎Versatile Voltage Compatibility: Operates Across 110-230VAC 50&60Hz Experience Seamless Operation Across A Wide Voltage Range, From 110VAC 120VAC To 220VAC. This Broad Compatibility Ensures Reliable Performance In Various Electrical Setups, Making It Ideal For Industrial Applications Requiring Adaptable Power Sources.
• ◎Enhanced Safety With Integrated Limit Switches: Automatically Cuts Off Current Equipped With Advanced Limit Switches, This Valve Provides Automated Current Cutoff Upon Reaching The Desired Position, Enhancing Precision And Preventing Potential Damage. Enjoy Peace Of Mind With Enhanced Safety Features.
• ◎Fail-Safe Operation With Built-In Capacitor: Ensures Automatic Return To Original Position Experience Uninterrupted Operation With The Built-In Capacitor, Which Ensures Fail-Safe Return To The Original Position During Power Failures. This Intelligent Design Prioritizes System Reliability And User Convenience.
