11.8inch Rotary Cutting-off Grinding Machine Pin Cutting Machine for Hardware Processing Workshop Workpiece Processing 110V 1100W

Specification Voltage: AC110V/60Hz Power: 1.5HP (1100W) Measuring scale: 11.8"(300mm) Cutting-off wheel size (outsize diameter* inner hole diameter* thickness): 7.09"* 1.26"* 0.04" (180mm*32mm*1mm) Grinding wheel size (outsize diameter*inner hole diameter* thickness): 3.94" *0.79"* 1.97" (100mm*20mm*50mm) Cutting tolerance: ±0.01mm Max cutting ability (Diameter): 0.98"(25mm) Speed of mainshaft: 3600rpm Package Dimensions 27"*19"*22";196pounds

• [Protective Cover] Equipped with an acrylic transparent protective cover, it allows real-time observation of the internal working status, ensures processing accuracy, and guarantees operator safety.
• [Driving Structure] The drive system uses a belt drive for stable and smooth operation, effectively reducing noise, enhancing transmission efficiency, and minimizing motor power loss.
• [Positioner] Equipped with a micrometer positioner with positioning holes, it enables fast sliding and precise positioning for cutting materials to the required length, making operation simple and convenient while improving work efficiency.
• [Grinding Wheel] This machine adopts a white corundum grinding wheel, which maximizes workpiece protection, ensures high machining accuracy, and prevents the production of harmful gases. Grinding wheel size (outsize diameter*inner hole diameter*thickness): 3.94"*0.79"*1.97"(100mm*20mm*50mm)

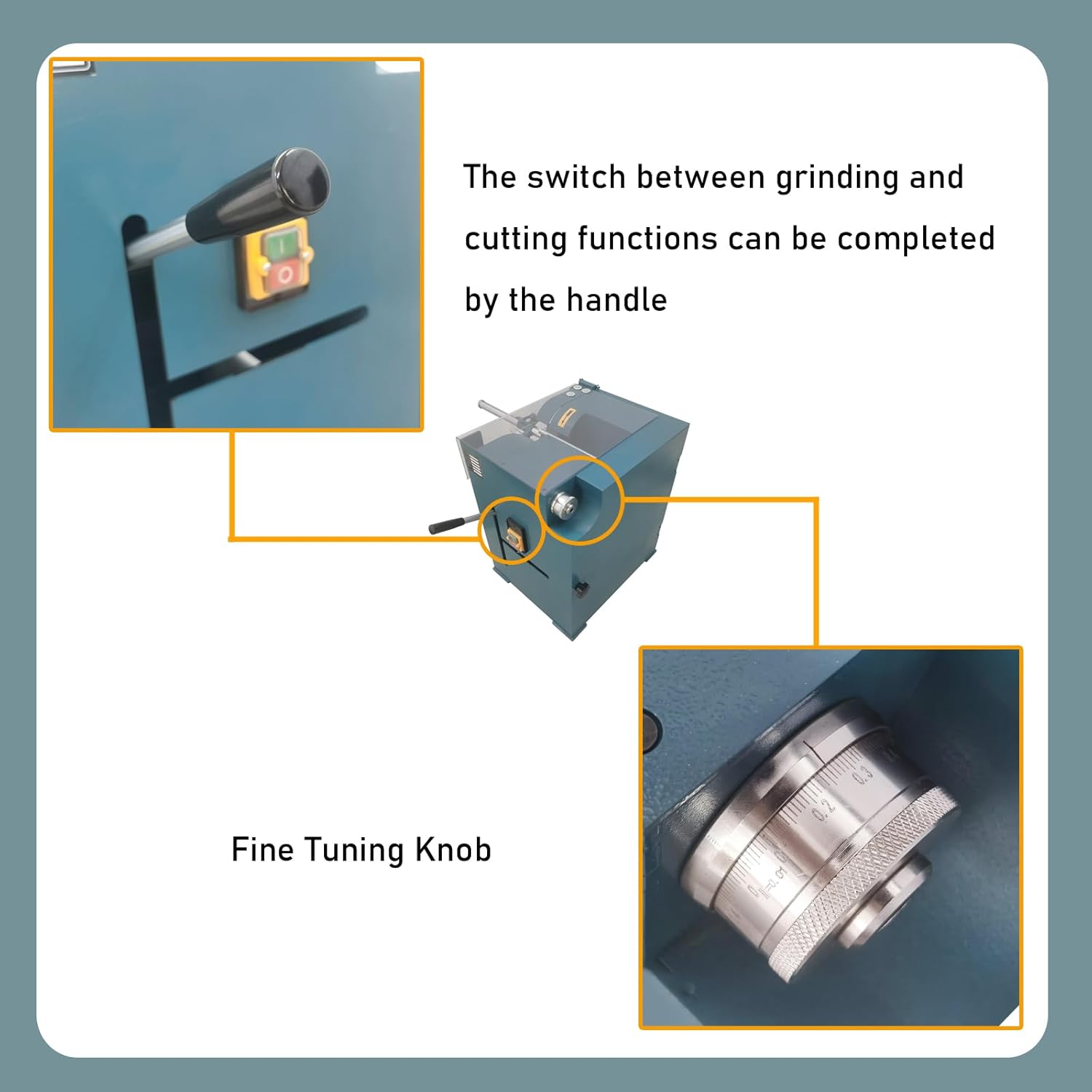

• [Fine Tuning Knob and Discharge Outlet] The grinding wheel fine-tuning knob enables precise forward and backward adjustment of the grinding wheel, extending its service life and improving grinding accuracy. The waste discharge outlet timely removes powder and debris generated during processing, ensuring a clean working environment and stable machine operation.
